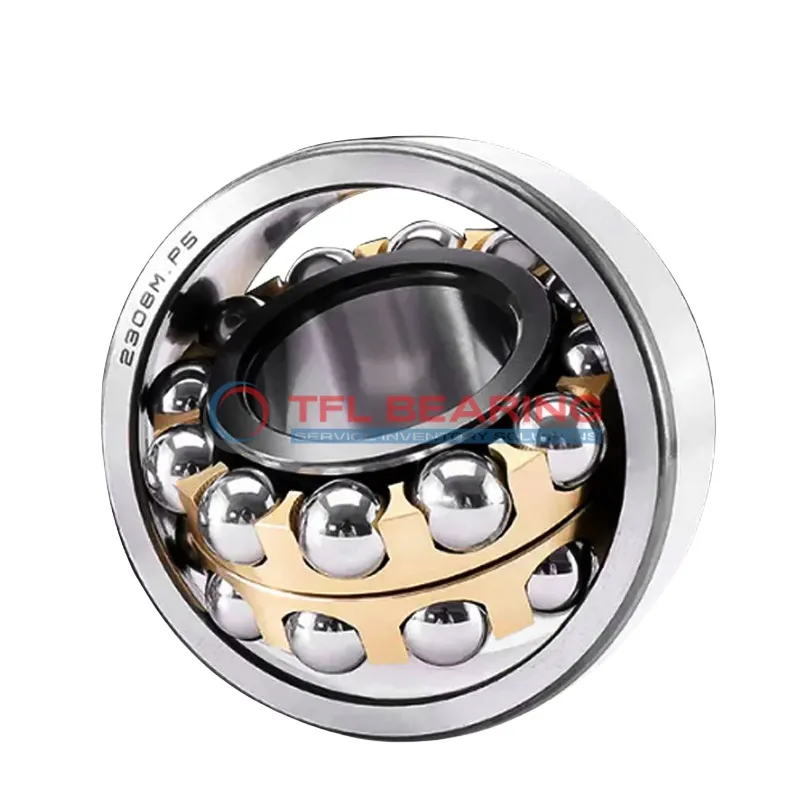

Self Aligning Ball Bearings 1222-K-M-C3

Brand: TFL Bearing Interchangeable: SKF 1222-K-M-C3 110 mm × 200 mm × 38 mm Metric Open
Part number: 1222-K-M-C3
Self Aligning Ball Bearings 1222-K-M-C3
In Stock
US$397.50 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia110 mm
Bore Dia Tolerance-0.02mm to 0
Outer Dia200 mm
Outer Dia Tolerance-0.03mm to 0
Width38 mm
Width Tolerance-0.2mm to 0
External Diameter On Inner Ring140.35 mm
Internal Diameter On Outer Ring173.7 mm
Chamfer Dimension2.1 mm
Performance
Dynamic Radial Load19,890 lbf
Static Radial Load8,775 lbf
Temperature Range-30° to 110 °C
Max Speed4,300 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeTaper 1:12
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Radial ClearanceC3
Weight5.15 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialBrass
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 1222-K-M-C3 is a self-aligning ball bearing with a 110mm tapered bore and 200mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 19890 lbf and operates smoothly at speeds up to 4300 RPM.

Its double-row design and open seal type allow for easy lubrication and maintenance, while the brass cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like industrial fans or conveyor systems where misalignment might occur.

Weighing 5.15kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Features

Why Choose 1222-K-M-C3 Bearing for Precision Tasks?

1222-K-M-C3 Bearing features a double-row design with chrome steel rings and balls, ensuring high radial load capacity.
Its dynamic radial load rating of 19890 lbf makes it suitable for demanding industrial applications.
The brass cage maintains ball alignment, reducing friction and extending operational life.
With a maximum speed of 4,300 rpm, it offers reliable performance in various conditions.

Application

Common Applications of 1222-K-M-C3 Bearing
In industrial settings, 1222-K-M-C3 Bearing is widely used in machinery like conveyors and fans, where its self-aligning feature compensates for minor misalignments. The double-row design ensures reliable performance under radial loads.

Where Is 1222-K-M-C3 Bearing Used?
You’ll often find 1222-K-M-C3 Bearing in automotive applications such as gearboxes, where its tapered bore provides a secure fit. The brass cage adds durability, making it suitable for high-vibration environments.

Built for Heavy-Duty Use: 1222-K-M-C3 Bearing
This bearing excels in heavy machinery like crushers, thanks to its chrome steel construction and C3 radial clearance. The lubricated design ensures smooth operation even under demanding conditions.

Automotive vs Industrial: Applications of 1222-K-M-C3 Bearing
In automotive systems, 1222-K-M-C3 Bearing handles radial loads in transmissions, while in industrial gear, it supports rotating shafts. Its versatility makes it a go-to choice across sectors.

Perfect Fit for Automation: 1222-K-M-C3 Bearing
For robotic arms and automated systems, 1222-K-M-C3 Bearing offers precise movement with minimal friction. The open seal type allows for easy maintenance in continuous operation setups.
