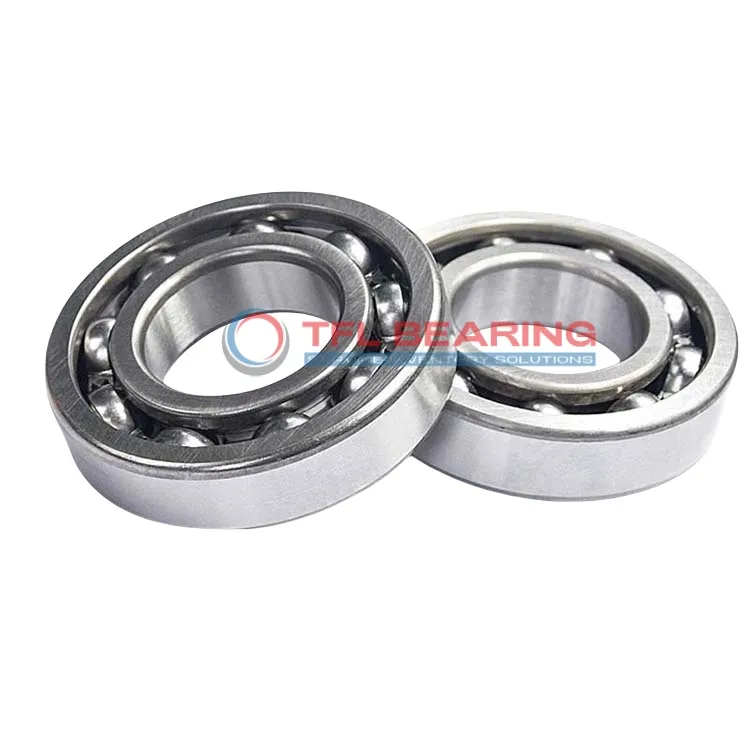

Single Row Deep Groove Ball Bearings With Filling Slots 206

Single Row Deep Groove Ball Bearings With Filling Slots 206

The 206 is a single-row deep groove ball bearing with a 30mm bore and 62mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 4699 lbf and spins efficiently at speeds up to 12,000 RPM.

Its open design with filling slots allows for easy lubrication, while the nylon cage reduces friction for smoother operation. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical option for replacements. Suitable for applications like electric motors or conveyor systems where radial loads are common.

Weighing 0.21kg, it’s a lightweight yet durable choice. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 206
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 16 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Tolerance Class P0
  • Radial Clearance Grade No CN
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 4699 lbf
  • Static Radial Load 3664 lbf
  • Temperature Range -30° to 120 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 12000 rpm
  • Weight 0.21 kg
  • Price（$） 9.5
Single Row Deep Groove Ball Bearings With Filling Slots 206 dimension drawing
Download DWG Download PDF

Features

Performance Features of 206 Bearing

206 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 4699 lbf, ensuring reliable performance in various applications.

The nylon cage in 206 Bearing helps reduce friction and noise during operation.
This design also contributes to smoother performance at high speeds, up to 12,000 rpm.

206 Bearing operates efficiently in temperatures ranging from -30° to 120 °C.
Its robust construction makes it suitable for diverse industrial environments.

With a width of 16 mm, 206 Bearing is compact yet durable.
Its filling slots design enhances lubrication retention, improving longevity.

206 Bearing meets RoHS and REACH compliance standards.
This ensures it adheres to environmental and safety regulations.

Application

Industrial Uses of 206 Bearing
206 Bearing is commonly used in conveyor systems and machine tools, where its deep groove design handles radial loads efficiently. The open seal type allows for easy lubrication, making it suitable for dusty or high-temperature environments.

Where Is 206 Bearing Used?
You’ll often find 206 Bearing in automotive applications like electric motors and pumps, thanks to its reliable performance and metric sizing. Its nylon cage reduces friction, ensuring smooth operation even at higher speeds.

Built for Versatility: 206 Bearing
In household appliances like washing machines, 206 Bearing provides quiet and durable performance. The chrome steel construction ensures longevity, even with frequent use.

Automotive vs Industrial: Applications of 206 Bearing
While 206 Bearing excels in car alternators, it’s equally at home in industrial fans due to its balanced load capacity. The P0 tolerance class guarantees consistent performance across different settings.

Key Fields for 206 Bearing
Medical devices like centrifuges benefit from 206 Bearing’s precision and low maintenance needs. Its wide temperature range makes it adaptable to various operational conditions.
