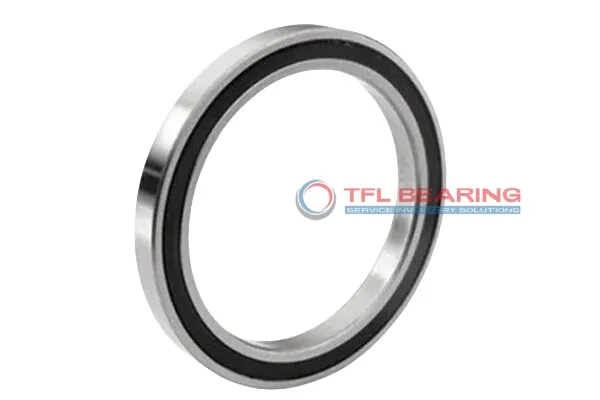

Constant Section (CS) Bearings JG220CP0

Constant Section (CS) Bearings JG220CP0

The JG220CP0 is a sealed, thin-section ball bearing with a 22″ bore and 24″ outer diameter, crafted from durable chrome steel. Its slim 1″ width makes it ideal for space-constrained applications while handling radial loads up to 13685 lbf.

Designed as a single-row bearing, it features a brass cage for smooth operation and comes pre-lubricated for easy use. The sealed design keeps contaminants out, extending its lifespan in harsh environments.

This model is interchangeable with KAYDON bearings, offering a reliable alternative for replacements. Suitable for machinery requiring precise radial load support, such as robotics or medical equipment.

Weighing 16.8 lbs, it operates smoothly in temperatures from -30°C to 110°C. Compliant with RoHS standards, ensuring safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number JG220CP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Bore Dia 22"
  • Outer Dia 24"
  • Width 1"
  • Width Tolerance +.000 –.010"
  • Thin Section Bearings Type Reali-Slim Sealed Bearings
  • Series JG 1" x 1"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 22.554"
  • Internal Diameter On Outer Ring (Small Side Face) 23.602"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 13685 lbf
  • Static Radial Load 37760 lbf
  • Temperature Range -30°C to 110 °C
  • ISO Radial 17486 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 16.8 lbs
  • price（$） 2133.84
Constant Section (CS) Bearings JG220CP0 dimension drawing
Download DWG Download PDF

Features

Performance Features of JG220CP0 Bearing

JG220CP0 Bearing is constructed with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 13685 lbf, making it suitable for demanding applications.

The brass cage ensures smooth operation and reduces wear, enhancing the bearing’s longevity.
With a sealed design, JG220CP0 Bearing is protected from contaminants, ensuring reliable performance.

JG220CP0 Bearing operates within a temperature range of -30°C to 110°C, adapting to various environments.
Its ABEC-1 tolerance class provides consistent precision for smooth and efficient operation.

Application

Industrial Uses of JG220CP0 Bearing
JG220CP0 Bearing is commonly used in industrial machinery where space is limited but high radial load capacity is needed, such as in robotic arms and conveyor systems. Its thin-section design makes it ideal for compact applications without sacrificing strength.

Where Is JG220CP0 Bearing Used?
You’ll often find JG220CP0 Bearing in automation equipment, particularly in precision machinery like CNC routers and packaging systems. The sealed design helps keep contaminants out, ensuring long-lasting performance in dusty environments.

Built for Heavy-Duty Use: JG220CP0 Bearing
JG220CP0 Bearing handles heavy radial loads effortlessly, making it a go-to choice for construction equipment like crane rotators. The brass cage adds durability, especially in high-vibration settings.

Automotive vs Aerospace: Applications of JG220CP0 Bearing
In automotive applications, JG220CP0 Bearing supports steering columns and gearbox components, while in aerospace, it’s used in control mechanisms due to its reliability. The inch sizing ensures compatibility with many North American systems.

Perfect Fit for Automation: JG220CP0 Bearing
JG220CP0 Bearing shines in automated production lines, particularly in robotic welders and assembly systems. Its consistent performance and sealed construction reduce maintenance needs, keeping downtime to a minimum.
