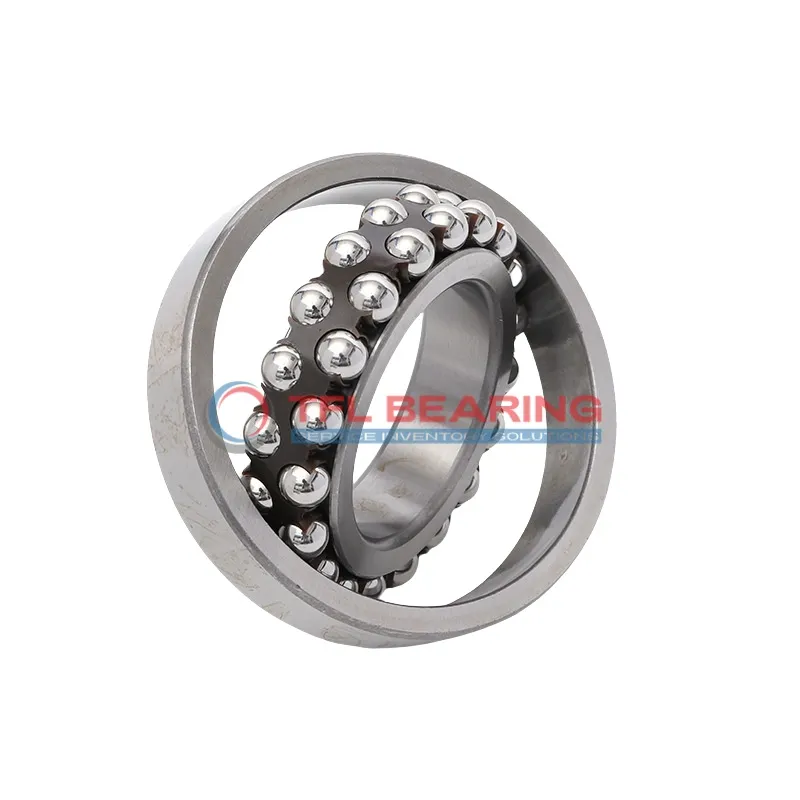

Self Aligning Ball Bearings 1202 P/6

Brand: TFL Bearing Interchangeable: SKF 1202 P/6 15 mm × 35 mm × 11 mm Metric Open
Part number: 1202 P/6
Self Aligning Ball Bearings 1202 P/6
In Stock
US$15.07 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia15 mm
Bore Dia Tolerance-0.008mm to 0
Outer Dia35 mm
Outer Dia Tolerance-0.011mm to 0
Width11 mm
Width Tolerance-0.12mm to 0
External Diameter On Inner Ring21.15 mm
Internal Diameter On Outer Ring28.9 mm
Chamfer Dimension0.6 mm
Performance
Dynamic Radial Load1,667 lbf
Static Radial Load396 lbf
Temperature Range-30° to 110 °C
Max Speed28,000 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeCylindrical
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Radial ClearanceCN
Weight0.049 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialNylon
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 1202 P/6 is a self-aligning ball bearing with a compact size of 15mm by 35mm by 11mm, crafted from durable chrome steel. It handles radial loads up to 1667 lbf and spins smoothly at speeds up to 28,000 RPM.

Its double-row design and open seal type allow for easy lubrication and maintenance, while the nylon cage reduces friction for quieter operation. The bearing operates well in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like electric motors or conveyor systems where alignment flexibility is needed.

Weighing just 0.049kg, it’s lightweight yet robust for its size. Compliant with RoHS and REACH standards for safe use.

Features

How Is 1202 P/6 Bearing Engineered for Reliability?

1202 P/6 Bearing features a double-row design with chrome steel rings and balls, ensuring strong radial load capacity.
Its dynamic radial load rating of 1667 lbf makes it suitable for various industrial applications.
The nylon cage helps maintain smooth operation while reducing noise and vibration.
With a maximum speed of 28,000 rpm, it offers both durability and high-speed performance.

Application

Industrial Uses of 1202 P/6 Bearing
1202 P/6 Bearing is commonly used in conveyor systems, where its self-aligning feature helps accommodate minor misalignments. The double-row design ensures stable performance even under varying radial loads.

Where Is 1202 P/6 Bearing Used?
In automotive applications, 1202 P/6 Bearing fits well in gearboxes and pumps, thanks to its durable chrome steel construction. Its metric sizing makes it a versatile choice for various vehicle models.

Perfect Fit for Automation: 1202 P/6 Bearing
For robotic arms and automated machinery, 1202 P/6 Bearing offers smooth operation with its nylon cage reducing friction. The open seal design allows for easy lubrication, extending its service life.

Medical vs Industrial: Where 1202 P/6 Bearing Excels
In medical devices like centrifuges, 1202 P/6 Bearing provides reliable performance due to its precise radial load handling. Industrial fans also benefit from its high-speed capability and low maintenance needs.
