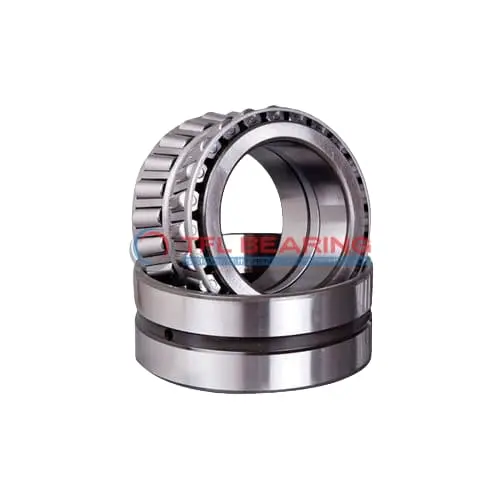

535-533D TDO (Two-Row Double-Outer Race) (Imperial)

535-533D TDO (Two-Row Double-Outer Race) (Imperial)

The 535-533D is a double-row tapered roller bearing with a 1.75″ bore and 4.375″ outer diameter, built from sturdy chrome steel. It handles combined loads up to 67400 lbf and is designed for long-lasting performance.

Its open design allows for easy lubrication, while the steel cage ensures smooth operation even under heavy loads. The bearing works well in temperatures from -30°C to 110°C.

This model is part of the 535 series, featuring standard cups and a robust double-row construction. Ideal for industrial machinery or automotive applications where combined radial and thrust loads are common.

Weighing 8.24 lb, it’s a solid choice for demanding environments. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 535-533D
  • Brand TFL
  • Size 1.75" x 4.375" x 1.455"
  • Bore Dia 1.75"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.375"
  • Outer Dia Tolerance +0.001" to 0
  • Double Cup Width 2.5"
  • Double Cup Width Tolerance +0.003" to -0.01
  • Cone Width 1.455"
  • Cone Width Tolerance +0.002" to -0.01
  • Bearing Width Across Cups 3.125"
  • Bearing Width Across Cups Tolerance +0.008" to 0
  • Cup Backface ToClear Radius 0.06"
  • Cone Backface Backing Diameter 2.36"
  • Cup Frontface Backing Diameter 3.96"
  • Cage Cone Backface Clearance 0.08"
  • Dynamic Radial Load 67400 lbf
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 535
  • Cup Part Number 533D
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Cups Type Standard
  • Series 535
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Rating(One Row 90 Million Revolutions) 10000 lbf
  • Dynamic Thrust Rating(90 Million Revolutions) 5090 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions) 17500 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 8.24 lb

Features

Performance Features of 535-533D Bearing

535-533D Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 67,400 lbf, ensuring reliable performance in heavy-duty applications.

The double-row tapered roller design enhances stability and load distribution.
This construction allows 535-533D Bearing to handle both radial and thrust loads efficiently.

With a temperature range of -30° to 110°C, it performs well in various environments.
The steel cage maintains roller alignment, reducing wear and extending service life.

535-533D Bearing requires lubrication but offers standard radial clearance options.
Its robust design makes it suitable for demanding industrial applications.

Application

Industrial Uses of 535-533D Bearing
535-533D Bearing is commonly used in heavy machinery like construction equipment, where its double-row design handles combined radial and thrust loads effortlessly. The chrome steel construction ensures durability even in demanding environments.

In automotive applications, 535-533D Bearing fits well in truck wheel hubs, providing reliable performance under varying load conditions. Its inch sizing makes it a preferred choice for North American vehicle models.

For industrial conveyor systems, 535-533D Bearing’s tapered roller design offers smooth operation and easy maintenance. The open seal type allows for straightforward lubrication, extending its service life.

Where Is 535-533D Bearing Used?
535-533D Bearing is ideal for agricultural machinery, such as tractors, where its robust design withstands rough terrain and heavy loads. The steel cage adds extra strength to the assembly.

In mining equipment, 535-533D Bearing’s high dynamic radial load capacity ensures reliable performance in harsh conditions. Its standard radial clearance makes it adaptable to various operational needs.

Built for Heavy-Duty Use: 535-533D Bearing
535-533D Bearing excels in forestry equipment, where its combined load handling capability is crucial. The tapered rollers distribute stress evenly, reducing wear over time.

For railway applications, 535-533D Bearing provides stability and longevity in axle boxes. Its ABEC-1 rating ensures consistent performance without unnecessary precision costs.

Automotive vs Aerospace: Applications of 535-533D Bearing
In automotive systems, 535-533D Bearing is often found in differentials, where its double-row design manages high torque efficiently. The inch measurements align with standard repair parts.

For aerospace ground support equipment, 535-533D Bearing’s temperature range suits outdoor operations. However, its weight makes it less ideal for airborne applications.
