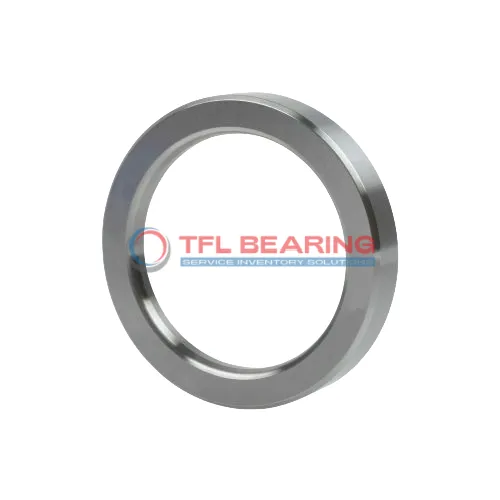

Angle Rings For Cylindrical Roller Bearings HJ 2256 EC

Angle Rings For Cylindrical Roller Bearings HJ 2256 EC

The HJ 2256 EC angle ring is designed for cylindrical roller bearings, with a 280mm bore and 355.2mm outer diameter. Made from sturdy chrome steel, it operates reliably in temperatures from -30°C to 110°C.
Its 18mm width on the inner ring side ensures a secure fit, while the 35.5mm overall width provides stability. The chamfered edges (5mm radial direction) make installation smoother.
This angle ring is interchangeable with SKF models, offering a practical replacement option. It’s commonly used in heavy machinery where precise alignment is needed.
Weighing 6.75kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s safe for industrial use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HJ 2256 EC
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 280 mm
  • Bore Dia Tolerance -0.035mm to 0
  • Outer Dia 355.2 mm
  • Outer Dia Tolerance -0.04mm to 0
  • Width Contacting Inner Ring Side Face 18 mm
  • Width 35.5 mm
  • Width Tolerance -0.12mm to 0
  • Chamfer Length Radial Direction (Angle Rings)(r3,4)(min.) 5 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Temperature Range -30° to 110 °C
  • Material Chrome Steel
  • RoHS Compliant
  • REACH Compliant
  • Weight 6.75 kg
Angle Rings For Cylindrical Roller Bearings HJ 2256 EC dimension drawing
Download DWG Download PDF

Features

Performance Features of HJ 2256 EC Bearing
HJ 2256 EC Bearing is crafted from chrome steel, offering durability and resistance to wear in demanding applications.
Its precise bore and outer diameter tolerances ensure a perfect fit, enhancing operational stability.
The design includes a chamfer length of 5 mm, reducing stress concentrations and prolonging service life.
With a temperature range of -30° to 110°C, HJ 2256 EC Bearing performs reliably in varied environments.
The 35.5 mm width provides ample support, making it suitable for heavy-duty cylindrical roller bearings.
Its compliance with RoHS and REACH standards ensures environmental and safety considerations are met.

Application

Industrial Uses of HJ 2256 EC Bearing
HJ 2256 EC Bearing is commonly used in heavy machinery, such as industrial gearboxes and large conveyor systems, where its cylindrical roller design handles high radial loads efficiently. The chrome steel construction ensures durability even in demanding environments.
Where Is HJ 2256 EC Bearing Used?
You’ll often find HJ 2256 EC Bearing in wind turbines and mining equipment, where its robust design and precise tolerances are essential for reliable performance. Its metric sizing makes it a versatile choice for global applications.
Built for Heavy-Duty Use: HJ 2256 EC Bearing
HJ 2256 EC Bearing excels in applications like steel mills and paper processing machines, where consistent performance under heavy loads is critical. The wide temperature range also makes it suitable for varied operating conditions.
Automotive vs Aerospace: Applications of HJ 2256 EC Bearing
In automotive systems, HJ 2256 EC Bearing supports large drivetrain components, while in aerospace, its precision and strength are valued for landing gear mechanisms. The interchangeable design with SKF simplifies maintenance and replacements.
Perfect Fit for Automation: HJ 2256 EC Bearing
HJ 2256 EC Bearing is ideal for automated production lines, where its high load capacity and smooth operation reduce downtime. The stainless steel cage adds an extra layer of reliability for continuous use.
