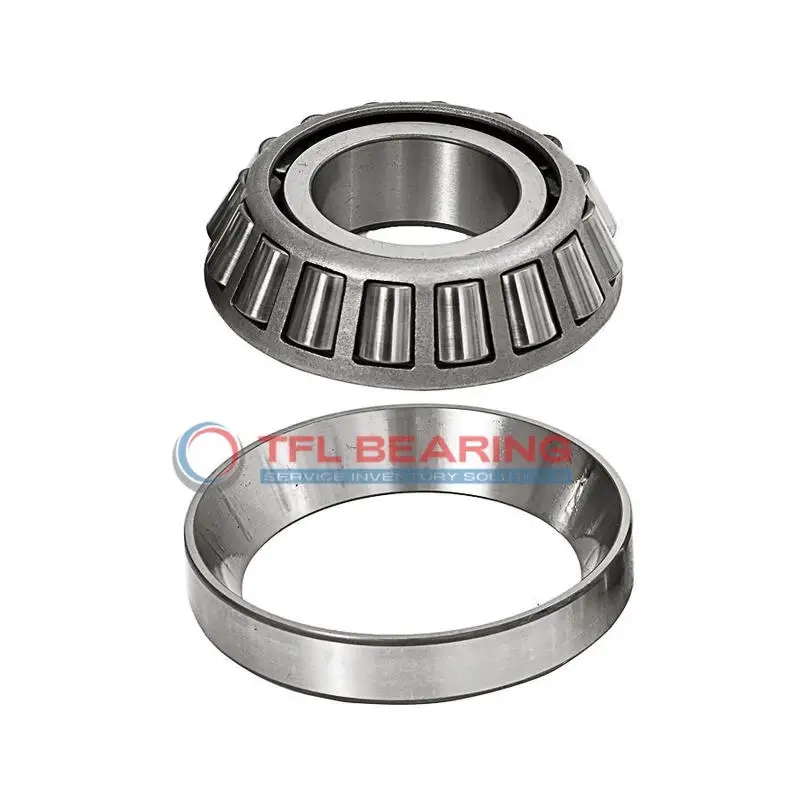

TS (Single Row Tapered Roller Bearings) (Metric) 32211

The HM89446-HM89410-B is a single-row tapered roller bearing with a flange, measuring 1.375″ x 3″ x 1.125″. Made from durable chrome steel, it handles combined loads up to 24800 lbf radially and 6020 lbf thrust.

Its flanged cup design keeps it securely in place, while the open seal allows for easy lubrication. The bearing operates smoothly in temperatures from -30°C to 110°C.

Interchangeable with Timken bearings, it’s a practical choice for replacements. Ideal for heavy-duty applications like axles or gearboxes where combined loads are common.

Weighing 1.5lb, it’s sturdy yet manageable. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 32211
Brand TFL
Interchangeable Brand Timken
System of Measurement Metric
Type Bearing
Sizes 55 mm x 100 mm x 26.75 mm
Cone Part Number X32211M
Cup Part Number Y32211M
Bore Dia 55 mm
Bore Dia Tolerance -0.015mm to 0
Outer Dia 100 mm
Outer Dia Tolerance -0.018mm to 0
Cone Width 25 mm
Cone Width Tolerance -0.15mm to 0
Cup Width 21 mm
Cup Width Tolerance -0.2mm to 0
Width 26.75 mm
Width Tolerance +0.2mm to 0
Cone Backface ToClear Radius 2.03 mm
Cup Backface ToClear Radius 1.52 mm
Cone Frontface Backing Diameter 62 mm
Cone Backface Backing Diameter 65 mm
Cup Frontface Backing Diameter 95.5 mm
Cup Backface Backing Diameter 89.92 mm
Cage Cone Frontface Clearance 3.6 mm
Cage Cone Backface Clearance 1.5 mm
Effective Center Location -4.1 mm
Bearing Type Roller
Roller Bearing Type Tapered
For Load Direction Combined
Construction Single Row
Seal Type Open
Cups Type Standard
Series 32211M
Ring Material Chrome Steel
Roller Material Chrome Steel
Cage Material Steel
Dynamic Radial Load 32175 lbf
Static Radial Load 31725 lbf
Dynamic Radial Rating(90 Million Revolutions)(C90) 8347.5 lbf
Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 5782.5 lbf
Lubrication Required
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Standard (Available in C3/C4/C5)
RoHS Compliant
REACH Compliant
Weight 1.76 lb

Features

How Is HM89446-HM89410-B Bearing Engineered for Reliability?

HM89446-HM89410-B Bearing features a single row tapered roller design, ideal for handling combined loads with ease.
Its chrome steel construction ensures durability and resistance to wear in demanding applications.

The flanged cup design provides secure mounting, enhancing stability during operation.
With a dynamic radial load capacity of 24,800 lbf, it delivers consistent performance under heavy loads.

HM89446-HM89410-B Bearing operates efficiently within a temperature range of -30° to 110°C.
Its standard radial clearance options allow for flexibility in various industrial applications.

Application

Industrial Uses of HM89446-HM89410-B Bearing
HM89446-HM89410-B Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. The flanged cup adds stability, making it suitable for applications with misalignment risks.

In automotive systems, HM89446-HM89410-B Bearing supports wheel hubs and drivetrain components, ensuring smooth performance under varying loads. Its inch sizing makes it a fit for many North American vehicle models.

For industrial conveyors, HM89446-HM89410-B Bearing’s chrome steel construction provides durability in high-load scenarios. The open design allows for easy lubrication, extending service life in demanding environments.

What Makes HM89446-HM89410-B Bearing a Preferred Choice?
HM89446-HM89410-B Bearing is often chosen for mining equipment due to its robust design and ability to handle radial and thrust loads. The steel cage ensures reliable performance even in dusty or harsh conditions.

In power transmission systems, HM89446-HM89410-B Bearing’s precise tolerances help maintain alignment and reduce wear. Its compatibility with Timken equivalents makes it a versatile option for maintenance and replacements.
