241/600 ECA/W33 Double Row Spherical Roller Bearing

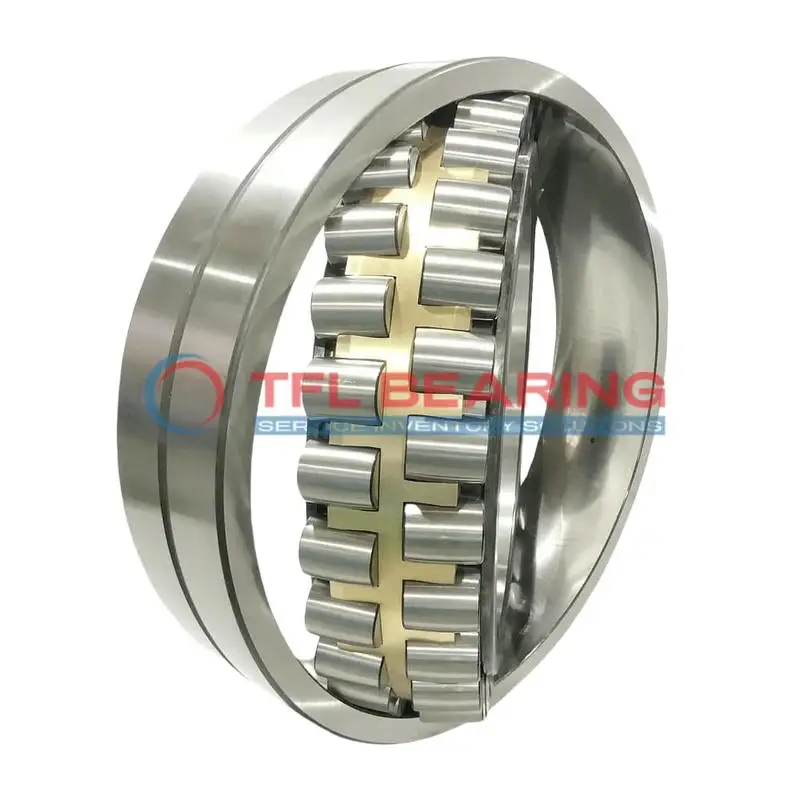

241/600 ECA/W33 Double Row Spherical Roller Bearing

The 241/600 ECA/W33 is a double-row spherical roller bearing with a large 600mm bore and 980mm outer diameter, built from sturdy chrome steel. It handles heavy combined loads up to 3039867 lbf and runs smoothly at speeds up to 300 RPM.

Its brass cage and open design allow for easy lubrication, while the spherical rollers accommodate misalignment. The bearing operates in temperatures from -30°C to 200°C, making it versatile for tough conditions.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Ideal for heavy machinery like crushers or industrial gearboxes where high radial loads are present.

Weighing 1100kg, it’s a robust unit designed for long-term performance. Compliant with RoHS and REACH standards for safe industrial use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 241/600 ECA/W33
  • Brand TFL
  • Interchangeable SKF
  • Size 600 x 980 x 375 mm
  • Bore Dia 600 mm
  • Bore Dia Tolerance -0.05mm to 0
  • Outer Dia 980 mm
  • Outer Dia Tolerance -0.1mm to 0
  • Width 375 mm
  • Width Tolerance -0.5mm to 0
  • Shoulder Dia Of Inner Ring 702 mm
  • Shoulder/Recess Dia Of Outer Ring 845 mm
  • Width Of Lubrication Groove 22.3 mm
  • Diameter Of Lubrication Hole 12 mm
  • Chamfer Dimension min.7.5 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 3039867 lbf
  • Static Radial Load 5305491 lbf
  • Max Speed 300 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 1100 kg

Features

Performance Features of 241/600 ECA/W33 Bearing

241/600 ECA/W33 Bearing is built with chrome steel rings and rollers, offering robust resistance to combined loads.
Its dynamic radial load capacity reaches 3,039,867 lbf, ensuring dependable performance in heavy-duty applications.

The brass cage maintains roller alignment, reducing friction and enhancing longevity.
With a maximum speed of 300 rpm, it balances durability and operational efficiency.

241/600 ECA/W33 Bearing operates in temperatures from -30° to 200°C, suitable for varied industrial environments.
Its double-row spherical design accommodates misalignment, improving reliability under challenging conditions.

The lubrication groove and hole design ensure consistent grease distribution, reducing maintenance needs.
This bearing is ideal for applications requiring high load capacity and extended service life.

Application

Industrial Uses of 241/600 ECA/W33 Bearing
241/600 ECA/W33 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles high radial and axial loads effortlessly. The brass cage ensures smooth operation even under extreme conditions.

In wind turbine applications, 241/600 ECA/W33 Bearing’s spherical roller design accommodates misalignment, making it ideal for the main shaft. Its large bore size and robust construction suit the demanding environment of renewable energy systems.

For mining equipment, 241/600 ECA/W33 Bearing’s chrome steel rollers provide durability in abrasive conditions. The lubrication groove and hole design simplify maintenance, reducing downtime in critical operations.

Where Is 241/600 ECA/W33 Bearing Used?
You’ll often spot 241/600 ECA/W33 Bearing in paper mill machinery, where its combined load capacity supports heavy rollers. The wide temperature range ensures reliable performance in both hot and cold processing stages.

In steel plants, 241/600 ECA/W33 Bearing handles the intense loads of rolling mills. Its metric sizing and interchangeable nature with SKF make it a versatile choice for global industrial applications.

Built for Heavy-Duty Use: 241/600 ECA/W33 Bearing
241/600 ECA/W33 Bearing excels in construction equipment like cranes, where its dynamic load rating ensures stability. The spherical rollers adapt to slight misalignments, prolonging bearing life.

For marine applications, 241/600 ECA/W33 Bearing’s corrosion-resistant materials withstand harsh saltwater environments. The open design allows for easy relubrication, essential for long voyages.

Automotive vs Aerospace: Applications of 241/600 ECA/W33 Bearing
In large commercial vehicles, 241/600 ECA/W33 Bearing supports axle systems with its high static load capacity. The brass cage reduces friction, enhancing fuel efficiency.

For aerospace ground equipment, 241/600 ECA/W33 Bearing’s precision ensures smooth operation in aircraft tow tractors. Its weight and size are balanced for heavy lifting without compromising performance.
