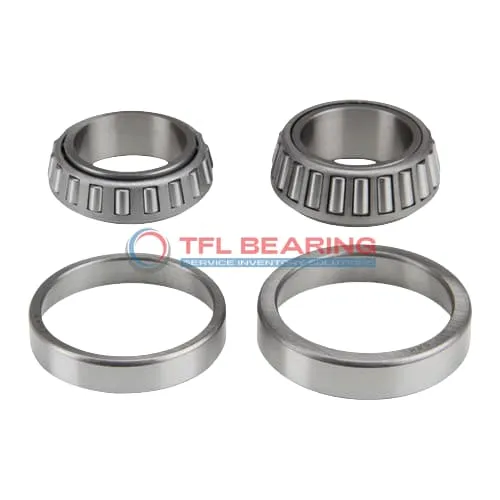

TS (Single Row Tapered Roller Bearings) (Imperial) 575-572A

TS (Single Row Tapered Roller Bearings) (Imperial) 575-572A

The 575-572A is a single-row tapered roller bearing with a 3-inch bore and 5.5111-inch outer diameter, crafted from durable chrome steel. It handles combined loads up to 46500 lbf radially and 8330 lbf thrust, making it suitable for heavy-duty applications.

Its open design allows for easy lubrication, while the steel cage ensures reliable performance. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a practical replacement option. Ideal for use in industrial machinery, gearboxes, or automotive systems where combined loads are common.

Weighing 5.1 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for various environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 575-572A
  • Brand TFL
  • Interchangeable Timken
  • Size 3" x 5.5111" x 1.3879"
  • Bore Dia 3"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 5.5111"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.4212"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.125"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.3879"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 4.17"
  • Cone Backface Backing Diameter 3.62"
  • Cup Frontface Backing Diameter 5.25"
  • Cup Backface Backing Diameter 4.88"
  • Cage Cone Frontface Clearance 0.1"
  • Cage Cone Backface Clearance 0.12"
  • Effective Center Location -0.21"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 575
  • Cup Part Number 572A
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 575
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 46500 lbf
  • Static Radial Load 65400 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 12100 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 8330 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 5.1 lb

Features

Performance Features of 575-572A Bearing

575-572A Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 46,500 lbf, ensuring reliable performance in heavy-duty applications.

The steel cage maintains proper roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in various environmental conditions.

575-572A Bearing requires lubrication, which helps maintain smooth operation over time.
Its standard radial clearance options provide flexibility for different installation needs.

Application

Industrial Uses of 575-572A Bearing
The 575-572A Bearing is commonly used in heavy machinery, such as construction equipment and mining tools, where its tapered roller design handles combined loads effectively. Its chrome steel construction ensures durability in demanding environments.

Where Is 575-572A Bearing Used?
You’ll often find 575-572A Bearing in automotive applications like truck wheel hubs, where its high dynamic radial load capacity keeps things running smoothly. The imperial sizing makes it a straightforward fit for many North American vehicles.

Built for Heavy-Duty Use: 575-572A Bearing
575-572A Bearing excels in industrial gearboxes, thanks to its robust steel cage and tapered rollers. It’s also a reliable choice for agricultural machinery, where consistent performance under heavy loads is essential.

Automotive vs Aerospace: Applications of 575-572A Bearing
In automotive settings, 575-572A Bearing supports wheel assemblies and drivetrains, while its precision makes it suitable for certain aerospace components. The open design allows for easy lubrication, extending its service life.

Key Fields for 575-572A Bearing
575-572A Bearing is ideal for conveyor systems in manufacturing plants, where its tapered rollers manage both radial and thrust loads. The standard radial clearance ensures smooth operation in varied temperature conditions.
