23072 CACK/C08W507 Double Row Spherical Roller Bearing

23072 CACK/C08W507 Double Row Spherical Roller Bearing

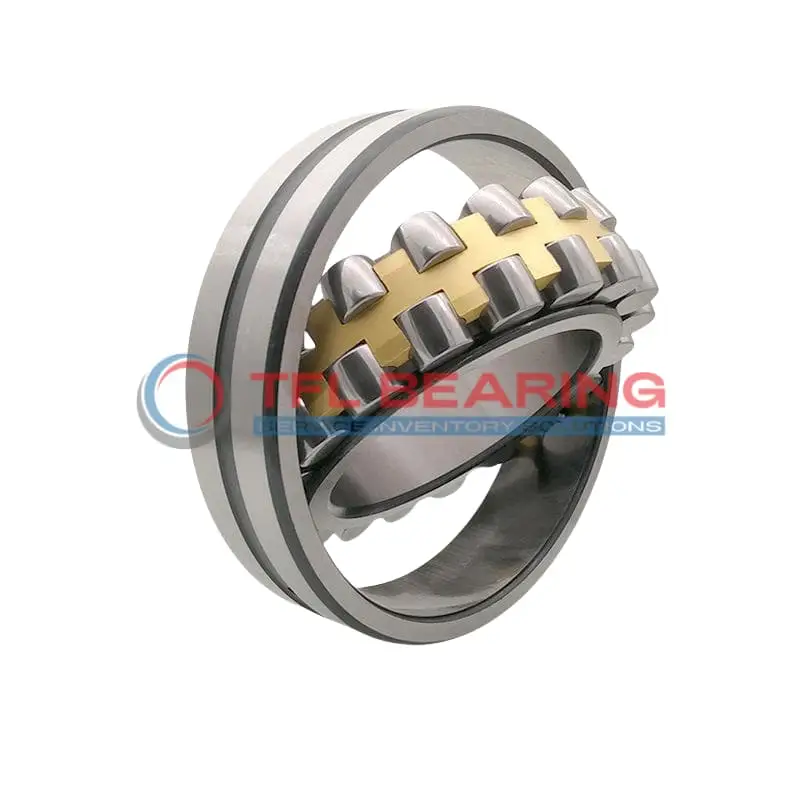

The 23072 CACK/C08W507 is a double-row spherical roller bearing with a 360mm bore and 540mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 623395 lbf and operates smoothly at speeds up to 1200 RPM.

Its brass cage ensures durability, while the tapered bore design allows for secure fitting. The bearing requires lubrication and performs well in temperatures from -30°C to 200°C.

This model is interchangeable with SKF bearings, making it a reliable replacement option. Ideal for heavy-duty applications like industrial gearboxes or large machinery where high radial loads are common.

Weighing 110kg, it’s designed for robust performance in demanding conditions. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 23072 CACK/C08W507
  • Brand TFL
  • Interchangeable SKF
  • Size 360 x 540 x 134 mm
  • Bore Dia 360 mm
  • Bore Dia Tolerance +0.057mm to 0
  • Outer Dia 540 mm
  • Outer Dia Tolerance -0.05mm to 0
  • Width 134 mm
  • Width Tolerance -0.4mm to 0
  • Shoulder Dia Of Inner Ring 418 mm
  • Shoulder/Recess Dia Of Outer Ring 483 mm
  • Width Of Lubrication Groove 22.3 mm
  • Diameter Of Lubrication Hole 12 mm
  • Chamfer Dimension min.5 mm
  • System of Measurement Metric
  • Radial run-out P5
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Taper 1:12
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 623395 lbf
  • Static Radial Load 1045362 lbf
  • Max Speed 1200 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 110 kg
  • Price （US$） US$3,296.78

Features

Performance Features of 23072 CACK/C08W507 Bearing

23072 CACK/C08W507 Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 623395 lbf, making it suitable for heavy-duty industrial applications.

The brass cage ensures proper roller alignment, reducing friction and enhancing durability.
With a maximum speed of 1200 rpm, it maintains stable performance under demanding conditions.

23072 CACK/C08W507 Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its tapered bore design simplifies installation, ensuring a secure fit and reliable operation.

The lubrication groove and hole design in 23072 CACK/C08W507 Bearing promote consistent grease distribution.
This feature helps extend maintenance intervals, reducing downtime and operational costs.

Application

Industrial Uses of 23072 CACK/C08W507 Bearing
23072 CACK/C08W507 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row spherical design handles misalignment and heavy radial loads. The brass cage ensures smooth operation even under high stress.

In wind turbines, 23072 CACK/C08W507 Bearing supports the main shaft, thanks to its high dynamic radial load capacity. The tapered bore design simplifies installation and maintenance in these critical applications.

For mining equipment, 23072 CACK/C08W507 Bearing’s robust construction withstands harsh conditions, while the chrome steel rollers provide long-lasting performance. Its wide temperature range makes it suitable for both hot and cold environments.

Where Is 23072 CACK/C08W507 Bearing Used?
You’ll find 23072 CACK/C08W507 Bearing in paper mills, where it supports large rollers under constant load. The open seal design allows for easy lubrication, ensuring consistent performance.

In steel plants, 23072 CACK/C08W507 Bearing handles the extreme loads of rolling mills. Its high static radial load capacity makes it a reliable choice for these demanding applications.

Built for Heavy-Duty Use: 23072 CACK/C08W507 Bearing
23072 CACK/C08W507 Bearing excels in construction equipment like cranes, where its combined load capacity is essential. The metric sizing ensures compatibility with international machinery standards.

For marine applications, 23072 CACK/C08W507 Bearing’s corrosion-resistant materials and lubrication grooves enhance durability. It’s a practical solution for propeller shafts and other critical components.

Automotive vs Aerospace: Applications of 23072 CACK/C08W507 Bearing
In large trucks, 23072 CACK/C08W507 Bearing supports axles and transmissions, handling heavy loads with ease. Its tapered bore simplifies mounting and dismounting during maintenance.

For aerospace ground equipment, 23072 CACK/C08W507 Bearing’s precision and reliability are key. The brass cage reduces friction, ensuring smooth operation in support machinery.
