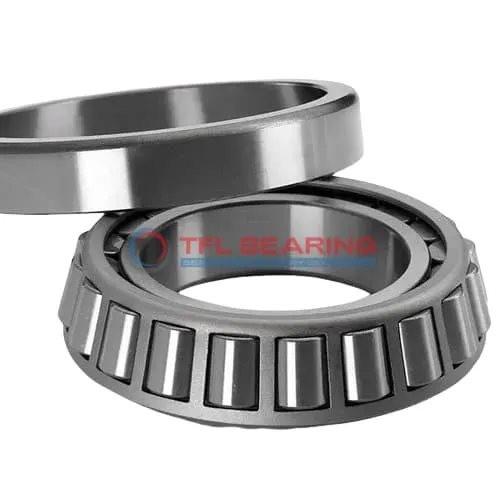

TS (Single Row Tapered Roller Bearings) (Imperial) HM133448-HM133416

The HM133448-HM133416 is a single-row tapered roller bearing with a 6.3″ bore and 9.9″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 135,000 lbf radially and 15,800 lbf thrust, suitable for heavy-duty applications.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, making it versatile for various environments.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery, gearboxes, or heavy equipment where robust performance is needed.

Weighing 26.5 lb, it’s built to last with standard radial clearance options. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number HM133448-HM133416
Brand TFL
Interchangeable Timken
Size 6.2992" x 9.9375" x 2.5"
Bore Dia 6.2992"
Bore Dia Tolerance +0.001" to 0
Outer Dia 9.9375"
Outer Dia Tolerance +0.001" to 0
Cone Width 2.75"
Cone Width Tolerance +0.003" to -0.01
Cup Width 2.0625"
Cup Width Tolerance +0.002" to -0.01
Width 2.5"
Width Tolerance +0.014" to -0.01"
Cone Backface ToClear Radius 0.06"
Cup Backface ToClear Radius 0.130"
Cone Frontface Backing Diameter 7.68"
Cone Backface Backing Diameter 6.81"
Cup Frontface Backing Diameter 9.21"
Cup Backface Backing Diameter 9.06"
Cage Cone Frontface Clearance 0.07"
Cage Cone Backface Clearance 0.06"
Effective Center Location -0.68"
System of Measurement Inch
Type Bearing
Cone Part Number HM133448
Cup Part Number HM133416
Bearing Type Roller
Roller Bearing Type Tapered
For Load Direction Combined
Construction Single Row
Seal Type Open
Cups Type Standard
Series HM133400
Ring Material Chrome Steel
Roller Material Chrome Steel
Cage Material Steel
Dynamic Radial Load 135000 lbf
Static Radial Load 233000 lbf
Dynamic Radial Rating(90 Million Revolutions)(C90) 35000 lbf
Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 15800 lbf
Lubrication Required
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Standard (Available in C3/C4/C5)
RoHS Compliant
REACH Compliant
Weight 26.50 lb

Features

Performance Features of HM133448-HM133416 Bearing

HM133448-HM133416 Bearing is built with chrome steel rings and rollers, offering robust performance under combined loads.
Its dynamic radial load capacity reaches 135,000 lbf, making it suitable for heavy-duty applications.

The tapered roller design ensures efficient load distribution, reducing stress and extending service life.
With a standard radial clearance, it provides reliable operation in various industrial settings.

HM133448-HM133416 Bearing operates within a temperature range of -30° to 110°C, ensuring versatility.
The steel cage maintains roller alignment, enhancing durability and reducing maintenance needs.

Application

Industrial Uses of HM133448-HM133416 Bearing
HM133448-HM133416 Bearing is commonly used in heavy machinery, such as construction equipment and mining tools, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

Where Is HM133448-HM133416 Bearing Used?
In automotive applications, HM133448-HM133416 Bearing supports axle systems and transmissions, providing reliable performance under high radial and thrust loads. Its inch sizing makes it compatible with many North American vehicle models.

Built for Heavy-Duty Use: HM133448-HM133416 Bearing
For industrial fans and pumps, HM133448-HM133416 Bearing offers stability and long service life, thanks to its steel cage and precise tolerances. The open design allows for easy lubrication and maintenance.

Automotive vs Aerospace: Applications of HM133448-HM133416 Bearing
In automotive settings, HM133448-HM133416 Bearing excels in wheel hubs and differentials, while in aerospace, it’s suited for auxiliary systems requiring robust load capacity. The ABEC-1 rating ensures consistent performance.

Key Fields for HM133448-HM133416 Bearing
HM133448-HM133416 Bearing is ideal for agricultural machinery, such as tractors and harvesters, where its ability to handle shock loads is crucial. The standard radial clearance option provides flexibility for various operating conditions.
