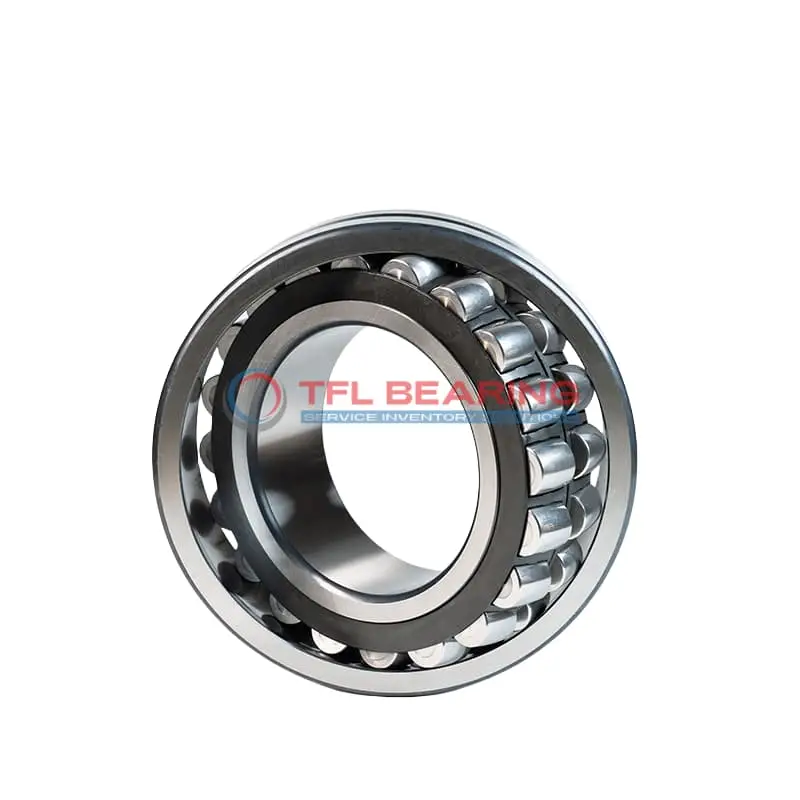

22309 CY W33 Double Row Spherical Roller Bearing

22309 CY W33 Double Row Spherical Roller Bearing

The 22309 CY W33 is a double-row spherical roller bearing with a 45mm bore and 100mm outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 42714 lbf and operates smoothly at speeds up to 7000 RPM.

Its brass cage and open design ensure durability, while the lubrication groove simplifies maintenance. The bearing performs reliably in temperatures ranging from -30°C to 200°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for heavy-duty applications like industrial gearboxes or mining equipment where robust performance is needed.

Weighing 1.4kg, it offers a solid balance of strength and size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22309 CY W33
  • Brand TFL
  • Interchangeable SKF
  • Size 45 x 100 x 36 mm
  • Bore Dia 45 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 100 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 36 mm
  • Width Tolerance -0.06mm to 0
  • Shoulder Dia Of Inner Ring 57.6 mm
  • Shoulder/Recess Dia Of Outer Ring 83.4 mm
  • Width Of Lubrication Groove 6 mm
  • Diameter Of Lubrication Hole 3 mm
  • Chamfer Dimension min.1.5 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 42714 lbf
  • Static Radial Load 4114 lbf
  • Max Speed 7000 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 1.4 kg
  • Price （US$） 40.86

Features

Performance Features of 22309 CY W33 Bearing

22309 CY W33 Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 42714 lbf, making it suitable for heavy-duty applications.

The brass cage ensures smooth roller alignment, reducing friction and extending operational life.
With a maximum speed of 7000 rpm, it delivers reliable performance under demanding conditions.

22309 CY W33 Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its double-row spherical design accommodates misalignment, ensuring consistent performance.

The lubrication groove and hole design in 22309 CY W33 Bearing simplify maintenance.
This feature helps maintain optimal performance even in high-speed applications.

Application

Industrial Uses of 22309 CY W33 Bearing
22309 CY W33 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row spherical design handles misalignment and heavy radial loads. The brass cage ensures smooth operation even under high stress.

In automotive applications, 22309 CY W33 Bearing fits well in truck wheel hubs and transmissions, offering durability and reliability. Its metric sizing makes it a versatile choice for various vehicle models.

For industrial fans and blowers, 22309 CY W33 Bearing’s high-speed capability and temperature resistance make it a dependable option. The lubrication groove design helps maintain performance in continuous operation.

Where Is 22309 CY W33 Bearing Used?
You’ll find 22309 CY W33 Bearing in conveyor systems, where its combined load capacity keeps things running smoothly. The chrome steel construction ensures long service life even in dusty environments.

In construction equipment like excavators, 22309 CY W33 Bearing handles heavy loads and shocks effectively. Its spherical roller design adapts to slight misalignments, reducing wear and tear.

Built for Heavy-Duty Use: 22309 CY W33 Bearing
22309 CY W33 Bearing is ideal for mining equipment, where its robust design withstands extreme conditions. The open seal type allows for easy relubrication, extending bearing life.

In paper mills, 22309 CY W33 Bearing’s high dynamic load rating ensures reliable performance in rolling machines. The brass cage reduces friction, making it efficient for continuous operation.

Automotive vs Aerospace: Applications of 22309 CY W33 Bearing
In automotive systems, 22309 CY W33 Bearing supports heavy loads in axles and gearboxes. Its temperature range suits both cold and hot climates.

For aerospace ground equipment, 22309 CY W33 Bearing’s precision and durability make it a trusted choice. The spherical rollers accommodate slight misalignments during operation.
