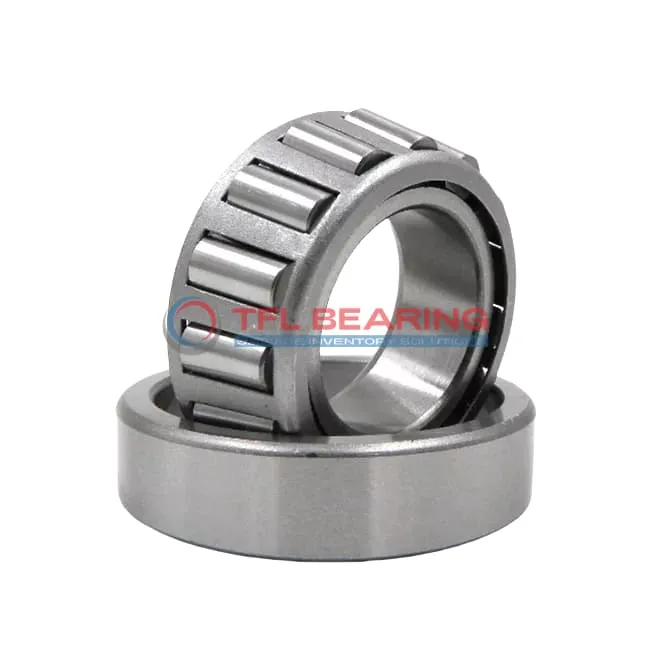

TS (Single Row Tapered Roller Bearings) (Imperial) 99537-99100P

TS (Single Row Tapered Roller Bearings) (Imperial) 99537-99100P

The 99537-99100P is a single-row tapered roller bearing with a 5.375″ bore and 10″ outer diameter, crafted from robust chrome steel. It handles combined loads up to 148,000 lbf radially and 26,800 lbf thrust, making it suitable for heavy-duty applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under high stress. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery or automotive systems where combined loads are common.

Weighing 31.70 lb, it’s built to last with standard radial clearance options. Compliant with RoHS and REACH standards for safe and sustainable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 99537-99100P
  • Brand TFL
  • Interchangeable Timken
  • Size 5.375" x 10" x 2.625"
  • Bore Dia 5.375"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 10"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 2.625"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.875"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 2.625"
  • Width Tolerance +0.014" to -0.01"
  • Cone Backface ToClear Radius 0.280"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 7.05"
  • Cone Backface Backing Diameter 6.57"
  • Cup Frontface Backing Diameter 9.38"
  • Cup Backface Backing Diameter 8.94"
  • Cage Cone Frontface Clearance 0.19"
  • Cage Cone Backface Clearance 0.34"
  • Effective Center Location -0.48"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 99537
  • Cup Part Number 99100P
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 99000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 148000 lbf
  • Static Radial Load 231000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 38500 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 26800 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 31.70 lb

Features

Performance Features of 99537-99100P Bearing

99537-99100P Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 148,000 lbf, making it suitable for heavy-duty applications.

The single-row tapered roller design ensures smooth operation and efficient load distribution.
With a static radial load of 231,000 lbf, it provides reliable performance in demanding conditions.

99537-99100P Bearing operates within a temperature range of -30° to 110°C, ensuring versatility.
The steel cage maintains roller alignment, reducing wear and extending service life.

Application

Industrial Uses of 99537-99100P Bearing
99537-99100P Bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

In automotive applications, 99537-99100P Bearing fits well in truck wheel hubs, providing reliable performance under radial and thrust loads. Its inch sizing makes it a preferred choice for North American vehicle models.

For industrial fans and pumps, 99537-99100P Bearing’s open design allows for easy lubrication, extending service life. The steel cage adds stability during high-speed operations.

What Makes 99537-99100P Bearing a Preferred Choice?
99537-99100P Bearing is ideal for agricultural machinery, where its robust design withstands dirt and moisture. The standard radial clearance offers flexibility for various load conditions.

In mining equipment, 99537-99100P Bearing’s high dynamic load capacity ensures smooth operation under extreme stress. Its compatibility with Timken models simplifies replacements.

Built for Heavy-Duty Use: 99537-99100P Bearing
99537-99100P Bearing excels in conveyor systems, handling heavy loads with ease. The tapered rollers distribute stress evenly, reducing wear.

For railway applications, 99537-99100P Bearing’s temperature tolerance makes it suitable for varying climates. The ABEC-1 rating balances precision and cost-effectiveness.
