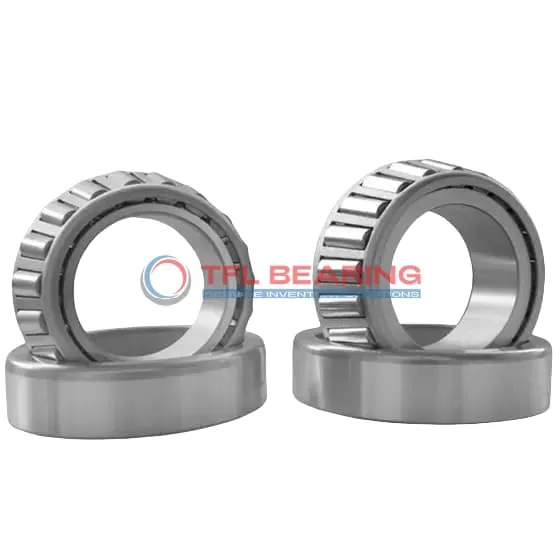

TS (Single Row Tapered Roller Bearings) (Imperial) HH234031-HH234010V

TS (Single Row Tapered Roller Bearings) (Imperial) HH234031-HH234010V

The HH234031-HH234010V is a single-row tapered roller bearing with a 5.5″ bore and 12.125″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 259,000 lbf radially and 37,500 lbf thrust, making it robust for heavy-duty use.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, suitable for varied environments.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery, gearboxes, or heavy equipment where high load capacity is needed.

Weighing 68.30 lb, it’s built to last with standard radial clearance and ABEC-1 precision. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HH234031-HH234010V
  • Brand TFL
  • Interchangeable Timken
  • Size 5.5" x 12.125" x 3.5"
  • Bore Dia 5.5"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 12.125"
  • Outer Dia Tolerance +0.002" to 0
  • Cone Width 3.6875"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 2.625"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 3.5"
  • Width Tolerance +0.014" to -0.01"
  • Cone Backface ToClear Radius 0.380"
  • Cup Backface ToClear Radius 0.270"
  • Cone Frontface Backing Diameter 7.44"
  • Cone Backface Backing Diameter 7.09"
  • Cup Frontface Backing Diameter 11.26"
  • Cup Backface Backing Diameter 10.87"
  • Cage Cone Frontface Clearance 0.01"
  • Cage Cone Backface Clearance 0.46"
  • Effective Center Location -1.04"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number HH234031
  • Cup Part Number HH234010V
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series HH234000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 259000 lbf
  • Static Radial Load 354000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 67200 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 37500 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 68.30 lb

Features

How Does HH234031-HH234010V Bearing Handle Combined Loads?

HH234031-HH234010V Bearing is built with chrome steel rings and rollers, offering strong resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 259,000 lbf, ensuring reliable performance in heavy-duty applications.
The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in various environmental conditions.

Why Choose HH234031-HH234010V Bearing for Heavy-Duty Applications?

HH234031-HH234010V Bearing features a single-row tapered roller design, ideal for handling combined loads efficiently.
The chrome steel construction provides durability, while the standard radial clearance ensures smooth operation.
Its dynamic thrust rating of 37,500 lbf makes it suitable for demanding industrial uses.
The bearing requires regular lubrication to maintain optimal performance over time.

Engineered for Reliability: HH234031-HH234010V Bearing

HH234031-HH234010V Bearing is designed with precise cone and cup dimensions for consistent performance.
The chrome steel rollers and rings enhance load-bearing capacity, supporting up to 354,000 lbf static radial load.
Its open seal type allows for easy lubrication and maintenance.
The bearing’s ABEC-1 rating ensures dependable precision in various applications.

Steel vs Ceramic Bearings: Strengths of HH234031-HH234010V Bearing

HH234031-HH234010V Bearing uses chrome steel for both rollers and rings, providing excellent strength and durability.
The steel cage ensures stable roller movement, reducing wear and extending service life.
With a weight of 68.30 lb, it is robust yet manageable for industrial installations.
The bearing’s standard radial clearance options (C3/C4/C5) offer flexibility for different operational needs.

Application

Industrial Uses of HH234031-HH234010V Bearing
HH234031-HH234010V Bearing is commonly used in heavy machinery like construction equipment and mining rigs, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in tough working conditions.

In automotive applications, HH234031-HH234010V Bearing fits well in truck wheel hubs and differential systems, providing reliable performance under high radial and thrust loads. Its imperial sizing makes it a preferred choice for North American vehicle models.

For industrial conveyor systems, HH234031-HH234010V Bearing’s open design allows for easy lubrication, extending service life in continuous operation environments. The steel cage adds stability, reducing wear over time.

What Makes HH234031-HH234010V Bearing a Preferred Choice?
HH234031-HH234010V Bearing stands out in agricultural machinery, such as tractor transmissions, due to its ability to handle varying load directions. The standard radial clearance offers flexibility for different operational needs.

In wind turbine gearboxes, HH234031-HH234010V Bearing’s high dynamic load capacity ensures smooth rotation under fluctuating wind forces. The ABEC-1 rating provides a balance of precision and cost-effectiveness for large-scale applications.

Built for Heavy-Duty Use: HH234031-HH234010V Bearing
HH234031-HH234010V Bearing is ideal for railway axle boxes, where its robust design copes with constant vibration and heavy loads. The temperature range of -30° to 110°C suits diverse climatic conditions.

For steel mill rollers, HH234031-HH234010V Bearing’s tapered rollers distribute stress evenly, reducing downtime in high-temperature environments. The required lubrication ensures consistent performance even under extreme pressure.

Automotive vs Aerospace: Applications of HH234031-HH234010V Bearing
In automotive drivetrains, HH234031-HH234010V Bearing supports high torque demands, while in aerospace landing gear, its reliability under stress is valued. The inch measurements align with industry-specific standards.

For industrial pumps, HH234031-HH234010V Bearing’s combined load capability ensures efficient fluid handling, whereas in marine propulsion systems, its corrosion-resistant materials enhance longevity. The weight of 68.30 lb reflects its sturdy build.
