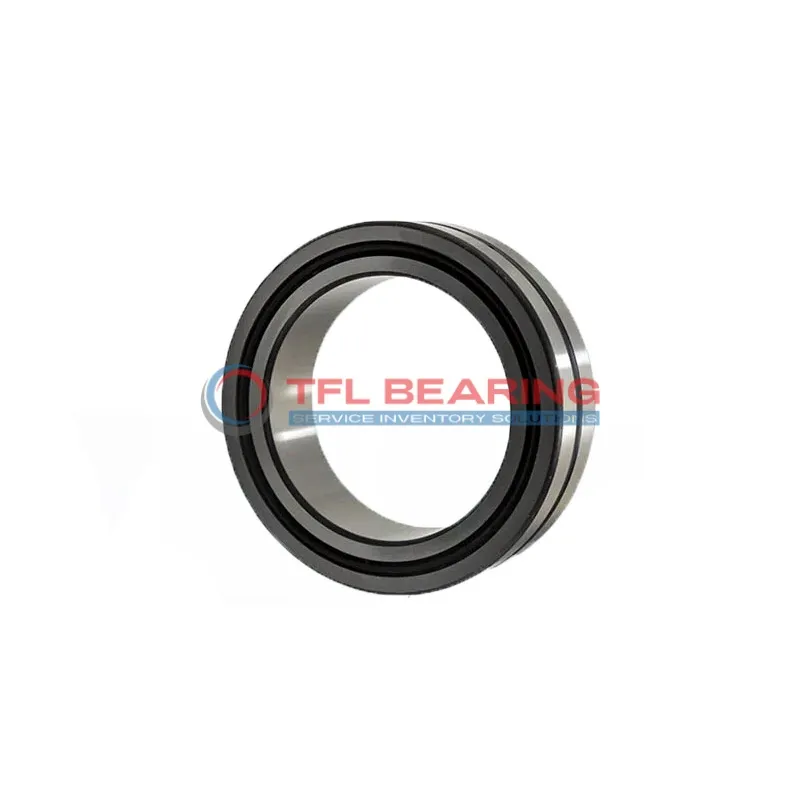

Heavy Duty Needle Roller Bearings (Machined) NKI80/35-XL

Heavy Duty Needle Roller Bearings (Machined) NKI80/35-XL

The NKI80/35-XL is a heavy-duty needle roller bearing with an 80mm bore and 110mm outer diameter, crafted from sturdy steel for long-lasting performance. It handles radial loads up to 26100 lbf and operates smoothly at speeds up to 5100 RPM.
Its open design allows for easy lubrication, while the steel cage ensures durability under heavy use. The bearing is designed for press-fit mounting, making installation straightforward.
This model is interchangeable with INA bearings, offering a reliable alternative for replacements. Ideal for industrial machinery or automotive applications where high radial loads are common.
Weighing 959g, it’s robust yet manageable for its size. Compliant with RoHS standards, it works in temperatures from -20°C to 110°C.
The 1mm chamfer and 90mm F dimension ensure compatibility with standard shafts. Perfect for demanding environments needing reliable radial load support.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NKI80/35-XL
  • Brand TFL
  • Interchangeable brand INA
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Inner Ring Yes
  • Series With Inner Ring
  • Bore Dia 80 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 35 mm
  • Width Tolerance -0.15mm to 0
  • Ring Material Steel
  • Cage Material Steel
  • Roller Material Steel
  • Dynamic Radial Load 26100 lbf
  • Static Radial Load 46800 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 5100 rpm
  • Weight 959 g
Heavy Duty Needle Roller Bearings (Machined) NKI80/35-XL dimension drawing
Download DWG Download PDF

Features

Performance Features of NKI80/35-XL Bearing
NKI80/35-XL Bearing is built with steel rings and rollers, offering strong resistance to heavy radial loads.
Its dynamic radial load capacity reaches 26100 lbf, making it suitable for demanding industrial applications.
The steel cage ensures proper roller alignment, reducing friction and wear during operation.
With a maximum speed of 5100 rpm, it delivers reliable performance in high-speed conditions.
NKI80/35-XL Bearing operates efficiently within a temperature range of -20 to 110°C.
Its press-fit shaft mount design simplifies installation while maintaining secure positioning.
The open seal type allows for easy lubrication, ensuring smooth operation over extended periods.
Weighing just 959g, it provides strength without unnecessary bulk.

Application

Industrial Uses of NKI80/35-XL Bearing
NKI80/35-XL Bearing is commonly used in heavy machinery, such as construction equipment and agricultural tools, where its robust design handles high radial loads with ease. The steel construction ensures durability in demanding environments.
Where Is NKI80/35-XL Bearing Used?
You’ll often find NKI80/35-XL Bearing in automotive transmissions and industrial gearboxes, where its needle roller design provides efficient load distribution. Its press-fit mounting makes installation straightforward in tight spaces.
Built for Heavy-Duty Use: NKI80/35-XL Bearing
NKI80/35-XL Bearing excels in applications like conveyor systems and printing presses, where consistent performance under heavy loads is essential. The open design allows for easy lubrication, extending its service life.
Automotive vs Industrial: Applications of NKI80/35-XL Bearing
In automotive settings, NKI80/35-XL Bearing supports components like differential systems, while in industrial machinery, it’s ideal for pumps and compressors. Its metric sizing ensures compatibility across various equipment types.
