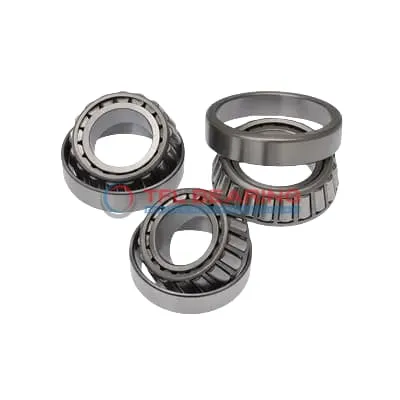

TS (Single Row Tapered Roller Bearings) (Imperial) EE700091-700167

TS (Single Row Tapered Roller Bearings) (Imperial) EE700091-700167

The EE700091-700167 is a single-row tapered roller bearing with a 9″ bore and 16.75″ outer diameter, built from sturdy chrome steel. It handles combined loads up to 382,000 lbf radially and 56,400 lbf thrust, making it suitable for heavy-duty applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under high stress. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery, gearboxes, or construction equipment where robust performance is needed.

Weighing 124.70 lb, it’s designed for stability and long service life. Compliant with RoHS and REACH standards for safe and sustainable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number EE700091-700167
  • Brand TFL
  • Interchangeable Timken
  • Size 9" x 16.75" x 4"
  • Bore Dia 9"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 16.75"
  • Outer Dia Tolerance +0.002" to 0
  • Cone Width 3.75"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 3"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 4"
  • Width Tolerance +0.014" to -0.01"
  • Cone Backface ToClear Radius 0.280"
  • Cup Backface ToClear Radius 0.250"
  • Cone Frontface Backing Diameter 11.33"
  • Cone Backface Backing Diameter 10.47"
  • Cup Frontface Backing Diameter 15.13"
  • Cup Backface Backing Diameter 15.00"
  • Cage Cone Frontface Clearance 0.1"
  • Cage Cone Backface Clearance 0.78"
  • Effective Center Location -0.83"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number EE700091
  • Cup Part Number 700167
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 700000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 382000 lbf
  • Static Radial Load 481000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 99000 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 56400 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 124.70 lb

Features

How Does EE700091-700167 Bearing Handle Combined Loads?

EE700091-700167 Bearing is built with chrome steel rings and rollers, offering strong resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 382,000 lbf, ensuring reliable performance in heavy-duty applications.
The steel cage maintains proper roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in various environmental conditions.

Structural Advantages of EE700091-700167 Bearing

EE700091-700167 Bearing features a single-row tapered roller design, optimised for combined load handling.
The precision-engineered chrome steel components provide durability and consistent performance.
Its standard radial clearance allows for smooth operation, with options for C3/C4/C5 clearances available.
The open seal design simplifies maintenance while ensuring reliable lubrication.

Why Choose EE700091-700167 Bearing for Heavy-Duty Applications?

EE700091-700167 Bearing’s robust construction supports static radial loads up to 481,000 lbf.
The tapered roller design distributes loads evenly, minimising wear and enhancing longevity.
Its ABEC-1 rating ensures dependable precision for industrial use.
The bearing’s wide temperature range makes it suitable for diverse operating environments.

Application

Industrial Uses of EE700091-700167 Bearing
EE700091-700167 Bearing is commonly used in heavy machinery like mining equipment and construction gear, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in harsh operating conditions.

Where Is EE700091-700167 Bearing Used?
You’ll often find EE700091-700167 Bearing in large industrial fans and conveyor systems, thanks to its robust design and high load capacity. Its inch sizing makes it a go-to choice for machinery requiring imperial measurements.

Built for Heavy-Duty Use: EE700091-700167 Bearing
EE700091-700167 Bearing excels in agricultural machinery, such as tractors and harvesters, where reliability is key. The open seal design allows for easy lubrication, extending its service life in dusty environments.

Automotive vs Aerospace: Applications of EE700091-700167 Bearing
In automotive applications, EE700091-700167 Bearing supports large truck axles, while in aerospace, it’s used in ground support equipment. Its high dynamic load rating makes it versatile across industries.

Essential Roles of EE700091-700167 Bearing
EE700091-700167 Bearing is vital in paper mill machinery, where its tapered rollers manage heavy radial and thrust loads. The steel cage adds extra strength, ensuring smooth operation under constant stress.
