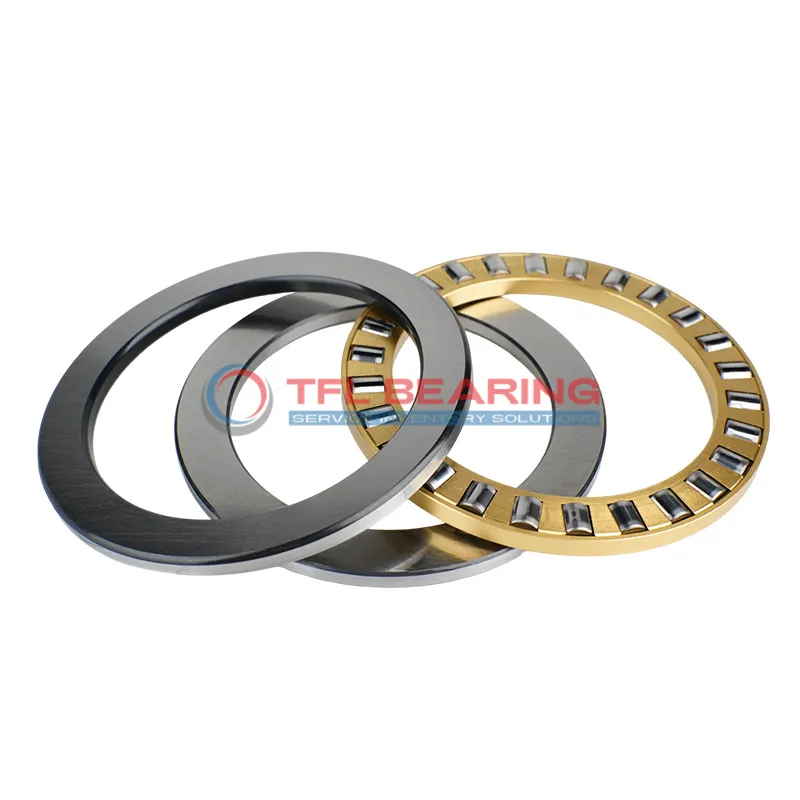

Single Row Cylindrical Roller Thrust Bearings 81136 M

Single Row Cylindrical Roller Thrust Bearings 81136 M

The 81136 M is a single-row cylindrical roller thrust bearing, measuring 180mm by 225mm by 34mm, crafted from sturdy chrome steel. It handles heavy thrust loads up to 60750 lbf and operates smoothly at speeds up to 1500 RPM.

Its machined brass cage ensures durability, while the precise tolerances guarantee reliable performance. The bearing works efficiently in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial machinery or construction equipment where high thrust loads are common.

Weighing 3.7kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 81136 M
  • size 180 mm x 225 mm x 34 mm
  • Brand TFL
  • Interchangeable brand SKF
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Bearing Type Roller
  • For Load Direction Thrust
  • Number of Rows 1
  • Bore Dia 180 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 225 mm
  • Outer Dia Tolerance -0.030mm to 0
  • Width 34 mm
  • Height Tolerance -0.40mm to +0.025mm
  • Outside Diameter Shaft Washer 222 mm
  • Bore Diameter Housing Washer 183 mm
  • Height Shaft Washer 10 mm
  • Chamfer Dimension Housing Washer r1,2 (min.) 1.1 mm
  • Washer Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Machined brass cage
  • Dynamic Radial Load 60750 lbf
  • Static Radial Load 285750 lbf
  • Max Speed 1500 rpm
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 3.7 kg
  • Roller And Cage Thrust Assembly K 81136 M
  • Shaft Washer WS 81136
  • Housing Washer GS 81136
Single Row Cylindrical Roller Thrust Bearings 81136 M dimension drawing
Download DWG Download PDF

Features

Performance Features of 81136 M Bearing

81136 M Bearing is designed with chrome steel washers and rollers, offering strong resistance to heavy thrust loads.
Its dynamic radial load capacity reaches 60750 lbf, ensuring reliable performance in demanding applications.

The machined brass cage keeps the rollers aligned, reducing wear and extending service life.
With a maximum speed of 1500 rpm, it balances durability and efficiency.

81136 M Bearing functions well in temperatures ranging from -30° to 110°C, making it versatile for various environments.
Its precise dimensions and tolerances ensure smooth operation and easy installation.

Application

Industrial Uses of 81136 M Bearing
81136 M Bearing is commonly used in heavy machinery, such as hydraulic presses and large gearboxes, where its cylindrical roller design handles significant thrust loads efficiently. The machined brass cage ensures smooth operation even under high stress.

What Makes 81136 M Bearing a Preferred Choice?
In automotive applications, 81136 M Bearing supports components like clutch assemblies and transmission systems, thanks to its durable chrome steel construction. Its precise tolerances make it ideal for ensuring long-term reliability in demanding conditions.

Built for Heavy-Duty Use: 81136 M Bearing
For industrial automation, 81136 M Bearing excels in robotic arms and conveyor systems, where its high dynamic load capacity is crucial. The wide temperature range also allows it to perform reliably in various environments.

Medical vs Industrial: Where 81136 M Bearing Excels
While 81136 M Bearing isn’t typically used in medical devices, it shines in industrial settings like steel mills and mining equipment. Its robust design and high static load capacity make it suitable for extreme conditions.

Practical Applications of 81136 M Bearing
In wind turbines, 81136 M Bearing plays a key role in handling axial loads from rotor blades, ensuring smooth rotation. The metric sizing and compatibility with SKF models add to its versatility across global markets.
