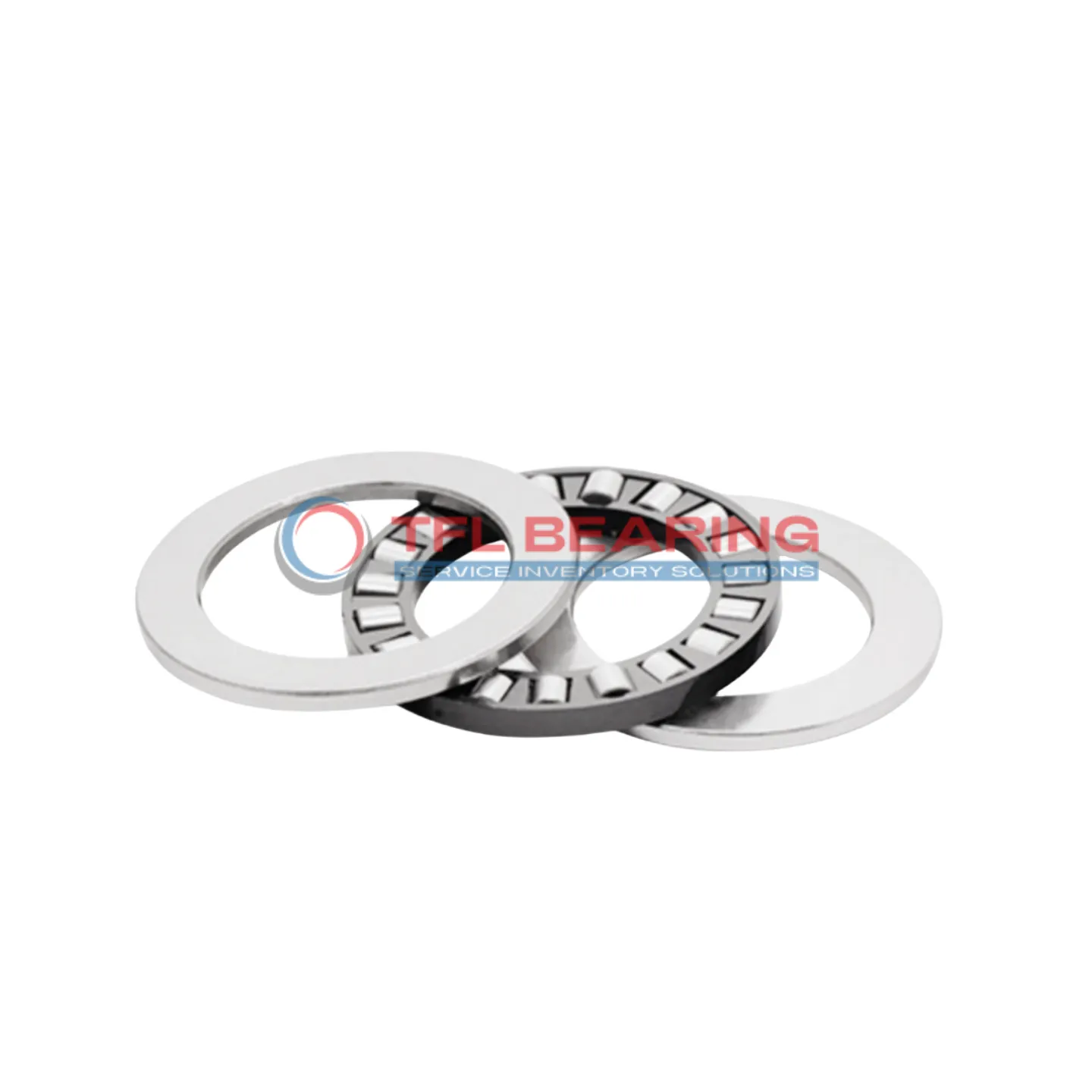

Single Row Cylindrical Roller Thrust Bearings 81130 TN

Brand: TFL Bearing Interchangeable: SKF 81130 TN 150 mm x 190 mm x 31 mm Metric
Part number: 81130 TN
Single Row Cylindrical Roller Thrust Bearings 81130 TN
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia150 mm
Bore Dia Tolerance-0.025mm to 0
Outer Dia190 mm
Outer Dia Tolerance-0.030mm to 0
Width31 mm
Height Tolerance-0.40mm to +0.025mm
Outside Diameter Shaft Washer188 mm
Bore Diameter Housing Washer152 mm
Height Shaft Washer9.5 mm
Chamfer Dimension Housing Washer r1,2 (min.)1 mm
Performance
Dynamic Radial Load47,700 lbf
Static Radial Load225,000 lbf
Max Speed1,700 rpm
Temperature Range-30° to 110 °C
Characteristics
System of MeasurementMetric
Roller Bearing TypeCylindrical
Bearing TypeRoller
For Load DirectionThrust
Number of Rows1
Weight2.2 kg
Roller And Cage Thrust AssemblyK 81130 TN
Shaft WasherWS 81130
Housing WasherGS 81130
Material
Washer MaterialChrome Steel
Roller MaterialChrome Steel
Cage MaterialGlass fibre reinforced PA66 cage
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 81130 TN is a single-row cylindrical roller thrust bearing, measuring 150mm by 190mm by 31mm. Made from chrome steel, it’s built to handle heavy thrust loads with ease.

It supports dynamic radial loads up to 47700 lbf and static loads up to 225000 lbf, with a max speed of 1700 RPM. The glass fibre reinforced PA66 cage adds durability and reduces friction.

The bearing’s design includes a shaft washer and housing washer for stable performance. It works well in temperatures from -30°C to 110°C, making it suitable for tough environments.

Ideal for industrial machinery or heavy equipment where high thrust loads are common. Compliant with RoHS and REACH standards, it’s a reliable choice for replacements, interchangeable with SKF models. Weighing 2.2kg, it’s sturdy yet manageable for its size.

Features

Performance Features of 81130 TN Bearing

81130 TN Bearing is built with chrome steel washers and rollers, offering strong resistance to heavy thrust loads.
Its dynamic radial load capacity reaches 47,700 lbf, making it suitable for demanding industrial applications.

The glass fibre reinforced PA66 cage ensures smooth operation and reduces friction during high-speed rotation.
With a maximum speed of 1,700 rpm, it maintains efficiency without compromising durability.

81130 TN Bearing operates effectively in temperatures ranging from -30° to 110°C, adapting to various working conditions.
Its precise dimensions and tolerances ensure reliable performance in thrust load scenarios.

The bearing’s design simplifies installation, reducing downtime and maintenance efforts.
Its interchangeable nature with SKF bearings provides flexibility in replacement options.

Application

Industrial Uses of 81130 TN Bearing
81130 TN Bearing is commonly used in heavy machinery, such as hydraulic presses and large gearboxes, where its cylindrical roller design handles high thrust loads efficiently. The glass fibre reinforced cage adds durability in demanding industrial environments.

Where Is 81130 TN Bearing Used?
You’ll often find 81130 TN Bearing in wind turbine systems, supporting the main shaft where axial loads are significant. Its metric sizing and high load capacity make it a reliable choice for renewable energy applications.

Built for Heavy-Duty Use: 81130 TN Bearing
81130 TN Bearing excels in construction equipment like cranes and excavators, thanks to its robust chrome steel construction. The precise tolerances ensure smooth operation even under extreme conditions.

Automotive vs Aerospace: Applications of 81130 TN Bearing
In automotive applications, 81130 TN Bearing is used in heavy-duty transmissions, while in aerospace, it supports landing gear mechanisms. Its high static load capacity makes it versatile across industries.

Practical Applications of 81130 TN Bearing
For conveyor systems in mining, 81130 TN Bearing provides reliable performance under continuous heavy loads. The PA66 cage material resists wear, reducing maintenance needs in harsh environments.
