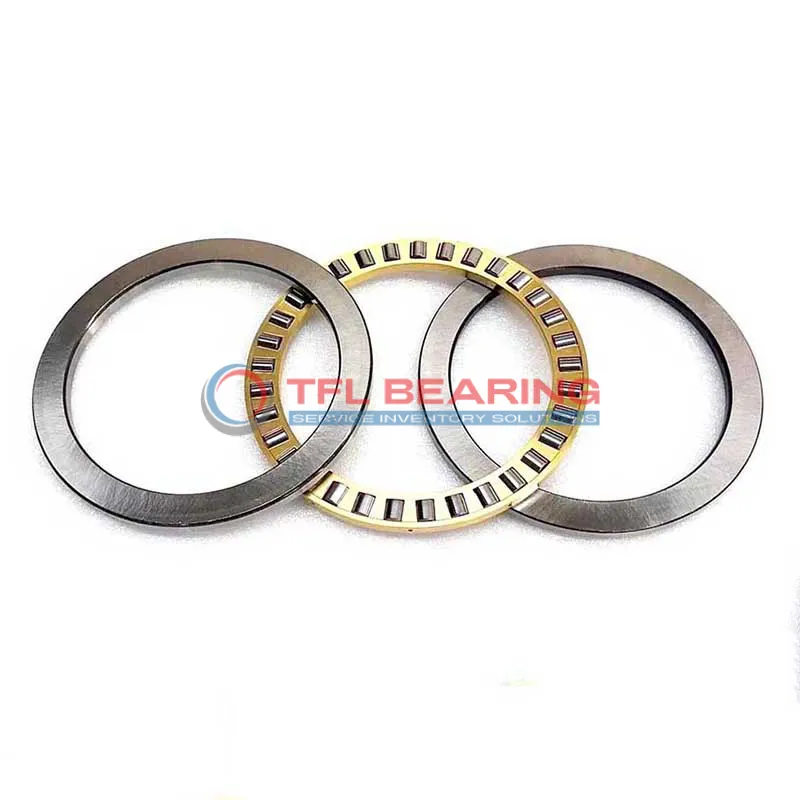

Single Row Cylindrical Roller Thrust Bearings 812/600 M

Single Row Cylindrical Roller Thrust Bearings 812/600 M

The 812/600 M is a single-row cylindrical roller thrust bearing with a large 600mm bore and 800mm outer diameter, built from sturdy chrome steel. It handles heavy thrust loads up to 990,000 lbf and operates smoothly at speeds up to 300 RPM.

Its machined brass cage ensures durability, while the precise tolerances provide reliable performance under stress. The bearing works well in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial presses or large machinery where high thrust loads are common.

Weighing 240kg, it’s designed for robust performance in demanding environments. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 812/600 M
  • size 600 mm x 800 mm x 160 mm
  • Brand TFL
  • Interchangeable brand SKF
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Bearing Type Roller
  • For Load Direction Thrust
  • Number of Rows 1
  • Bore Dia 600 mm
  • Bore Dia Tolerance -0.050mm to 0
  • Outer Dia 800 mm
  • Outer Dia Tolerance -0.075mm to 0
  • Width 160 mm
  • Height Tolerance -0.60mm to +0.06mm
  • Outside Diameter Shaft Washer 795 mm
  • Bore Diameter Housing Washer 605 mm
  • Height Shaft Washer 48 mm
  • Chamfer Dimension Housing Washer r1,2 (min.) 5 mm
  • Washer Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Machined brass cage
  • Dynamic Radial Load 990000 lbf
  • Static Radial Load 5400000 lbf
  • Max Speed 300 rpm
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 240 kg
  • Shaft Washer IW-812/600
  • Housing Washer OW-812/600

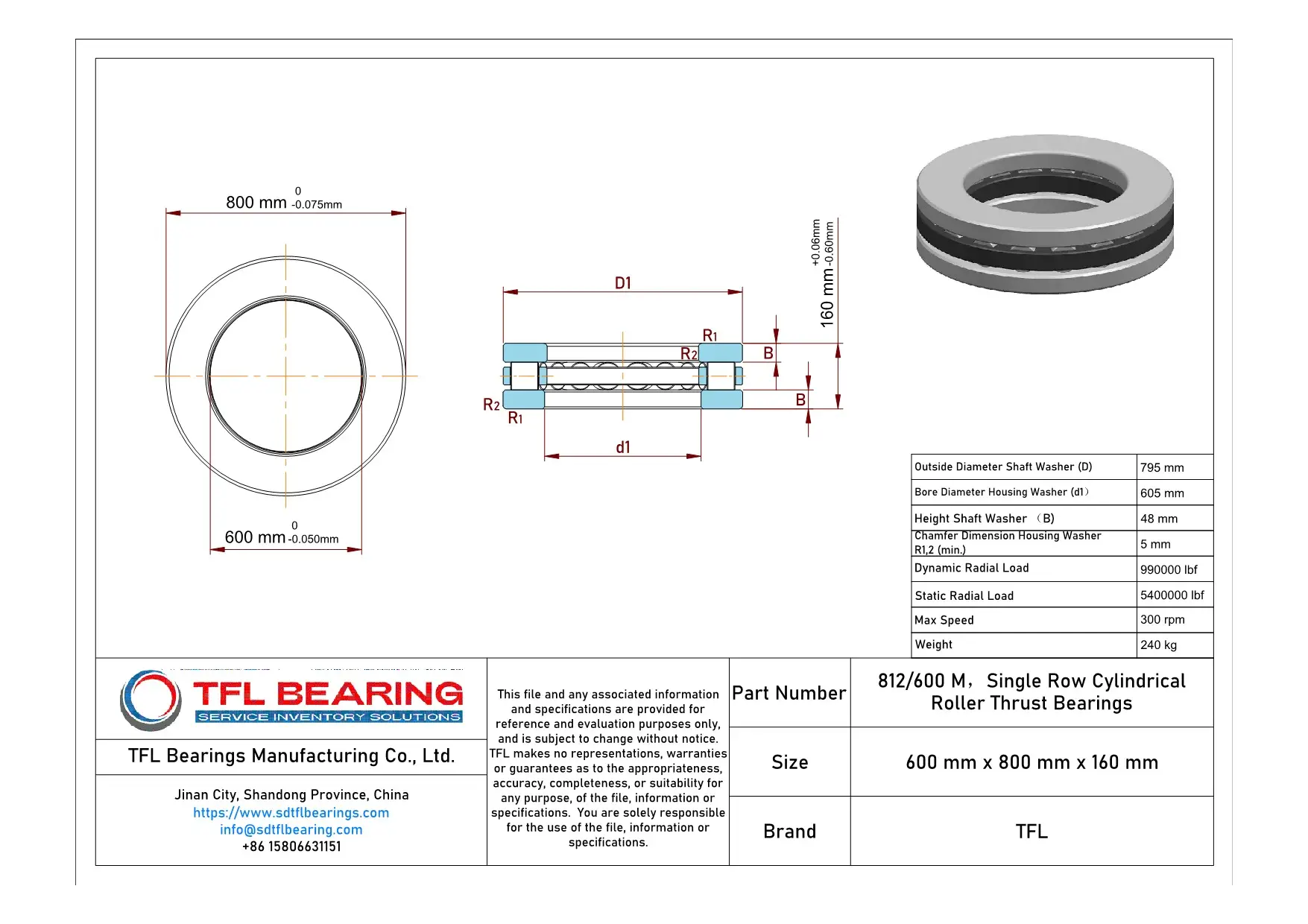

Single Row Cylindrical Roller Thrust Bearings 812/600 M dimension drawing
Download DWG Download PDF

Features

Structural Advantages of 812/600 M Bearing

812/600 M Bearing features a robust chrome steel construction, ensuring durability under heavy thrust loads.
The machined brass cage enhances stability, keeping rollers aligned for smooth operation.
With a dynamic radial load capacity of 990,000 lbf, it handles demanding industrial applications.
Its precise tolerances and large dimensions (600 mm x 800 mm x 160 mm) ensure reliable performance.

How Does 812/600 M Bearing Resist Wear?

812/600 M Bearing’s chrome steel rollers and washers provide excellent resistance to wear and fatigue.
The machined brass cage reduces friction, extending the bearing’s service life.
It operates efficiently within a temperature range of -30° to 110°C, maintaining performance in varied conditions.
With a static radial load capacity of 5,400,000 lbf, it excels in high-stress environments.

Engineered for Precision: 812/600 M Bearing

812/600 M Bearing is designed for precise load distribution, thanks to its single-row cylindrical roller design.
The tight tolerances on bore and outer diameters ensure accurate fit and smooth operation.
Its large size (600 mm bore) makes it suitable for heavy machinery applications.
The bearing’s machined brass cage enhances durability and reduces maintenance needs.

Why Choose 812/600 M Bearing for High-Load Applications?

812/600 M Bearing handles extreme loads with ease, offering a dynamic radial load capacity of 990,000 lbf.
The chrome steel construction ensures long-lasting performance even in harsh conditions.
Its machined brass cage provides excellent roller guidance, minimising wear.
With a maximum speed of 300 rpm, it balances power and precision in industrial settings.

Steel vs Ceramic Bearings: Strengths of 812/600 M Bearing

812/600 M Bearing’s chrome steel construction delivers superior strength for heavy thrust applications.
The material choice ensures reliability under high static loads (5,400,000 lbf).
Its machined brass cage offers better heat dissipation compared to polymer alternatives.
The bearing’s large dimensions and precise tolerances make it ideal for industrial machinery.

Application

Industrial Uses of 812/600 M Bearing
812/600 M Bearing is commonly used in heavy machinery like hydraulic presses and large gearboxes, where its cylindrical roller design handles substantial thrust loads efficiently. The machined brass cage ensures smooth operation even under high stress.

What Makes 812/600 M Bearing a Preferred Choice?
In wind turbine systems, 812/600 M Bearing’s large bore diameter and robust construction make it ideal for supporting rotor shafts. Its chrome steel rollers provide durability in demanding outdoor conditions.

Built for Heavy-Duty Use: 812/600 M Bearing
For mining equipment, 812/600 M Bearing excels in conveyor systems and crushers, thanks to its high static load capacity. The precise metric sizing ensures easy integration with existing machinery.

Automotive vs Aerospace: Applications of 812/600 M Bearing
In automotive testing rigs, 812/600 M Bearing handles axial loads during durability tests. While in aerospace, its temperature stability suits ground support equipment like aircraft jacks.

Where Is 812/600 M Bearing Used?
You’ll find 812/600 M Bearing in steel mills, where its 800mm outer diameter supports rolling mill stands. The brass cage reduces friction during continuous operation.
