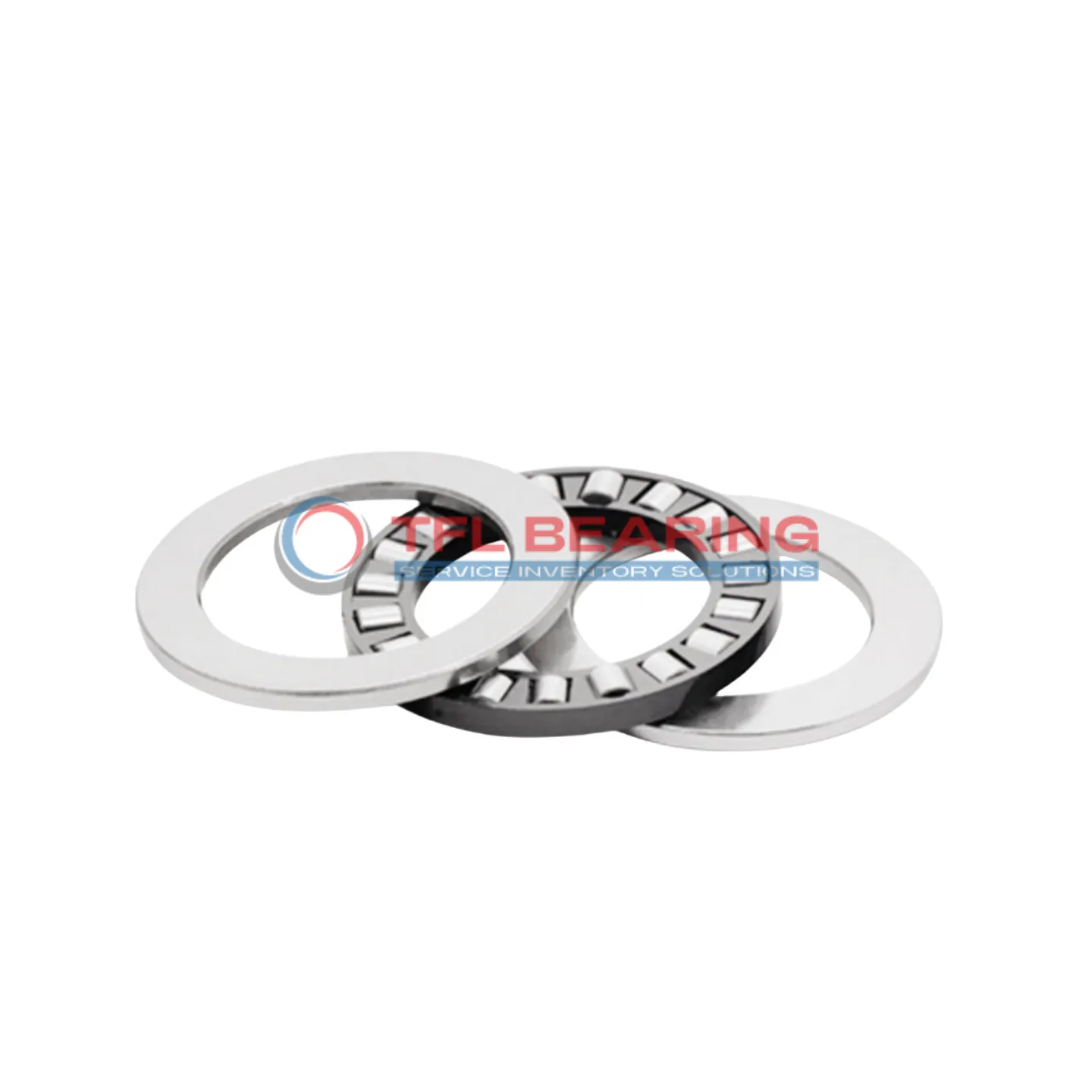

Single Row Cylindrical Roller Thrust Bearings 81206 TN

Single Row Cylindrical Roller Thrust Bearings 81206 TN

The 81206 TN is a single-row cylindrical roller thrust bearing measuring 30mm by 52mm by 16mm, crafted from sturdy chrome steel. It manages thrust loads up to 11250 lbf and operates smoothly at speeds reaching 4800 RPM.

Its glass fibre reinforced PA66 cage enhances durability while keeping the weight light at just 0.12kg. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

Designed for easy interchangeability with SKF models, it’s a practical choice for replacements. Suitable for applications like heavy machinery or industrial equipment where high thrust loads are expected.

Compliant with RoHS and REACH standards, it ensures safe and efficient use in various settings. The compact design makes it versatile for tight spaces.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 81206 TN
  • size 30 mm x 52 mm x 16 mm
  • Brand TFL
  • Interchangeable brand SKF
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Bearing Type Roller
  • For Load Direction Thrust
  • Number of Rows 1
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.010mm to 0
  • Outer Dia 52 mm
  • Outer Dia Tolerance -0.019mm to 0
  • Width 16 mm
  • Height Tolerance -0.25mm to +0.02mm
  • Outside Diameter Shaft Washer 52 mm
  • Bore Diameter Housing Washer 32 mm
  • Height Shaft Washer 4.25 mm
  • Chamfer Dimension Housing Washer r1,2 (min.) 0.6 mm
  • Washer Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Glass fibre reinforced PA66 cage
  • Dynamic Radial Load 11250 lbf
  • Static Radial Load 30150 lbf
  • Max Speed 4800 rpm
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.12 kg
  • Roller And Cage Thrust Assembly K 81206 TN
  • Shaft Washer WS 81206
  • Housing Washer GS 81206
Single Row Cylindrical Roller Thrust Bearings 81206 TN dimension drawing
Download DWG Download PDF

Features

How Does 81206 TN Bearing Handle Heavy Thrust Loads?

81206 TN Bearing is built with chrome steel washers and rollers, offering robust resistance to high thrust loads.
Its dynamic radial load capacity reaches 11250 lbf, making it suitable for demanding industrial applications.
The glass fibre reinforced PA66 cage ensures smooth operation and reduces friction under heavy loads.
With a maximum speed of 4800 rpm, it delivers reliable performance in various conditions.

What Makes 81206 TN Bearing Suitable for High-Temperature Applications?

81206 TN Bearing operates effectively within a temperature range of -30° to 110 °C.
The chrome steel construction maintains stability and performance even in high-temperature environments.
Its glass fibre reinforced PA66 cage resists heat, ensuring durability under thermal stress.
This makes 81206 TN Bearing a dependable choice for machinery exposed to varying temperatures.

Engineered for Precision: 81206 TN Bearing

81206 TN Bearing features precise dimensions with a bore diameter tolerance of -0.010mm to 0.
The cylindrical roller design ensures accurate alignment and smooth thrust load distribution.
Its chrome steel rollers and washers provide consistent performance in precision applications.
The reinforced PA66 cage further enhances its reliability and longevity.

Application

Industrial Uses of 81206 TN Bearing
81206 TN Bearing is commonly used in heavy machinery like hydraulic presses and industrial gearboxes, where its cylindrical roller design efficiently handles high thrust loads. The glass fibre reinforced PA66 cage ensures smooth operation even at speeds up to 4800 rpm.

Where Is 81206 TN Bearing Used?
In automotive applications, 81206 TN Bearing is found in clutch assemblies and transmission systems, providing reliable performance under constant thrust forces. Its metric sizing makes it a versatile choice for various vehicle models.

Built for Heavy-Duty Use: 81206 TN Bearing
For automation equipment, 81206 TN Bearing supports robotic arms and conveyor systems, thanks to its durable chrome steel construction. The precise tolerances ensure minimal vibration during high-speed operations.

Medical vs Industrial: Where 81206 TN Bearing Excels
While 81206 TN Bearing is ideal for industrial presses, its precision also suits medical devices like dental drills. The temperature range of -30° to 110°C allows for consistent performance in diverse environments.

Practical Applications of 81206 TN Bearing
In consumer electronics, 81206 TN Bearing can be found in high-performance printers, where its low-maintenance design reduces downtime. The lightweight construction at 0.12 kg makes it easy to integrate into compact devices.
