Single Row Cylindrical Roller Thrust Bearings 812/1000 M

Brand: TFL Bearing Interchangeable: SKF 812/1000 M 1000 mm x 1320 mm x 250 mm Metric
Part number: 812/1000 M
Single Row Cylindrical Roller Thrust Bearings 812/1000 M
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia1,000 mm
Bore Dia Tolerance-0.100mm to 0
Outer Dia1,320 mm
Outer Dia Tolerance-0.160mm to 0
Width250 mm
Height Tolerance-1.00mm to +0.08mm
Outside Diameter Shaft Washer1,308 mm
Bore Diameter Housing Washer1,012 mm
Height Shaft Washer75 mm
Chamfer Dimension Housing Washer r1,2 (min.)9.5 mm
Performance
Dynamic Radial Load2,295,000 lbf
Static Radial Load13,500,000 lbf
Max Speed200 rpm
Temperature Range-30° to 110 °C
Characteristics
System of MeasurementMetric
Roller Bearing TypeCylindrical
Bearing TypeRoller
For Load DirectionThrust
Number of Rows1
Weight965 kg
Shaft WasherIW-812/1000
Housing WasherOW-812/1000
Material
Washer MaterialChrome Steel
Roller MaterialChrome Steel
Cage MaterialMachined brass cage
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

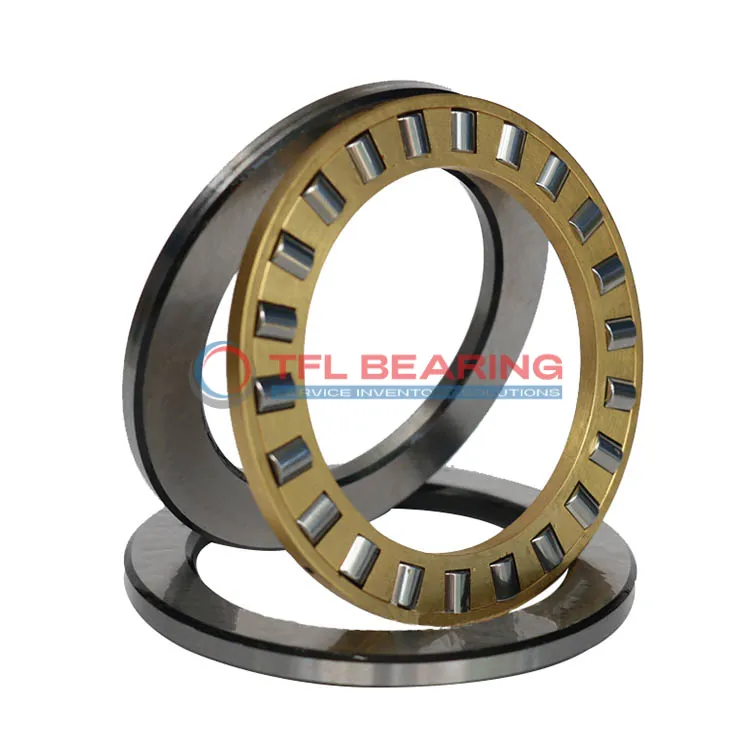

The 812/1000 M is a single-row cylindrical roller thrust bearing with a large 1000mm bore and 1320mm outer diameter, built from sturdy chrome steel. It handles heavy thrust loads up to 2295000 lbf and operates smoothly at speeds up to 200 RPM.

Its machined brass cage enhances durability, while the precise tolerances ensure reliable performance under stress. The bearing works in temperatures from -30°C to 110°C, making it suitable for tough environments.

This model is interchangeable with SKF bearings, offering a practical replacement option. Ideal for heavy machinery like industrial presses or large gear systems where high thrust loads are common.

Weighing 965kg, it’s designed for robust applications. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Features

How Does 812/1000 M Bearing Handle Heavy Loads?

812/1000 M Bearing features chrome steel washers and rollers, providing robust resistance to extreme thrust loads.
Its dynamic radial load capacity reaches 2,295,000 lbf, making it suitable for heavy-duty industrial applications.
The machined brass cage ensures precise roller alignment, enhancing durability and reducing friction.
With a maximum speed of 200 rpm, it delivers reliable performance under high-stress conditions.

What Ensures Smooth Operation in 812/1000 M Bearing?

812/1000 M Bearing’s cylindrical roller design minimises friction, ensuring smooth and efficient operation.
The chrome steel construction resists wear, maintaining performance even under substantial loads.
Its precise tolerances and machined brass cage contribute to consistent, low-noise running.
This bearing operates effectively within a temperature range of -30° to 110°C.

Built for Reliability: 812/1000 M Bearing

812/1000 M Bearing is engineered for long-lasting performance in demanding environments.
Its chrome steel components and machined brass cage provide excellent durability and load distribution.
The bearing’s static radial load capacity of 13,500,000 lbf ensures reliability in heavy applications.
With RoHS and REACH compliance, it meets stringent environmental and safety standards.

Application

Industrial Uses of 812/1000 M Bearing
812/1000 M Bearing is commonly used in heavy machinery, such as large presses and rolling mills, where its cylindrical roller design handles significant thrust loads. The machined brass cage ensures smooth operation even under high stress.

What Makes 812/1000 M Bearing a Preferred Choice?
With a bore diameter of 1000 mm, 812/1000 M Bearing fits perfectly in large-scale industrial applications like wind turbines and hydroelectric plants. Its chrome steel construction offers excellent durability in demanding environments.

Built for Heavy-Duty Use: 812/1000 M Bearing
812/1000 M Bearing excels in applications like ship propulsion systems, where its static radial load capacity of 13,500,000 lbf provides reliable performance. The temperature range of -30° to 110°C makes it versatile for various climates.

Automotive vs Aerospace: Applications of 812/1000 M Bearing
In automotive testing rigs, 812/1000 M Bearing supports high thrust loads during durability tests. For aerospace, its precision engineering ensures stability in ground support equipment.

Perfect Fit for Automation: 812/1000 M Bearing
812/1000 M Bearing is ideal for automated production lines, particularly in steel manufacturing, where its large size and load capacity are essential. The metric dimensions ensure compatibility with international machinery standards.
