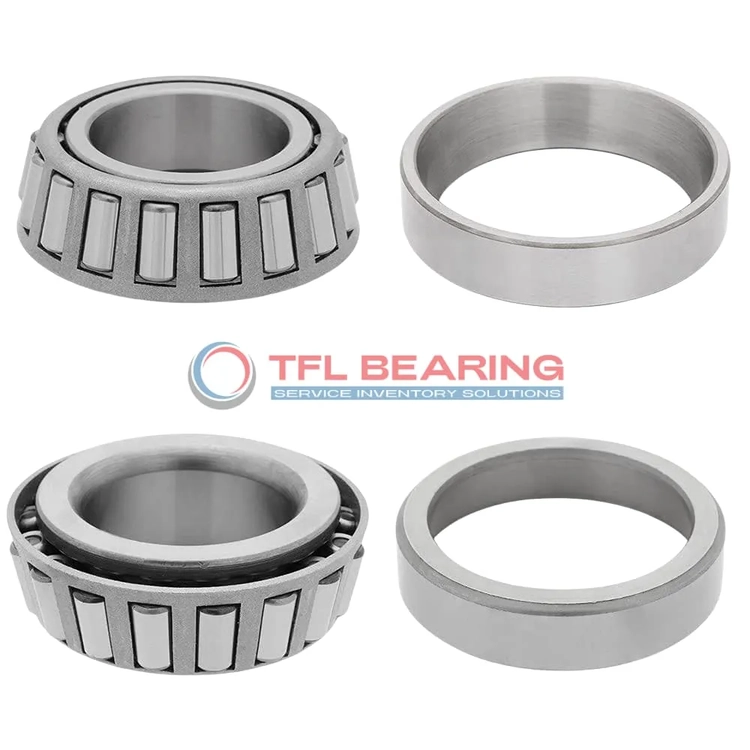

TS (Single Row Tapered Roller Bearings) (Imperial) 02474W-02420

TS (Single Row Tapered Roller Bearings) (Imperial) 02474W-02420

The 02474W-02420 is a single-row tapered roller bearing with a 1.125″ bore and 2.6875″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 14300 lbf radially and 2650 lbf in thrust, making it versatile for various applications.

Its open design allows easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for machinery like gearboxes or axles where combined loads are common.

Weighing just 0.9 lb, it’s lightweight yet robust for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 02474W-02420
  • Brand TFL
  • Interchangeable Timken
  • Size 1.125" x 2.6875" x 0.8751"
  • Bore Dia 1.125"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 2.6875"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.875"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.6875"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.8751"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.03"
  • Cup Backface ToClear Radius 0.06"
  • Cone Frontface Backing Diameter 1.42"
  • Cone Backface Backing Diameter 1.44"
  • Cup Frontface Backing Diameter 2.52"
  • Cup Backface Backing Diameter 2.32"
  • Cage Cone Frontface Clearance 0.06"
  • Cage Cone Backface Clearance 0.03"
  • Effective Center Location -0.2"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 02474W
  • Cup Part Number 2420
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 2400
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 14300 lbf
  • Static Radial Load 15800 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 3720 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 2650 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.9 lb

Features

How Does 02474W-02420 Bearing Handle Combined Loads?

02474W-02420 Bearing is crafted with chrome steel rings and rollers, offering robust performance under combined radial and thrust loads.
Its dynamic radial load capacity reaches 14,300 lbf, making it suitable for heavy-duty applications.
The steel cage ensures proper roller alignment, enhancing durability and reducing friction.
With a temperature range of -30° to 110°C, it performs reliably in various operating conditions.

Why Choose 02474W-02420 Bearing for Precision Tasks?

02474W-02420 Bearing features precise cone and cup dimensions, ensuring accurate alignment in machinery.
The tapered roller design distributes loads evenly, improving efficiency and reducing wear.
Its standard radial clearance and ABEC-1 rating make it a dependable choice for precision applications.
The open design allows for easy lubrication, maintaining smooth operation over time.

Built for Durability: 02474W-02420 Bearing

02474W-02420 Bearing’s chrome steel construction resists wear, extending its service life in demanding environments.
The single-row tapered roller design handles high radial and thrust loads with ease.
Its effective center location ensures stable performance, even under varying load conditions.
With a weight of 0.9 lb, it balances strength and portability for versatile use.

Application

Industrial Uses of 02474W-02420 Bearing
02474W-02420 Bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined loads efficiently. The chrome steel construction ensures durability even in tough working conditions.

In automotive applications, 02474W-02420 Bearing fits well in wheel hubs and differential systems, providing reliable performance under varying loads. Its imperial sizing makes it a convenient choice for North American vehicle models.

For industrial conveyor systems, 02474W-02420 Bearing offers smooth operation thanks to its standard radial clearance. The open design allows for easy lubrication, extending its service life in continuous-use environments.

What Makes 02474W-02420 Bearing a Preferred Choice?
02474W-02420 Bearing works well in agricultural machinery, such as tractors, where its robust design withstands dirt and debris. The steel cage adds extra strength for demanding tasks.

In mining equipment, 02474W-02420 Bearing handles high radial and thrust loads without compromising performance. Its temperature range ensures reliability in both hot and cold operating conditions.

Built for Heavy-Duty Use: 02474W-02420 Bearing
02474W-02420 Bearing is ideal for gearboxes in industrial settings, where precision and load capacity matter. The tapered rollers distribute stress evenly, reducing wear over time.

For railway applications, 02474W-02420 Bearing provides stability in axle boxes, ensuring smooth rides. Its compatibility with Timken models makes replacements straightforward.

Automotive vs Aerospace: Applications of 02474W-02420 Bearing
In automotive drivetrains, 02474W-02420 Bearing supports high torque loads, making it suitable for trucks and off-road vehicles. The inch measurements align with many US-made components.

For aerospace ground equipment, 02474W-02420 Bearing offers reliable performance in maintenance tools and loading systems. Its ABEC-1 rating balances precision and cost-effectiveness.
