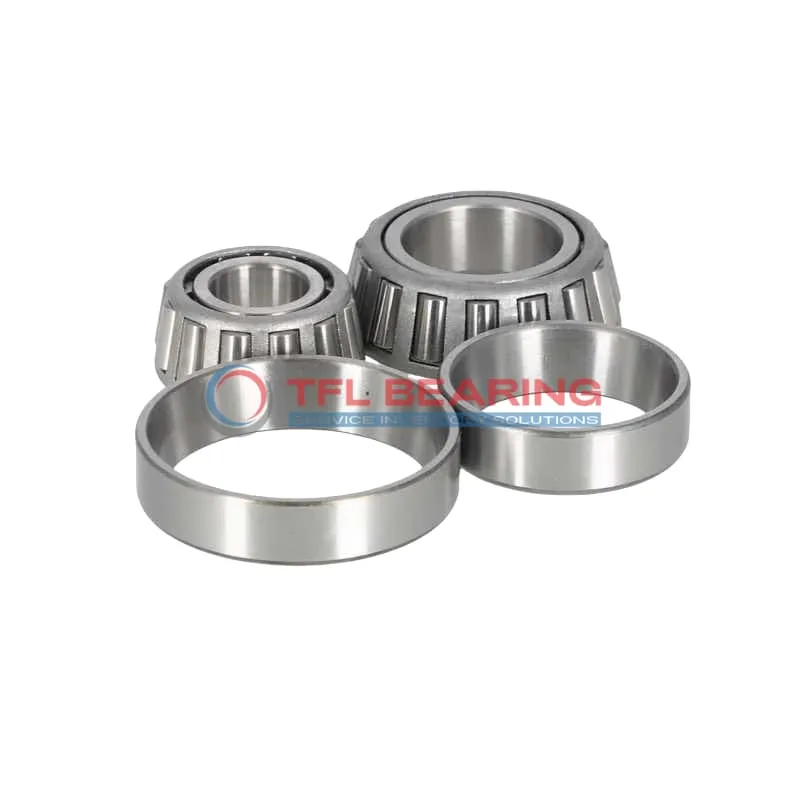

TS (Single Row Tapered Roller Bearings) (Imperial) EE224115-224204

TS (Single Row Tapered Roller Bearings) (Imperial) EE224115-224204

The EE224115-224204 is a single-row tapered roller bearing with an 11.5″ bore and 20.5″ outer diameter, built from sturdy chrome steel. It handles combined loads up to 439,000 lbf radially and 63,900 lbf thrust, making it suitable for heavy-duty applications.

Its pin-type cage design ensures smooth operation, while the open seal allows for easy lubrication. The bearing works in temperatures from -30°C to 110°C, offering reliable performance in various conditions.

This model is interchangeable with Timken bearings, providing a practical replacement option. Ideal for industrial machinery or large equipment where high load capacity is needed.

Weighing 203.90 lb, it’s robust and durable. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number EE224115-224204
  • Brand TFL
  • Interchangeable Timken
  • Size 11.5" x 20.5" x 4.25"
  • Bore Dia 11.5"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 20.5"
  • Outer Dia Tolerance +0.002" to 0
  • Cone Width 4.25"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 3"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 4.25"
  • Width Tolerance +0.014" to -0.01"
  • Cone Backface ToClear Radius 0.25"
  • Cup Backface ToClear Radius 0.250"
  • Cone Frontface Backing Diameter 13.66"
  • Cone Backface Backing Diameter 13.03"
  • Cup Frontface Backing Diameter 18.62"
  • Cup Backface Backing Diameter 18.43"
  • Cage Cone Frontface Clearance 0.29"
  • Cage Cone Backface Clearance 0.55"
  • Effective Center Location -0.78"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number EE224115
  • Cup Part Number 224204
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 224000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Pin-Type
  • Dynamic Radial Load 439000 lbf
  • Static Radial Load 749000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 114000 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 63900 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 203.90 lb

Features

Why Choose EE224115-224204 Bearing for Combined Loads?

EE224115-224204 Bearing is built with chrome steel rings and rollers, offering robust performance under combined radial and thrust loads.
Its dynamic radial load capacity reaches 439,000 lbf, making it suitable for heavy-duty industrial applications.
The pin-type cage ensures proper roller alignment, enhancing durability and reducing friction.
With a temperature range of -30° to 110°C, it performs reliably in various operating conditions.

How Is EE224115-224204 Bearing Engineered for Reliability?

EE224115-224204 Bearing features a single-row tapered roller design, optimised for high load capacity and long service life.
The chrome steel construction resists wear, while the standard radial clearance allows for smooth operation.
Its dynamic thrust rating of 63,900 lbf ensures consistent performance in demanding environments.
The bearing’s ABEC-1 rating confirms its precision and reliability for industrial use.

Designed for Durability: EE224115-224204 Bearing

EE224115-224204 Bearing’s tapered roller design distributes loads evenly, reducing stress on individual components.
The chrome steel material enhances resistance to wear, extending the bearing’s operational lifespan.
With a static radial load capacity of 749,000 lbf, it handles extreme conditions effortlessly.
Its open design simplifies lubrication, ensuring consistent performance over time.

Application

Industrial Uses of EE224115-224204 Bearing
EE224115-224204 Bearing is commonly used in heavy machinery like mining equipment and construction vehicles, where its tapered roller design handles combined loads efficiently. The chrome steel construction ensures durability even in tough working conditions.

Where Is EE224115-224204 Bearing Used?
You’ll often find EE224115-224204 Bearing in large industrial gearboxes and power transmission systems, thanks to its high dynamic radial load capacity. Its pin-type cage also helps maintain roller alignment under heavy stress.

Built for Heavy-Duty Use: EE224115-224204 Bearing
EE224115-224204 Bearing excels in applications like agricultural machinery and railway axles, where reliability is key. The standard radial clearance options make it adaptable to various operational needs.

Automotive vs Aerospace: Applications of EE224115-224204 Bearing
In automotive settings, EE224115-224204 Bearing supports drivetrain components like differentials, while in aerospace, it’s used in landing gear systems. Its inch sizing ensures compatibility with imperial-based designs.

Key Fields for EE224115-224204 Bearing
EE224115-224204 Bearing is a go-to choice for wind turbine yaw systems due to its high static thrust load rating. The open seal design allows for easy lubrication, extending service life in remote installations.
