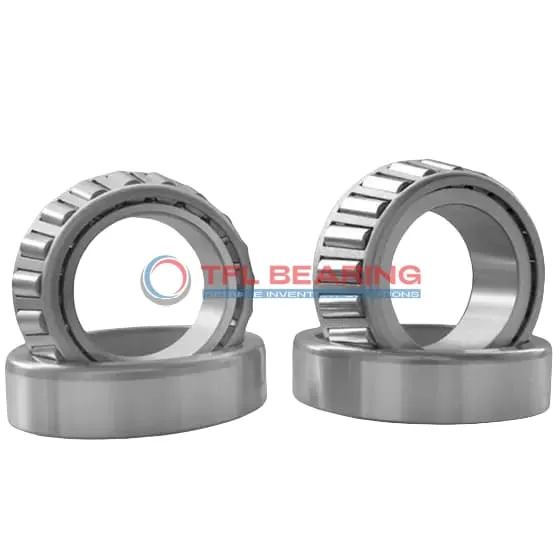

TS (Single Row Tapered Roller Bearings) (Imperial) HH234032-HH234010V

TS (Single Row Tapered Roller Bearings) (Imperial) HH234032-HH234010V

The HH234032-HH234010V is a single-row tapered roller bearing with a 5.5″ bore and 12.125″ outer diameter, crafted from durable chrome steel. It handles combined loads up to 259,000 lbf radially and 37,500 lbf thrust, making it robust for heavy-duty use.

Its pin-type cage ensures smooth operation, while the open design allows for easy lubrication. The bearing performs well in temperatures from -30°C to 110°C, suitable for various industrial environments.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for applications like heavy machinery or construction equipment where high load capacity is essential.

Weighing 68.7 lb, it’s built to last and complies with RoHS and REACH standards for safety and environmental care.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HH234032-HH234010V
  • Brand TFL
  • Interchangeable Timken
  • Size 5.5" x 12.125" x 3.5"
  • Bore Dia 5.5"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 12.125"
  • Outer Dia Tolerance +0.002" to 0
  • Cone Width 3.6875"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 2.625"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 3.5"
  • Width Tolerance +0.014" to -0.01"
  • Cone Backface ToClear Radius 0.380"
  • Cup Backface ToClear Radius 0.270"
  • Cone Frontface Backing Diameter 7.44"
  • Cone Backface Backing Diameter 7.09"
  • Cup Frontface Backing Diameter 11.26"
  • Cup Backface Backing Diameter 10.87"
  • Cage Cone Frontface Clearance 0.07"
  • Cage Cone Backface Clearance 0.36"
  • Effective Center Location -1.04"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number HH234032
  • Cup Part Number HH234010V
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series HH234000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Pin-Type
  • Dynamic Radial Load 259000 lbf
  • Static Radial Load 354000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 67200 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 37500 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 68.700 lb

Features

Performance Features of HH234032-HH234010V Bearing

HH234032-HH234010V Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 259,000 lbf, making it suitable for heavy-duty applications.
The pin-type cage ensures proper roller alignment, reducing friction and enhancing durability.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

How Is HH234032-HH234010V Bearing Engineered for Reliability?

HH234032-HH234010V Bearing features a single-row tapered roller design, optimised for combined load handling.
The chrome steel construction provides excellent wear resistance, extending its service life.
Its dynamic thrust rating of 37,500 lbf ensures consistent performance under demanding conditions.
The standard radial clearance allows for smooth operation in diverse applications.

Built for Durability: HH234032-HH234010V Bearing

HH234032-HH234010V Bearing’s robust design includes a pin-type cage for stable roller positioning.
Its static radial load capacity of 354,000 lbf makes it ideal for high-stress environments.
The bearing operates efficiently within a wide temperature range, from -30° to 110°C.
With ABEC-1 precision, it balances performance and reliability in industrial settings.

Steel vs Ceramic Bearings: Strengths of HH234032-HH234010V Bearing

HH234032-HH234010V Bearing uses chrome steel for both rings and rollers, ensuring high load capacity.
The material choice provides excellent durability and resistance to wear in tough conditions.
Its dynamic radial rating of 67,200 lbf at 90 million revolutions highlights long-term reliability.
The open design allows for easy lubrication, maintaining optimal performance over time.

Application

Industrial Uses of HH234032-HH234010V Bearing
HH234032-HH234010V Bearing is commonly used in heavy machinery like mining equipment and construction vehicles, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in harsh working conditions.

Where Is HH234032-HH234010V Bearing Used?
You’ll often find HH234032-HH234010V Bearing in agricultural machinery, such as tractors and harvesters, where its high radial load capacity supports heavy-duty operations. The pin-type cage adds stability during prolonged use.

Built for Heavy-Duty Use: HH234032-HH234010V Bearing
HH234032-HH234010V Bearing excels in industrial gearboxes, providing reliable performance under both radial and thrust loads. Its standard radial clearance makes it versatile for various applications.

Automotive vs Aerospace: Applications of HH234032-HH234010V Bearing
In automotive systems, HH234032-HH234010V Bearing is ideal for wheel hubs and differentials, thanks to its robust design. For aerospace, it’s suited for auxiliary equipment where precision and reliability are key.

Perfect Fit for Automation: HH234032-HH234010V Bearing
HH234032-HH234010V Bearing works well in automated conveyor systems, ensuring smooth movement under heavy loads. The open seal type allows for easy lubrication and maintenance.
