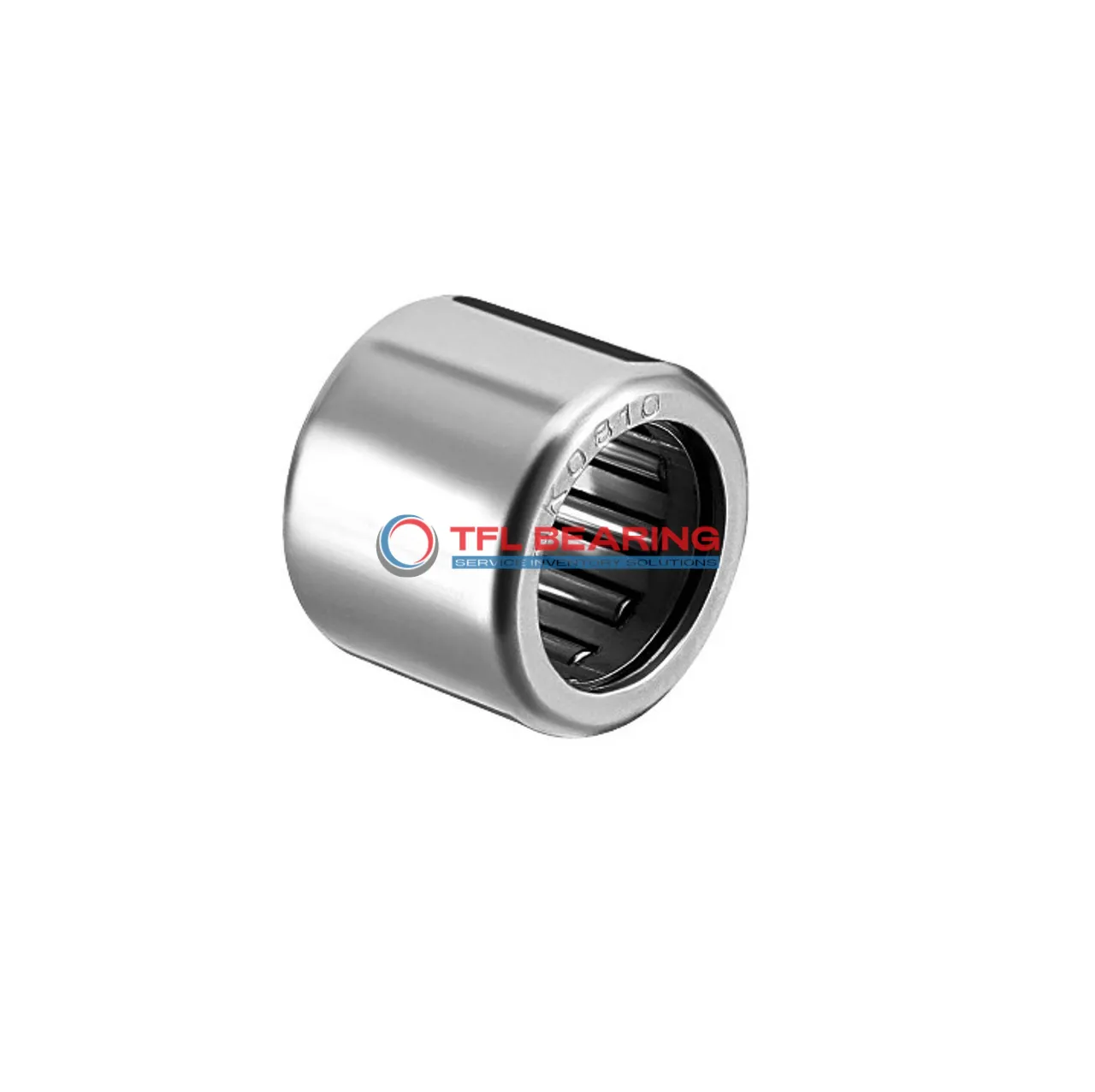

Drawn Cup Needle Roller Bearings SCE1011-P

Drawn Cup Needle Roller Bearings SCE1011-P

The SCE1011-P is a drawn cup needle roller bearing with a 0.625″ bore and 0.8125″ outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 2338 lbf and spins smoothly at speeds up to 16000 RPM.
Its single-seal design helps keep contaminants out while maintaining easy lubrication access. The press-fit mounting ensures a secure attachment to shafts.
This bearing is ideal for applications like automotive components or small machinery where space is limited but durability is key. It operates well in temperatures from -20°C to 110°C.
Compatible with INA bearings, it offers a practical replacement option. The compact design (0.6874″ width) makes it suitable for tight spaces without sacrificing strength. RoHS compliant for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SCE1011-P
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 0.625"
  • Bore Dia Tolerance Refer to note on the right drawing
  • Outer Dia 0.8125"
  • Outer Dia Tolerance Not Rated
  • Width 0.6874"
  • Width Tolerance -0.01" to 0"
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Single Seal
  • Series Open End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 2338 lbf
  • Static Radial Load 3664 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 16000 rpm
  • Weight 12 g
Drawn Cup Needle Roller Bearings SCE1011-P dimension drawing
Download DWG Download PDF

Features

Why Choose SCE1011-P Bearing for Precision Tasks?
SCE1011-P Bearing is crafted with steel rings and needles, offering excellent radial load capacity up to 2338 lbf.
Its press-fit shaft mount ensures secure installation, reducing the risk of slippage during operation.
The single-seal design helps retain lubrication, enhancing performance in high-speed applications.
With a maximum speed of 16,000 rpm, it delivers reliable precision for demanding tasks.

Application

Industrial Uses of SCE1011-P Bearing
SCE1011-P Bearing is commonly used in industrial machinery, especially in compact spaces where high radial load capacity is needed, like conveyor systems and gearboxes. Its steel construction ensures durability in demanding environments.
Where Is SCE1011-P Bearing Used?
In automotive applications, SCE1011-P Bearing fits well in transmission systems and steering mechanisms, thanks to its press-fit design and reliable performance. The inch sizing makes it a good match for many American and British vehicle models.
Built for Heavy-Duty Use: SCE1011-P Bearing
For automation equipment, SCE1011-P Bearing works smoothly in robotic arms and assembly lines, handling frequent movements with ease. The single seal helps keep contaminants out, extending its service life.
Medical vs Industrial: Where SCE1011-P Bearing Excels
In medical devices, SCE1011-P Bearing offers precision in tools like surgical handpieces, where consistent operation is vital. Its steel components provide the necessary strength for high-speed rotations.
Perfect Fit for Automation: SCE1011-P Bearing
SCE1011-P Bearing is also found in consumer electronics, such as printers and power tools, where its compact size and efficiency are key. The lubrication requirement ensures smooth operation over time.
