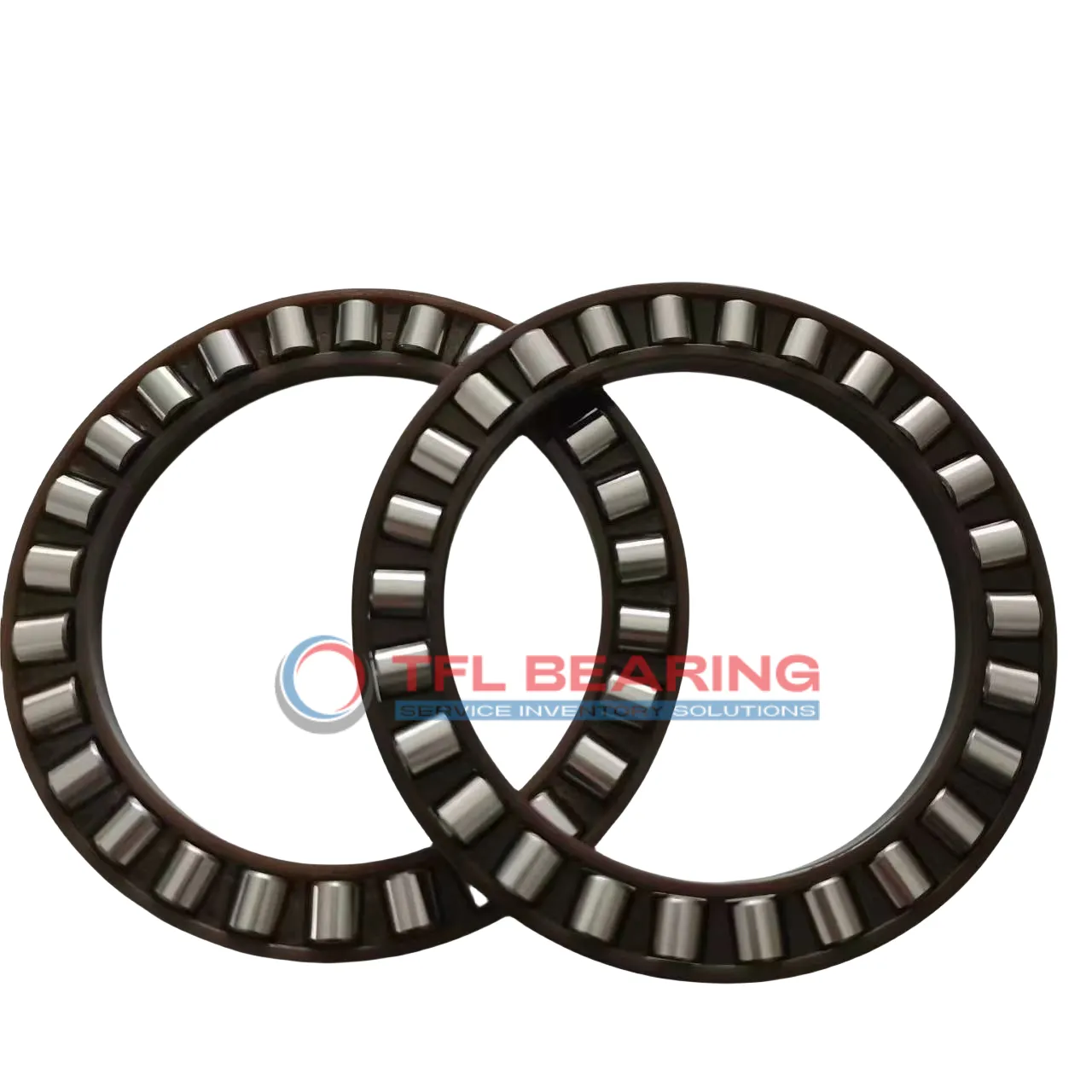

Single Row Cylindrical Roller Thrust Bearings assembly K 81215 TN

Single Row Cylindrical Roller Thrust Bearings assembly K 81215 TN

The K 81215 TN is a single-row cylindrical roller thrust bearing with a 75mm bore and 110mm outer diameter, built to handle heavy thrust loads. Its compact 11mm width makes it suitable for tight spaces, while the chrome steel rollers ensure durability.

This bearing can manage dynamic radial loads up to 30825 lbf and static loads up to 110250 lbf, spinning smoothly at speeds up to 2400 RPM. The glass fibre reinforced PA66 cage reduces friction and wear for longer service life.

Designed for high-load applications, it works well in temperatures from -30°C to 110°C. The bearing is interchangeable with SKF models, offering a reliable replacement option.

Weighing just 0.2kg, it’s lightweight yet robust, ideal for industrial machinery or heavy equipment where thrust loads are common. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number K 81215 TN
  • Brand TFL
  • Interchangeable brand SKF
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Bearing Type Roller
  • For Load Direction Thrust
  • Number of Rows 1
  • Bore Dia 75 mm
  • Bore Dia Tolerance +0.06mm to +0.25mm
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.41mm to -0.95mm
  • Diameter Roller 11 mm
  • Raceway Diameter (min.) Roller And Cage Thrust Assembly 79 mm
  • Raceway Diameter (max.) Roller And Cage Thrust Assembly 106 mm
  • Roller Material Chrome Steel
  • Cage Material Glass fibre reinforced PA66 cage
  • Dynamic Radial Load 30825 lbf
  • Static Radial Load 110250 lbf
  • Max Speed 2400 rpm
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.2 kg
  • Shaft Washer WS 81215
  • Housing Washer GS 81215

Features

Performance Features of K 81215 TN Bearing

K 81215 TN Bearing is designed with chrome steel rollers, offering strong resistance to heavy thrust loads.
Its dynamic radial load capacity reaches 30825 lbf, ensuring reliable performance in demanding applications.

The glass fibre reinforced PA66 cage keeps the rollers aligned, reducing wear and extending service life.
With a maximum speed of 2400 rpm, it balances durability and efficiency in various conditions.

K 81215 TN Bearing operates effectively in temperatures ranging from -30° to 110°C.
Its robust construction makes it suitable for high-load industrial applications.

Application

Industrial Uses of K 81215 TN Bearing
K 81215 TN Bearing is commonly used in heavy machinery, such as hydraulic presses and industrial gearboxes, where its cylindrical roller design efficiently handles high thrust loads. The glass fibre reinforced PA66 cage ensures smooth operation even at high speeds.

Where Is K 81215 TN Bearing Used?
In automotive applications, K 81215 TN Bearing is ideal for transmissions and clutch systems, providing reliable performance under demanding conditions. Its metric sizing makes it a versatile choice for various vehicle models.

Built for Heavy-Duty Use: K 81215 TN Bearing
This bearing excels in construction equipment, like cranes and excavators, thanks to its robust chrome steel rollers and high static load capacity. The temperature range of -30° to 110°C ensures durability in harsh environments.

Medical vs Industrial: Where K 81215 TN Bearing Excels
While not typically used in medical devices, K 81215 TN Bearing is a staple in industrial settings, particularly in conveyor systems and pumps. Its reinforced cage material offers long-lasting performance in continuous operation.

Automation and Robotics: K 81215 TN Bearing in Action
For automated systems, K 81215 TN Bearing provides precise movement in robotic arms and assembly lines. The high dynamic radial load capacity ensures reliability in repetitive tasks.
