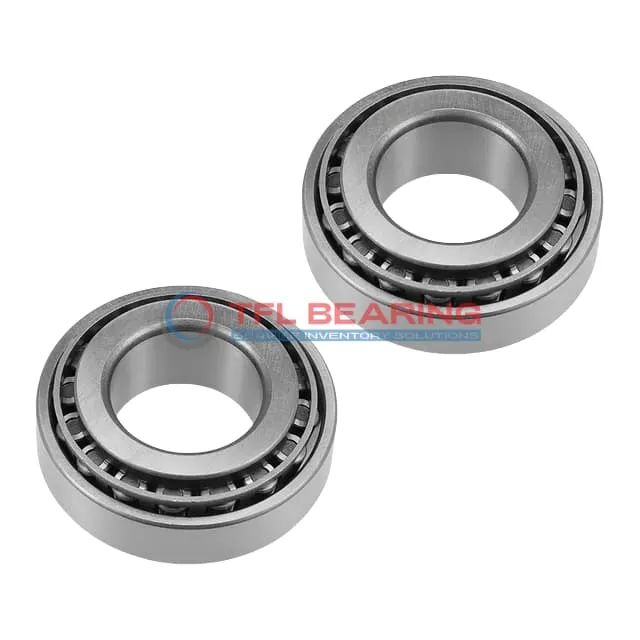

TS (Single Row Tapered Roller Bearings) (Imperial) 95524V-95926

TS (Single Row Tapered Roller Bearings) (Imperial) 95524V-95926

The 95524V-95926 is a single-row tapered roller bearing with a 5.25″ bore and 9.25″ outer diameter, made from sturdy chrome steel. It handles combined loads up to 168,000 lbf radially and 27,500 lbf thrust, suitable for heavy-duty applications.

Its open design allows easy lubrication, while the steel cage ensures durability under high stress. The bearing operates smoothly in temperatures from -30°C to 110°C.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for industrial machinery or automotive systems where combined loads are common.

Weighing 24.6 lb, it’s built to last with standard radial clearance options. Compliant with RoHS and REACH standards for safe use.

The 95524V-95926 features precise tolerances, with a cone width of 2.5″ and cup width of 1.9375″. Its effective center location at -0.55″ ensures stable performance under load.

Designed for ABEC-1 precision, it offers reliable performance without over-engineering. The tapered rollers distribute loads evenly, reducing wear over time.

Perfect for applications like conveyor systems or heavy equipment. Its robust construction handles both radial and thrust loads with ease.

Maintenance is straightforward thanks to its open seal type. The bearing’s chrome steel components resist corrosion and extend service life.

With a dynamic radial rating of 43,400 lbf for 90 million revolutions, this bearing is built for longevity. The steel cage keeps rollers aligned, even at high speeds.

Its standard radial clearance can be upgraded to C3, C4, or C5 for specific needs. The bearing’s design simplifies installation and alignment in machinery.

Commonly used in mining or construction equipment, where durability is key. The tapered roller design ensures smooth rotation under heavy loads.

Lubrication is required, but the open seal makes regreasing hassle-free. Compliant with international safety standards for peace of mind.

The bearing’s cone and cup are sold separately (95524V and 95926), offering flexibility. Backing diameters range from 5.87″ to 8.58″ for secure fitting.

Clearance radii of 0.03″ (cone) and 0.130″ (cup) prevent stress concentration. Cage clearances of 0.19″ front and 0.22″ back allow for thermal expansion.

Suited for gearboxes or large rotating assemblies in manufacturing plants. Its imperial sizing makes it compatible with older machinery.

Despite its weight, the bearing’s design simplifies handling during installation. The chrome steel construction resists pitting and extends maintenance intervals.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 95524V-95926
  • Brand TFL
  • Interchangeable Timken
  • Size 5.25" x 9.25" x 2.5"
  • Bore Dia 5.25"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 9.25"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 2.5"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.9375"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 2.5"
  • Width Tolerance +0.014" to -0.01"
  • Cone Backface ToClear Radius 0.03"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 6.80"
  • Cone Backface Backing Diameter 5.87"
  • Cup Frontface Backing Diameter 8.58"
  • Cup Backface Backing Diameter 8.23"
  • Cage Cone Frontface Clearance 0.19"
  • Cage Cone Backface Clearance 0.22"
  • Effective Center Location -0.55"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 95524V
  • Cup Part Number 95926
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 95000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 168000 lbf
  • Static Radial Load 209000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 43400 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 27500 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 24.6 lb

Features

Why Choose 95524V-95926 Bearing for Precision Tasks?

95524V-95926 Bearing is crafted with chrome steel rings and rollers, ensuring durability and precision in combined load applications.
Its dynamic radial load capacity reaches 168,000 lbf, making it suitable for heavy-duty operations.
The steel cage maintains roller alignment, reducing friction and extending the bearing’s service life.
With a temperature range of -30° to 110°C, it performs reliably in various environments.

How Is 95524V-95926 Bearing Engineered for Reliability?

95524V-95926 Bearing features a single-row tapered roller design, optimised for combined load handling.
The chrome steel construction resists wear, while the standard radial clearance ensures smooth operation.
Its dynamic thrust rating of 27,500 lbf highlights its capability in demanding conditions.
The bearing requires lubrication, but its robust design minimises maintenance needs.

Built for Durability: 95524V-95926 Bearing

95524V-95926 Bearing’s chrome steel components provide excellent resistance to wear and fatigue.
The tapered roller design efficiently distributes loads, enhancing performance under stress.
With a static radial load capacity of 209,000 lbf, it excels in high-load applications.
Its ABEC-1 rating ensures consistent precision and reliability.

Steel vs Ceramic Bearings: Strengths of 95524V-95926 Bearing

95524V-95926 Bearing uses chrome steel for both rings and rollers, offering superior strength and durability.
The steel cage ensures stable roller movement, reducing operational noise.
Its dynamic radial rating of 43,400 lbf at 90 million revolutions demonstrates long-term reliability.
The bearing’s standard radial clearance allows for easy installation and optimal performance.

Application

Industrial Uses of 95524V-95926 Bearing
95524V-95926 Bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

In automotive applications, 95524V-95926 Bearing supports axle systems and wheel hubs, providing reliable performance under high radial and thrust loads. Its imperial sizing makes it a preferred choice for North American vehicle models.

For industrial fans and pumps, 95524V-95926 Bearing’s open design allows for easy lubrication, extending service life in continuous operation. The steel cage adds stability, reducing wear over time.

Where Is 95524V-95926 Bearing Used?
95524V-95926 Bearing finds its place in agricultural machinery, such as tractors and harvesters, where robust performance is essential. Its ABEC-1 rating ensures consistent operation under varying loads.

In mining equipment, 95524V-95926 Bearing’s high dynamic radial load capacity makes it suitable for conveyor systems and crushers. The standard radial clearance allows for smooth rotation even under heavy stress.

Built for Heavy-Duty Use: 95524V-95926 Bearing
95524V-95926 Bearing is ideal for railway applications, where its tapered rollers manage both radial and axial forces efficiently. The chrome steel rollers resist wear, even in high-vibration environments.

For oil and gas machinery, 95524V-95926 Bearing’s temperature range (-30° to 110°C) ensures reliability in extreme conditions. The steel cage provides additional strength for long-term use.

Automotive vs Aerospace: Applications of 95524V-95926 Bearing
In automotive systems, 95524V-95926 Bearing is often used in differentials, handling combined loads with ease. Its imperial sizing simplifies integration into existing designs.

For aerospace ground support equipment, 95524V-95926 Bearing’s high static radial load capacity ensures stability during heavy lifting operations. The open design allows for regular maintenance, crucial in aviation environments.
