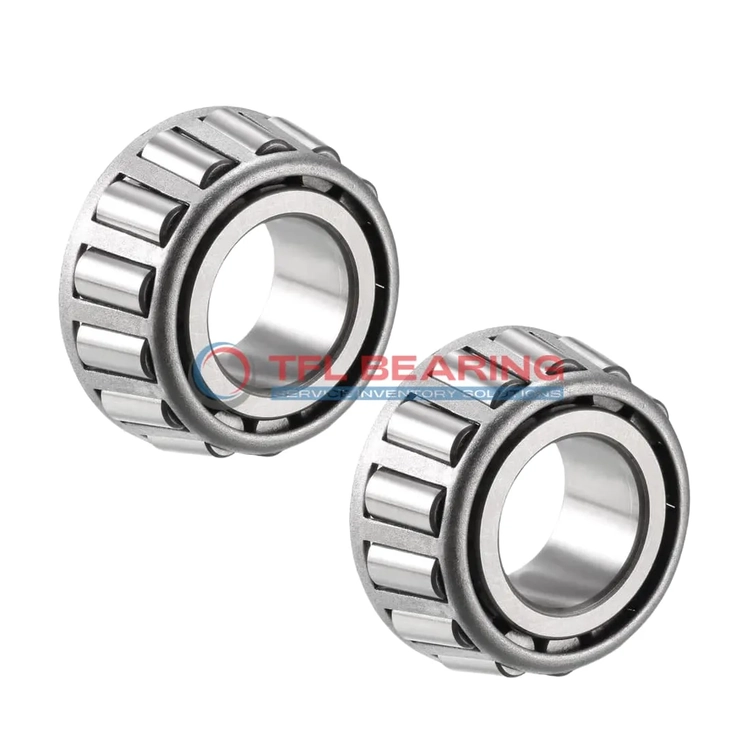

TS (Single Row Tapered Roller Bearings) (Imperial) 95514X-95926

TS (Single Row Tapered Roller Bearings) (Imperial) 95514X-95926

The 95514X-95926 is a single-row tapered roller bearing with a 5.1168″ bore and 9.25″ outer diameter, crafted from robust chrome steel. It handles combined loads up to 127,000 lbf radially and 20,800 lbf thrust, suitable for heavy-duty applications.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, making it versatile for various environments.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery, gearboxes, or heavy equipment where high radial and thrust loads are common.

Weighing 25.7 lb, it’s built for strength and longevity. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 95514X-95926
  • Brand TFL
  • Interchangeable Timken
  • Size 5.1168" x 9.25" x 2.5"
  • Bore Dia 5.1168"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 9.25"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 2.7053"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.9375"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 2.5"
  • Width Tolerance +0.014" to -0.01"
  • Cone Backface ToClear Radius 0.13"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 6.73"
  • Cone Backface Backing Diameter 5.94"
  • Cup Frontface Backing Diameter 8.58"
  • Cup Backface Backing Diameter 8.23"
  • Cage Cone Frontface Clearance 0.09"
  • Cage Cone Backface Clearance 0.18"
  • Effective Center Location -0.55"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 95514X
  • Cup Part Number 95926
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 95000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 127000 lbf
  • Static Radial Load 179000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 32900 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 20800 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 25.7 lb

Features

Performance Features of 95514X-95926 Bearing

95514X-95926 Bearing is built with chrome steel rings and rollers, offering excellent resistance to combined loads.
Its dynamic radial load capacity reaches 127,000 lbf, making it suitable for heavy-duty applications.
The steel cage ensures proper roller alignment, enhancing durability and reducing wear.
With a temperature range of -30° to 110°C, it performs reliably in various operating conditions.

How Is 95514X-95926 Bearing Engineered for Reliability?

95514X-95926 Bearing features a single-row tapered roller design, optimised for combined load handling.
The chrome steel construction provides strength and longevity, even under high stress.
Its standard radial clearance allows for smooth operation, reducing friction and heat buildup.
This bearing is interchangeable with Timken models, offering flexibility in replacement options.

Built for Durability: 95514X-95926 Bearing

95514X-95926 Bearing’s robust design includes precise cone and cup width tolerances for consistent performance.
The steel cage maintains roller position, preventing misalignment during operation.
With a static radial load capacity of 179,000 lbf, it handles demanding industrial applications.
Its ABEC-1 rating ensures reliable precision in various machinery setups.

Steel vs Ceramic Bearings: Strengths of 95514X-95926 Bearing

95514X-95926 Bearing uses chrome steel for both rollers and rings, providing excellent load-bearing capabilities.
This material choice offers better impact resistance compared to ceramic alternatives in heavy industrial use.
The bearing’s tapered roller design efficiently manages both radial and thrust loads simultaneously.
Its 25.7 lb weight reflects the sturdy construction needed for high-load applications.

Why Choose 95514X-95926 Bearing for Precision Tasks?

95514X-95926 Bearing maintains tight tolerances, with bore and outer diameter variations within 0.001″.
The effective center location design enhances stability during rotation, improving precision.
Its dynamic thrust rating of 20,800 lbf (Ca90) ensures reliable performance over extended use.
The standard radial clearance option provides balanced operation for most industrial requirements.

Application

Industrial Uses of 95514X-95926 Bearing
95514X-95926 Bearing is commonly used in heavy machinery like construction equipment and mining tools, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in harsh working conditions.

In automotive applications, 95514X-95926 Bearing supports axle systems and wheel hubs, providing reliable performance under high radial and thrust loads. Its imperial sizing makes it a preferred choice for North American vehicle manufacturers.

For industrial gearboxes, 95514X-95926 Bearing’s open design allows for easy lubrication, extending service life in high-speed operations. The steel cage adds stability, reducing wear during prolonged use.

Where Is 95514X-95926 Bearing Used?
95514X-95926 Bearing finds its place in agricultural machinery, such as tractors and harvesters, where its robust design withstands heavy loads and rough terrain. The standard radial clearance ensures smooth operation in varying temperatures.

In material handling systems, 95514X-95926 Bearing supports conveyor rollers, offering reliable performance in continuous operation. Its compatibility with Timken models makes it a versatile replacement option.

Built for Heavy-Duty Use: 95514X-95926 Bearing
95514X-95926 Bearing excels in forestry equipment, handling the demanding conditions of log splitters and sawmills. The tapered rollers distribute loads evenly, reducing stress on components.

For railway applications, 95514X-95926 Bearing is used in bogies and drivetrains, where its high dynamic load capacity ensures long-term reliability. The ABEC-1 rating provides sufficient precision for these uses.

Automotive vs Aerospace: Applications of 95514X-95926 Bearing
In automotive settings, 95514X-95926 Bearing is ideal for heavy trucks and buses, offering durability under constant stress. The inch measurements simplify integration into existing designs.

For aerospace ground support equipment, 95514X-95926 Bearing provides dependable performance in load-handling systems. Its temperature range suits both indoor and outdoor applications.
