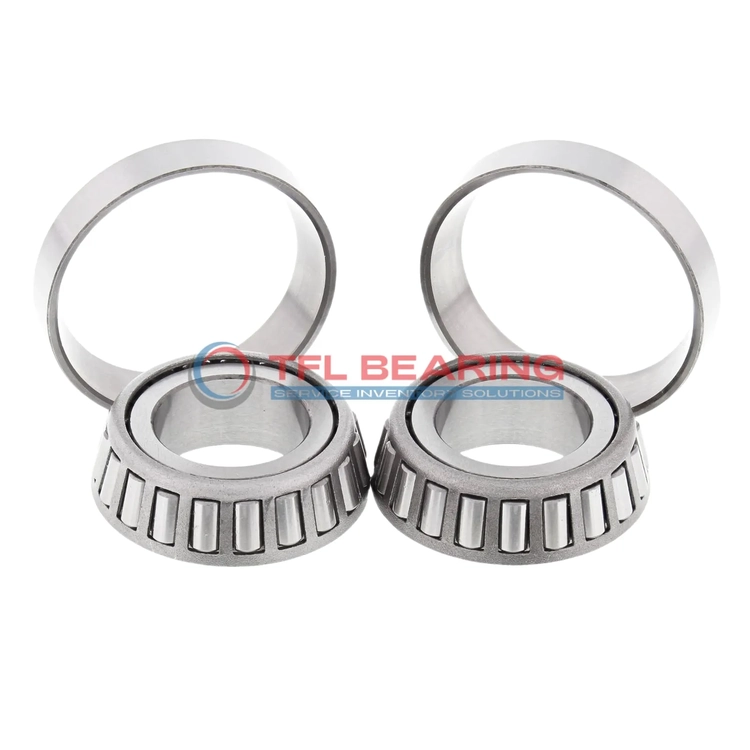

TS (Single Row Tapered Roller Bearings) (Imperial) 837-832

TS (Single Row Tapered Roller Bearings) (Imperial) 837-832

The 837-832 is a single-row tapered roller bearing with a 3″ bore and 6.625″ outer diameter, built from sturdy chrome steel. It handles combined loads up to 109,000 lbf radially and 14,500 lbf thrust, making it robust for heavy-duty use.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for applications like truck axles or industrial gearboxes where combined loads are common.

Weighing 12.7 lb, it’s designed for long-lasting performance. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 837-832
  • Brand TFL
  • Interchangeable Timken
  • Size 3" x 6.625" x 2.125"
  • Bore Dia 3"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 6.625"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 2.219"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.625"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 2.125"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.03"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 4.29"
  • Cone Backface Backing Diameter 3.54"
  • Cup Frontface Backing Diameter 6.14"
  • Cup Backface Backing Diameter 5.87"
  • Cage Cone Frontface Clearance 0.1"
  • Cage Cone Backface Clearance 0.13"
  • Effective Center Location -0.73"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 837
  • Cup Part Number 832
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 835
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 109000 lbf
  • Static Radial Load 117000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 28300 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 14500 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 12.700 lb

Features

Performance Features of 837-832 Bearing

837-832 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 109,000 lbf, ensuring reliable performance in heavy-duty applications.

The steel cage maintains roller alignment, reducing friction and extending service life.
With a temperature range of -30° to 110°C, it performs well in various operating conditions.

837-832 Bearing requires lubrication, which helps maintain smooth operation over time.
Its standard radial clearance options provide flexibility for different installation needs.

The tapered roller design ensures efficient load distribution, enhancing durability.
Weighing 12.700 lb, it balances strength and practicality for industrial use.

Application

Industrial Uses of 837-832 Bearing
The 837-832 Bearing is commonly used in heavy machinery, such as construction equipment and mining gear, where its tapered roller design handles combined loads effectively. Its chrome steel construction ensures durability even in tough working conditions.

Where Is 837-832 Bearing Used?
You’ll often find the 837-832 Bearing in agricultural machinery, like tractors and harvesters, where its robust design supports high radial and thrust loads. The open seal type allows for easy lubrication, extending its service life.

Built for Heavy-Duty Use: 837-832 Bearing
In industrial gearboxes, the 837-832 Bearing provides reliable performance, thanks to its tapered rollers and chrome steel components. Its standard radial clearance makes it versatile for various applications.

Automotive vs Aerospace: Applications of 837-832 Bearing
The 837-832 Bearing is a go-to choice for truck wheel hubs, offering stability under heavy loads. While not typically used in aerospace, its precision makes it suitable for ground support equipment.

Key Fields for 837-832 Bearing
This bearing excels in railway applications, particularly in axle boxes, where its combined load capacity is crucial. The steel cage adds strength, ensuring smooth operation over long distances.
