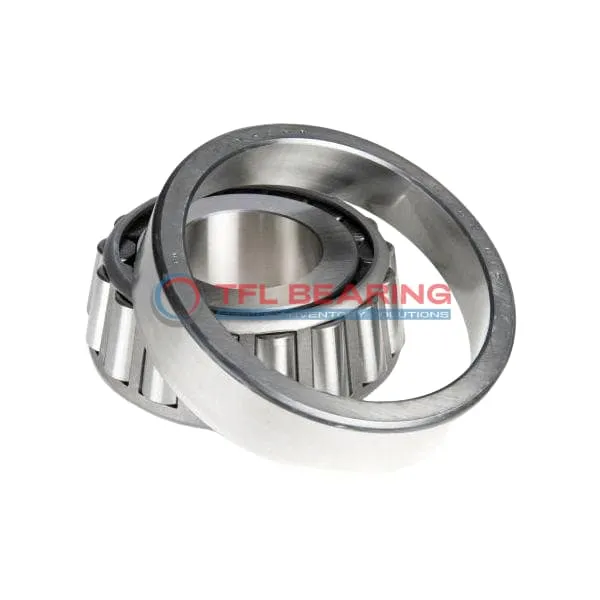

TS (Single Row Tapered Roller Bearings) (Imperial) 72200-72487

TS (Single Row Tapered Roller Bearings) (Imperial) 72200-72487

The 72200-72487 is a single-row tapered roller bearing with a 2″ bore and 4.875″ outer diameter, built from sturdy chrome steel. It handles combined loads up to 37100 lbf radially and 12100 lbf thrust, making it a versatile choice.

Its open design allows for easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery or automotive applications where combined loads are common.

Weighing 4.4 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 72200-72487
  • Brand TFL
  • Interchangeable Timken
  • Size 2" x 4.875" x 1.4375"
  • Bore Dia 2"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.875"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.291"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.4375"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 2.59"
  • Cone Backface Backing Diameter 2.91"
  • Cup Frontface Backing Diameter 4.60"
  • Cup Backface Backing Diameter 4.02"
  • Cage Cone Frontface Clearance 0.2"
  • Cage Cone Backface Clearance 0.18"
  • Effective Center Location 0.05"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 72200
  • Cup Part Number 72487
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 72000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 37100 lbf
  • Static Radial Load 39400 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 9620 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 12100 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 4.4 lb

Features

Performance Features of 72200-72487 Bearing

72200-72487 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 37,100 lbf, making it suitable for heavy-duty applications.

The steel cage ensures proper roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

72200-72487 Bearing’s tapered roller design provides efficient load distribution and smooth operation.
It meets ABEC-1 standards, ensuring consistent performance in industrial settings.

Application

Industrial Uses of 72200-72487 Bearing
The 72200-72487 Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. Its chrome steel construction ensures durability even in demanding conditions.

Where Is 72200-72487 Bearing Used?
You’ll often find the 72200-72487 Bearing in automotive applications like truck wheel hubs, where its robust design supports both radial and thrust loads. The inch sizing makes it a good fit for North American vehicle standards.

Built for Heavy-Duty Use: 72200-72487 Bearing
This bearing excels in industrial settings like conveyor systems, thanks to its high dynamic load capacity. The open design allows for easy lubrication, extending its service life.

Automotive vs Aerospace: Applications of 72200-72487 Bearing
In automotive systems, the 72200-72487 Bearing is ideal for wheel ends and transmissions, while its precision also suits aerospace landing gear components. The steel cage adds reliability in high-stress environments.

Key Fields for 72200-72487 Bearing
The 72200-72487 Bearing is a solid choice for mining equipment, where its tapered rollers manage heavy radial and axial loads. Its standard radial clearance ensures smooth operation in varied temperatures.
