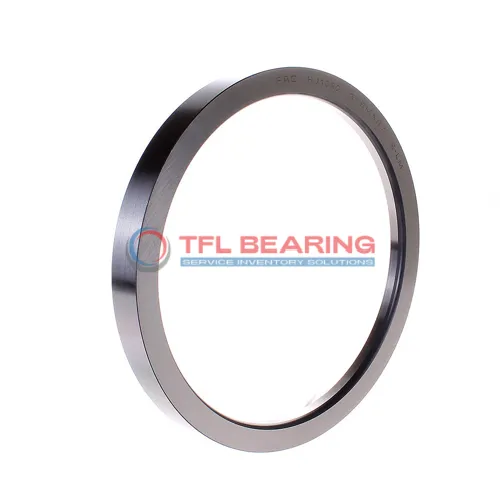

Angle Rings For Cylindrical Roller Bearings HJ 238 EC

Angle Rings For Cylindrical Roller Bearings HJ 238 EC

The HJ 238 EC angle ring is designed for cylindrical roller bearings, with a 190mm bore and 244.2mm outer diameter. Made from sturdy chrome steel, it fits snugly and handles temperatures from -30°C to 110°C.
Its 13mm width on the inner ring side ensures secure contact, while the 21.5mm overall width provides stability. The 4mm chamfer length allows for easy installation and alignment.
This angle ring is interchangeable with SKF models, making it a practical choice for replacements. Ideal for heavy-duty machinery where precise bearing alignment is crucial.
Weighing 2.19kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s safe for various industrial applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HJ 238 EC
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 190 mm
  • Bore Dia Tolerance -0.03mm to 0
  • Outer Dia 244.2 mm
  • Outer Dia Tolerance -0.03mm to 0
  • Width Contacting Inner Ring Side Face 13 mm
  • Width 21.5 mm
  • Width Tolerance -0.12mm to 0
  • Chamfer Length Radial Direction (Angle Rings)(r3,4)(min.) 4 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Temperature Range -30° to 110 °C
  • Material Chrome Steel
  • RoHS Compliant
  • REACH Compliant
  • Weight 2.19 kg
Angle Rings For Cylindrical Roller Bearings HJ 238 EC dimension drawing
Download DWG Download PDF

Features

Performance Features of HJ 238 EC Bearing
HJ 238 EC Bearing is crafted from chrome steel, offering durability and resistance to wear in demanding conditions.
Its precise dimensions, with a bore diameter of 190 mm and outer diameter of 244.2 mm, ensure a perfect fit for cylindrical roller bearings.
The design includes a 13 mm width contacting the inner ring side face, enhancing stability under load.
With a temperature range of -30° to 110 °C, HJ 238 EC Bearing performs reliably in varied environments.
The chamfer length of 4 mm in the radial direction facilitates easier installation and alignment.
Weighing 2.19 kg, it balances strength and practicality for industrial applications.

Application

Industrial Uses of HJ 238 EC Bearing
HJ 238 EC Bearing is commonly used in heavy machinery, such as industrial gearboxes and large conveyor systems, where its cylindrical roller design handles high radial loads efficiently. The chrome steel construction ensures durability in demanding environments.
In automotive applications, HJ 238 EC Bearing fits well in truck transmissions and axle systems, providing reliable performance under constant stress. Its metric dimensions make it a versatile choice for various vehicle models.
For automation equipment, HJ 238 EC Bearing’s precise tolerances and robust design make it suitable for robotic arms and assembly line mechanisms. The 13mm width contacting the inner ring side face offers stability in high-speed operations.
Medical imaging devices benefit from HJ 238 EC Bearing’s smooth operation and resistance to wear, ensuring consistent performance in critical applications. The compliant RoHS and REACH standards add to its suitability for sensitive environments.
