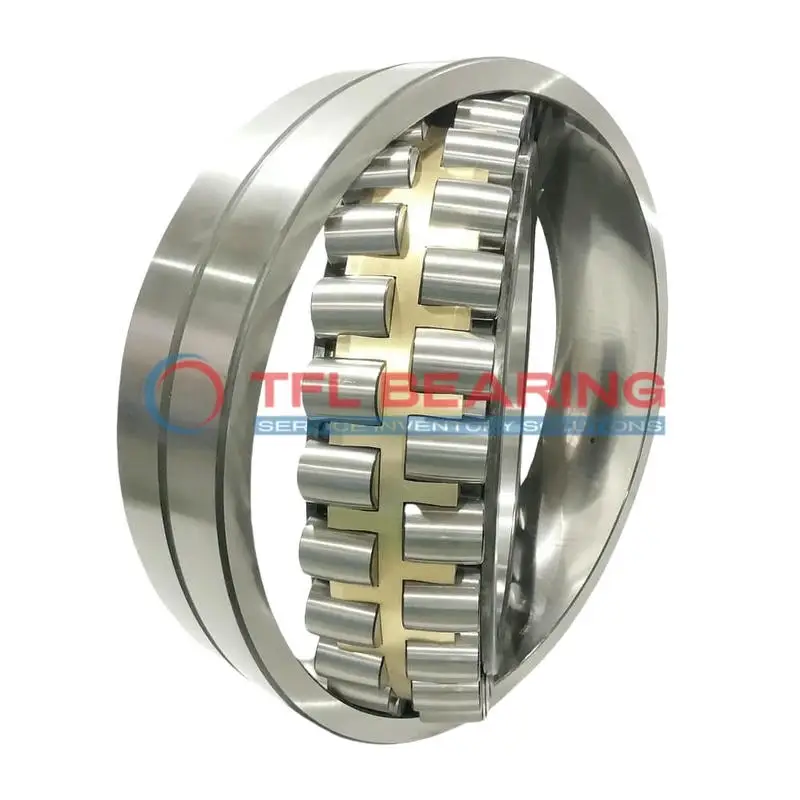

240/600 ECAC2HW33 Double Row Spherical Roller Bearing

240/600 ECAC2HW33 Double Row Spherical Roller Bearing

The 240/600 ECAC2HW33 is a double-row spherical roller bearing with a large 600mm bore and 870mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 1911326 lbf and operates smoothly at speeds up to 45 RPM.

Its brass cage and open design ensure durability, while the C2 radial clearance allows for slight misalignment. The bearing requires lubrication and works in temperatures from -30°C to 200°C.

With a weight of 520kg, it’s designed for heavy-duty applications like industrial machinery or large gearboxes. The lubrication groove and holes make maintenance straightforward.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Compliant with RoHS and REACH standards, it’s a robust choice for demanding environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 240/600 ECAC2HW33
  • Brand TFL
  • Interchangeable SKF
  • Size 600 x 870 x 272 mm
  • Bore Dia 600 mm
  • Bore Dia Tolerance -0.05mm to 0
  • Outer Dia 870 mm
  • Outer Dia Tolerance -0.1mm to 0
  • Width 272 mm
  • Width Tolerance -0.5mm to 0
  • Shoulder Dia Of Inner Ring 682 mm
  • Shoulder/Recess Dia Of Outer Ring 784 mm
  • Width Of Lubrication Groove 46.1 mm
  • Diameter Of Lubrication Hole 15 mm
  • Chamfer Dimension min.6 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 1911326 lbf
  • Static Radial Load 3664386 lbf
  • Max Speed 45 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C2
  • RoHs Compliant
  • REACH Compliant
  • Weight 520 kg
  • Price （US$） US$7,697.52

Features

How Does 240/600 ECAC2HW33 Bearing Handle Combined Loads?

240/600 ECAC2HW33 Bearing features a double-row spherical roller design, ideal for handling both radial and axial loads.
Its chrome steel construction ensures high strength and durability under heavy dynamic radial loads up to 1,911,326 lbf.
The brass cage maintains roller alignment, reducing friction and wear for smoother operation.
With a maximum speed of 45 rpm, it is suited for heavy-duty industrial applications.

What Makes 240/600 ECAC2HW33 Bearing Suitable for High-Temperature Applications?

240/600 ECAC2HW33 Bearing operates reliably in temperatures ranging from -30° to 200°C.
Its chrome steel rollers and rings resist thermal deformation, maintaining performance under extreme conditions.
The brass cage further enhances heat resistance, ensuring stability during prolonged use.
This makes it a dependable choice for high-temperature industrial environments.

Engineered for Precision: 240/600 ECAC2HW33 Bearing

240/600 ECAC2HW33 Bearing is designed with precise radial run-out standards for accurate performance.
Its cylindrical bore and C2 radial clearance ensure optimal fit and smooth operation.
The lubrication groove and holes facilitate consistent grease distribution, reducing maintenance needs.
This precision engineering makes it ideal for applications requiring reliable load handling.

Application

Industrial Uses of 240/600 ECAC2HW33 Bearing
This bearing is commonly used in heavy machinery like crushers and mining equipment, where its double-row design handles both radial and axial loads efficiently. The brass cage ensures smooth operation even under high stress.

In wind turbines, 240/600 ECAC2HW33 Bearing provides reliable performance, thanks to its spherical roller design that accommodates misalignment. Its large size and high load capacity make it ideal for renewable energy applications.

For paper mills and steel plants, 240/600 ECAC2HW33 Bearing’s chrome steel construction offers durability in harsh environments. The lubrication groove design helps maintain performance in high-temperature conditions.

What Makes 240/600 ECAC2HW33 Bearing a Preferred Choice?
Its metric sizing and compatibility with SKF models make it versatile for global industrial applications. The C2 radial clearance ensures optimal performance in varying thermal conditions.

Built for Heavy-Duty Use: 240/600 ECAC2HW33 Bearing
The bearing’s robust design suits applications like large gearboxes and marine propulsion systems. Its high static and dynamic load ratings ensure long service life in demanding settings.
