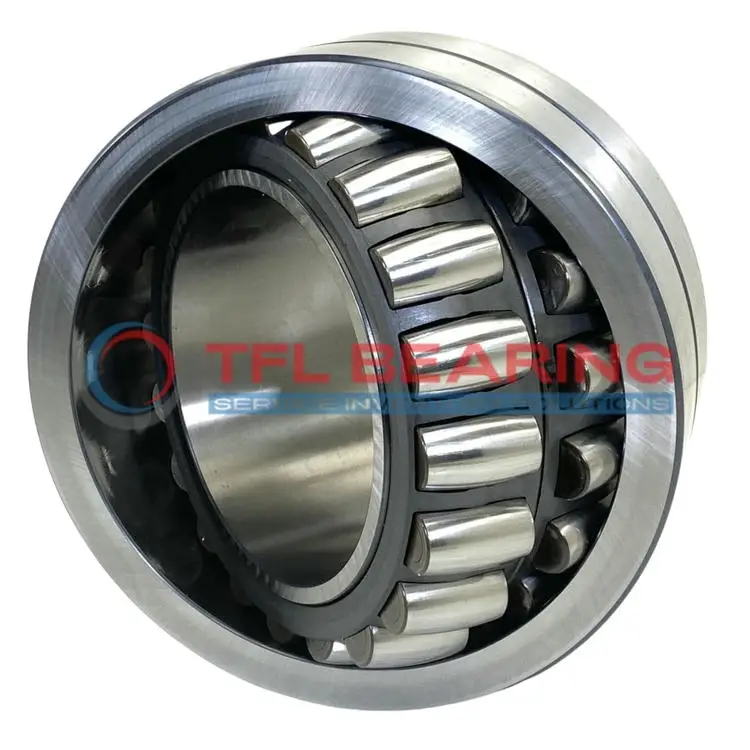

23136 CCK/C3W503 Double Row Spherical Roller Bearing

23136 CCK/C3W503 Double Row Spherical Roller Bearing

The 23136 CCK/C3W503 is a double-row spherical roller bearing with a 180mm bore and 300mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 283934 lbf and runs smoothly at speeds up to 2200 RPM.

Its spherical roller design compensates for misalignment, while the steel cage ensures durability under heavy loads. The bearing requires lubrication and operates in temperatures from -30°C to 200°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for industrial machinery like gearboxes or crushers where high radial loads and misalignment are common.

Weighing 27.5kg, it’s robust for demanding applications. Compliant with RoHS and REACH standards for safe use.

The tapered bore (1:12) ensures secure fitting, and the open design allows for easy maintenance. The lubrication groove and holes simplify greasing, extending service life.

Suitable for heavy-duty equipment in mining or construction, where reliability is key. Its C3 radial clearance accommodates thermal expansion during operation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 23136 CCK/C3W503
  • Brand TFL
  • Interchangeable SKF
  • Size 180 x 300 x 96 mm
  • Bore Dia 180 mm
  • Bore Dia Tolerance +0.04mm to 0
  • Outer Dia 300 mm
  • Outer Dia Tolerance -0.035mm to 0
  • Width 96 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 207 mm
  • Shoulder/Recess Dia Of Outer Ring 259 mm
  • Width Of Lubrication Groove 13.9 mm
  • Diameter Of Lubrication Hole 7.5 mm
  • Chamfer Dimension min.3 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Taper 1:12
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 283934 lbf
  • Static Radial Load 395664 lbf
  • Max Speed 2200 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 27.5 kg

Features

How Is 23136 CCK/C3W503 Bearing Engineered for Reliability?

23136 CCK/C3W503 Bearing features a double-row spherical roller design, ideal for handling combined loads with ease.
Its chrome steel construction ensures durability and resistance to wear in demanding conditions.

The bearing’s dynamic radial load capacity reaches 283934 lbf, making it suitable for heavy-duty applications.
With a maximum speed of 2200 rpm, it delivers consistent performance under high stress.

23136 CCK/C3W503 Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its C3 radial clearance allows for thermal expansion, ensuring smooth operation.

The lubrication groove and hole design in 23136 CCK/C3W503 Bearing simplify maintenance.
This reduces downtime and extends the bearing’s service life.

Application

Industrial Uses of 23136 CCK/C3W503 Bearing
The 23136 CCK/C3W503 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles both radial and axial loads effortlessly. Its tapered bore ensures a secure fit, reducing slippage during high-load operations.

Where Is 23136 CCK/C3W503 Bearing Used?
You’ll often find 23136 CCK/C3W503 Bearing in mining equipment, where its robust construction withstands harsh conditions. The C3 radial clearance allows for thermal expansion, making it reliable in high-temperature environments.

Built for Heavy-Duty Use: 23136 CCK/C3W503 Bearing
This bearing excels in paper mills and steel plants, thanks to its chrome steel rollers and steel cage. The lubrication groove design ensures smooth operation even under continuous heavy loads.

Automotive vs Aerospace: Applications of 23136 CCK/C3W503 Bearing
In automotive applications, 23136 CCK/C3W503 Bearing supports large drivetrains, while in aerospace, it’s used in landing gear systems. Its metric sizing and high dynamic load capacity make it versatile across industries.

Perfect Fit for Automation: 23136 CCK/C3W503 Bearing
The 23136 CCK/C3W503 Bearing is ideal for robotic arms in automated production lines, where precision and durability are key. Its open design simplifies maintenance, reducing downtime in busy factories.
