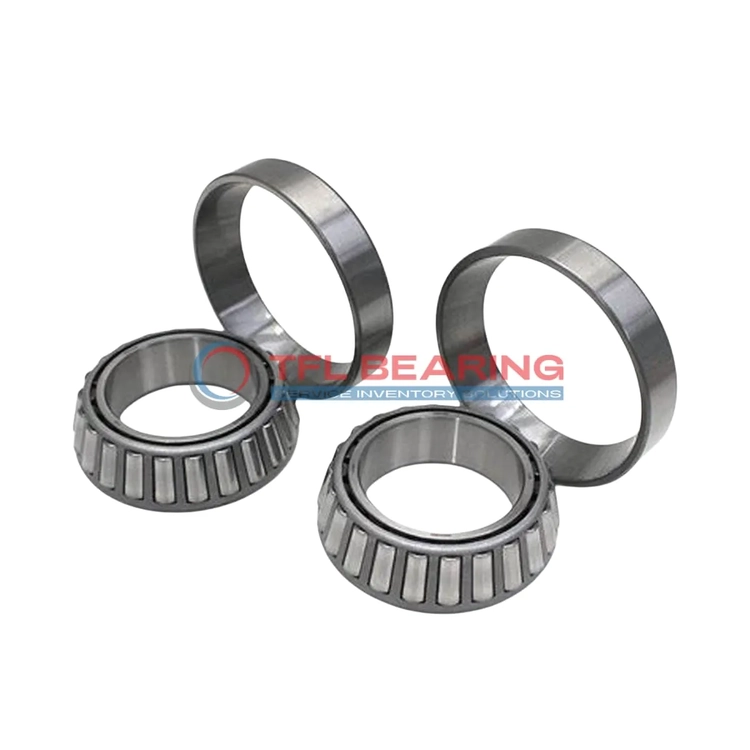

TS (Single Row Tapered Roller Bearings) (Imperial) 565-562X

TS (Single Row Tapered Roller Bearings) (Imperial) 565-562X

The 565-562X is a single-row tapered roller bearing with a 2.5″ bore and 5.1181″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 44100 lbf radially and 7130 lbf in thrust, making it versatile for heavy-duty use.

Its open design requires regular lubrication but allows for easy maintenance. The steel cage ensures durability, while the tapered rollers provide smooth operation under high stress.

This bearing is compatible with Timken models, offering a reliable replacement option. It suits applications like truck axles or industrial gearboxes where combined loads are common.

With a standard radial clearance and ABEC-1 rating, it performs well in temperatures from -30°C to 110°C. Weighing 4.9 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 565-562X
  • Brand TFL
  • Interchangeable Timken
  • Size 2.5" x 5.1181" x 1.4542"
  • Bore Dia 2.5"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 5.1181"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.424"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.1417"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.4542"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.12"
  • Cone Frontface Backing Diameter 3.52"
  • Cone Backface Backing Diameter 3.15"
  • Cup Frontface Backing Diameter 4.80"
  • Cup Backface Backing Diameter 4.49"
  • Cage Cone Frontface Clearance 0.11"
  • Cage Cone Backface Clearance 0.1"
  • Effective Center Location -0.32"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 565
  • Cup Part Number 562X
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 565
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 44100 lbf
  • Static Radial Load 58900 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 11400 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 7130 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 4.900 lb

Features

Performance Features of 565-562X Bearing

565-562X Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 44,100 lbf, ensuring reliable performance in heavy-duty applications.

The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in various environmental conditions.

565-562X Bearing requires lubrication, ensuring smooth operation and reduced wear over time.
Its standard radial clearance options provide flexibility for different installation needs.

Application

Common Applications of 565-562X Bearing
The 565-562X Bearing is widely used in industrial equipment like heavy-duty gearboxes and conveyor systems, where its tapered roller design handles combined loads efficiently. Its chrome steel construction ensures durability even in demanding environments.

In automotive applications, 565-562X Bearing fits well in truck wheel hubs and differential systems, providing reliable performance under high radial and thrust loads. The imperial sizing makes it compatible with many North American vehicle models.

For automation systems, 565-562X Bearing supports robotic arms and assembly line machinery, offering smooth operation and easy maintenance. The open design allows for straightforward lubrication, extending its service life.

Where Is 565-562X Bearing Used?
You’ll often find 565-562X Bearing in agricultural machinery, such as tractors and harvesters, where its robust design withstands heavy loads and rough conditions. The steel cage adds extra strength for long-term use.

In construction equipment, 565-562X Bearing is a go-to choice for cranes and excavators, thanks to its ability to handle both radial and axial forces. The standard radial clearance ensures consistent performance across various temperatures.

Built for Heavy-Duty Use: 565-562X Bearing
The 565-562X Bearing excels in mining equipment, where its tapered rollers manage extreme loads and vibrations. Its chrome steel rollers and rings resist wear, even in abrasive environments.

For railway applications, 565-562X Bearing is trusted in freight car axles, offering reliable performance under constant stress. The ABEC-1 rating ensures sufficient precision for these demanding uses.

Automotive vs Aerospace: Applications of 565-562X Bearing
In automotive settings, 565-562X Bearing is ideal for drivetrain components, balancing durability and cost-effectiveness. Its imperial sizing simplifies integration into existing designs.

For aerospace ground support equipment, 565-562X Bearing provides dependable performance in load-handling systems. The temperature range suits both indoor and outdoor operations.
