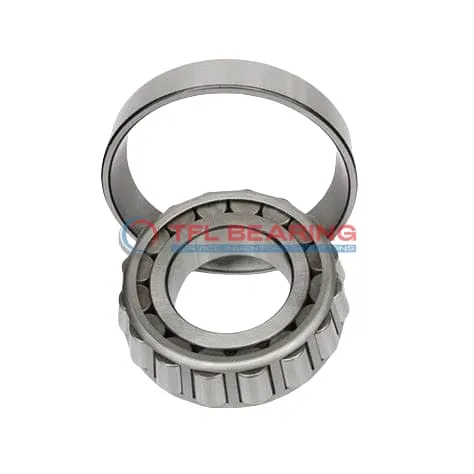

TS (Single Row Tapered Roller Bearings) (Imperial) 29665-29624

TS (Single Row Tapered Roller Bearings) (Imperial) 29665-29624

The 29665-29624 is a single-row tapered roller bearing with a 2.25″ bore and 4.5″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 24800 lbf radially and 5370 lbf thrust-wise, making it versatile for various applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery or automotive systems where combined loads are common.

Weighing 2.9 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 29665-29624
  • Brand TFL
  • Interchangeable Timken
  • Size 2.25" x 4.5" x 1.0937"
  • Bore Dia 2.25"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.5"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.875"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.0937"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 2.72"
  • Cone Backface Backing Diameter 2.95"
  • Cup Frontface Backing Diameter 4.33"
  • Cup Backface Backing Diameter 4.06"
  • Cage Cone Frontface Clearance 0.08"
  • Cage Cone Backface Clearance 0.08"
  • Effective Center Location 0.04"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 29665
  • Cup Part Number 29624
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 29600
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 24800 lbf
  • Static Radial Load 37200 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 6440 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 5370 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 2.9 lb

Features

How Is 29665-29624 Bearing Engineered for Reliability?

29665-29624 Bearing features chrome steel rings and rollers, ensuring durability under combined loads.
Its dynamic radial load capacity reaches 24,800 lbf, making it suitable for heavy-duty applications.
The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

Structural Advantages of 29665-29624 Bearing

29665-29624 Bearing’s tapered roller design efficiently handles both radial and thrust loads.
The precise cone and cup dimensions ensure smooth operation and easy installation.
Its standard radial clearance allows for flexibility in different applications.
The open seal type simplifies maintenance while keeping contaminants out.

Why Choose 29665-29624 Bearing for Precision Tasks?

29665-29624 Bearing offers a dynamic thrust rating of 5,370 lbf, ideal for precision tasks.
The chrome steel construction resists wear, ensuring consistent performance over time.
Its ABEC-1 rating guarantees reliable accuracy in various industrial settings.
The bearing’s effective center location enhances stability during operation.

Application

Essential Roles of 29665-29624 Bearing
29665-29624 Bearing is widely used in industrial machinery, especially in heavy-duty applications like conveyor systems and gearboxes. Its tapered roller design handles combined loads efficiently, making it reliable for continuous operation.

In automotive settings, 29665-29624 Bearing supports wheel hubs and differential systems, where its chrome steel construction ensures durability. The imperial sizing makes it a common choice for North American vehicle models.

For construction equipment, 29665-29624 Bearing’s high dynamic load capacity suits demanding environments like excavators and cranes. The open design allows for easy lubrication, extending service life in harsh conditions.

Automation systems benefit from 29665-29624 Bearing’s precision in robotic arms and assembly lines. Its standard radial clearance ensures smooth movement under varying loads.

In agricultural machinery, 29665-29624 Bearing withstands dust and debris in tractors and harvesters. The steel cage provides added strength for rugged applications.
