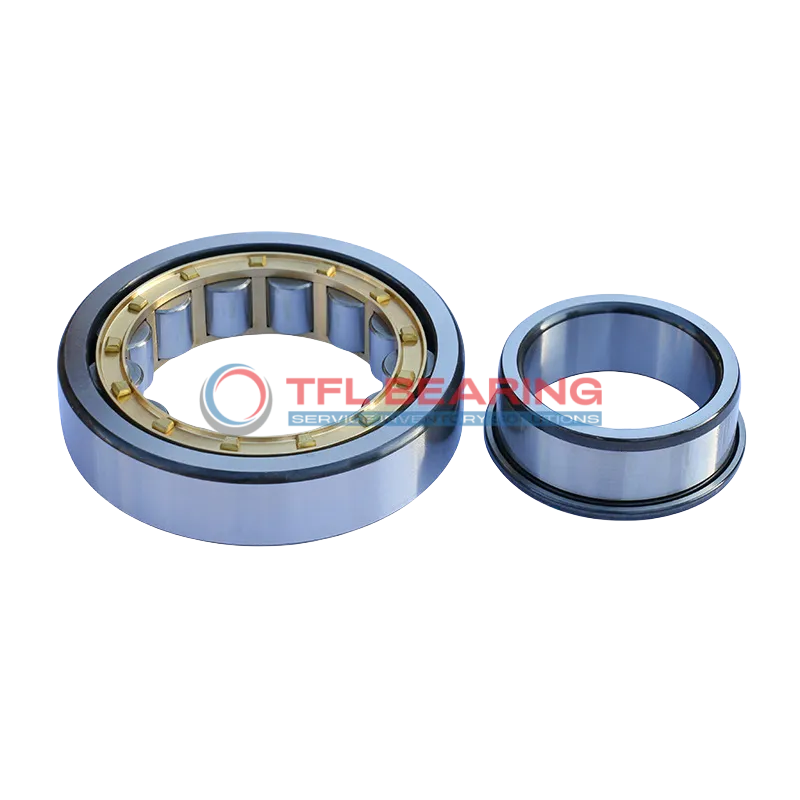

Single Row Cylindrical Roller Bearings With Inner Ring NJ 2217 ECM

Single Row Cylindrical Roller Bearings With Inner Ring NJ 2217 ECM

The NJ 2217 ECM is a single-row cylindrical roller bearing with an 85mm bore and 150mm outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 56250 lbf and runs smoothly at speeds up to 5000 RPM.

Its brass cage keeps rollers centred for even wear, while the open design allows easy lubrication with grease or oil. The bearing operates well in temperatures from -30°C to 110°C.

With a 36mm width and 2mm chamfer dimensions, it fits snugly in tight spaces. The inner ring design ensures stability under axial displacement up to 2mm.

Ideal for heavy-duty machinery like gearboxes or pumps, where radial and axial loads are present. Compliant with RoHS and REACH standards, it’s a reliable choice for industrial applications. Weighing 2.84kg, it balances strength and practicality.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NJ 2217 ECM
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 85 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 150 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 36 mm
  • Width Tolerance -0.20mm to 0
  • Shoulder Dia Of Inner Ring 107 mm
  • Chamfer Dimension r1,2(min.) 2 mm
  • Chamfer Dimension r3,4(min.) 2 mm
  • Permissible Axial Displacement(max.) 2 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass cage, roller centred
  • Dynamic Radial Load 56250 lbf
  • Static Radial Load 63000 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 5000 rpm
  • Weight 2.84 kg
  • Shoulder Dia Of Outer Ring 130.3 mm
  • Raceway Diameter Of Inner Ring 100.5 mm

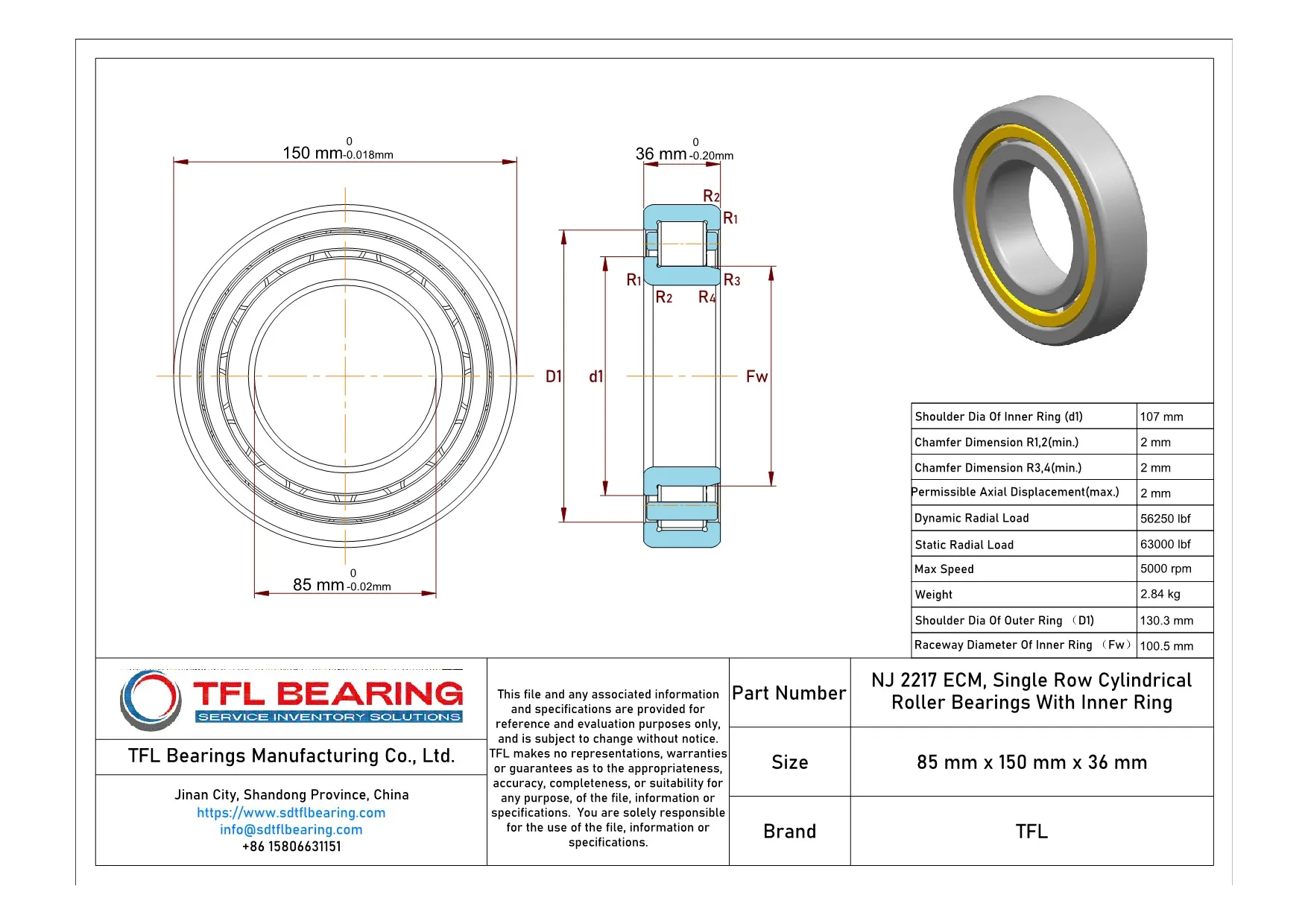

Single Row Cylindrical Roller Bearings With Inner Ring NJ 2217 ECM dimension drawing
Download DWG Download PDF

Features

Performance Features of NJ 2217 ECM Bearing

NJ 2217 ECM Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 56,250 lbf, ensuring reliable performance in demanding conditions.

The brass cage keeps the rollers centred, reducing friction and extending service life.
With a maximum speed of 5,000 rpm, it balances durability and efficiency.

NJ 2217 ECM Bearing operates smoothly in temperatures from -30° to 110°C.
Its open design allows for easy lubrication with grease or oil, reducing maintenance needs.

The precise dimensions and tolerances ensure a perfect fit in various applications.
This makes NJ 2217 ECM Bearing a dependable choice for industrial machinery.

Application

Key Fields for NJ 2217 ECM Bearing
NJ 2217 ECM Bearing is commonly used in industrial machinery, especially in gearboxes and heavy-duty equipment where combined loads are present. Its brass cage design helps reduce friction, making it suitable for high-speed operations up to 5000 rpm.

In automotive applications, NJ 2217 ECM Bearing fits well in transmission systems and wheel hubs due to its robust chrome steel construction. The metric dimensions ensure compatibility with a variety of vehicle designs, both in Europe and Asia.

For automation systems, NJ 2217 ECM Bearing provides reliable performance in robotic arms and conveyor belts. Its open seal type allows for easy lubrication, extending the bearing’s service life in demanding environments.

Medical imaging devices also benefit from NJ 2217 ECM Bearing’s precision and durability. The chrome steel rollers ensure smooth operation, which is critical for maintaining accuracy in diagnostic equipment.

In household appliances like washing machines, NJ 2217 ECM Bearing handles radial and axial loads efficiently. Its temperature range of -30° to 110 °C makes it versatile for various domestic uses.
