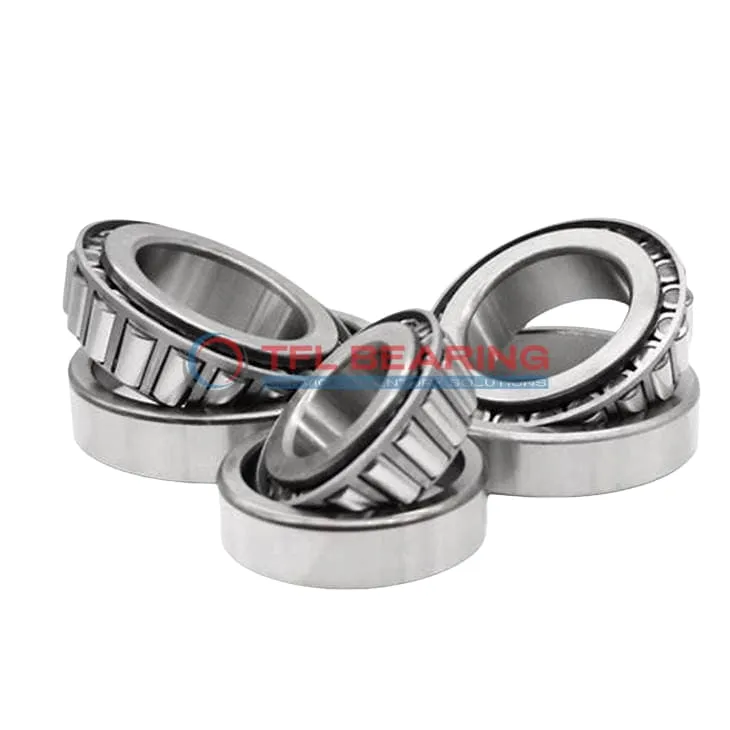

TS (Single Row Tapered Roller Bearings) (Imperial) 5583-5520

TS (Single Row Tapered Roller Bearings) (Imperial) 5583-5520

The 5583-5520 is a single-row tapered roller bearing with a 2.375″ bore and 4.7343″ outer diameter, crafted from durable chrome steel. It handles combined loads up to 63000 lbf radially and 10000 lbf in thrust, making it a robust choice for heavy-duty applications.

Its open design allows for easy lubrication, while the steel cage ensures reliable performance under stress. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a practical replacement option. Ideal for use in industrial machinery, automotive systems, or construction equipment where high load capacity is needed.

Weighing 5.1 lb, it’s built to last while meeting RoHS and REACH standards for safety and environmental compliance. The standard radial clearance ensures versatility across various applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 5583-5520
  • Brand TFL
  • Interchangeable Timken
  • Size 2.375" x 4.7343" x 1.7499"
  • Bore Dia 2.375"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.7343"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.723"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.4375"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.7499"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 2.83"
  • Cone Backface Backing Diameter 3.07"
  • Cup Frontface Backing Diameter 4.56"
  • Cup Backface Backing Diameter 4.13"
  • Cage Cone Frontface Clearance 0.08"
  • Cage Cone Backface Clearance 0.07"
  • Effective Center Location -0.48"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 5583
  • Cup Part Number 5520
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 5500
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 63000 lbf
  • Static Radial Load 73500 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 16300 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 10000 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 5.1 lb

Features

Why Choose 5583-5520 Bearing for Precision Tasks?

5583-5520 Bearing is crafted with chrome steel rings and rollers, ensuring strength and durability for combined load applications.
Its dynamic radial load capacity reaches 63,000 lbf, making it suitable for heavy-duty operations.
The steel cage maintains roller alignment, reducing friction and enhancing performance.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

How Is 5583-5520 Bearing Engineered for Reliability?

5583-5520 Bearing features a single-row tapered roller design, optimised for combined load handling.
The chrome steel construction resists wear, ensuring a long service life even under stress.
Its standard radial clearance allows for smooth operation in diverse applications.
The bearing’s ABEC-1 rating confirms its precision and reliability.

Built for Durability: 5583-5520 Bearing

5583-5520 Bearing’s robust chrome steel components withstand high static radial loads up to 73,500 lbf.
The tapered roller design distributes loads evenly, reducing wear and tear.
Its open seal type facilitates easy lubrication, maintaining optimal performance.
With a weight of 5.1 lb, it balances sturdiness and manageability.

Steel vs Ceramic Bearings: Strengths of 5583-5520 Bearing

5583-5520 Bearing’s chrome steel rollers provide excellent load-bearing capacity and durability.
The steel cage ensures stability, even under high dynamic thrust loads of 10,000 lbf.
Its inch-based measurements make it compatible with imperial system machinery.
The bearing’s standard construction simplifies installation and maintenance.

Application

Industrial Uses of 5583-5520 Bearing
The 5583-5520 Bearing is commonly used in heavy machinery like construction equipment and mining rigs, where its tapered roller design handles combined loads effectively. Its chrome steel construction ensures durability in harsh environments.

Where Is 5583-5520 Bearing Used?
You’ll often find 5583-5520 Bearing in automotive applications, particularly in wheel hubs and differential systems. Its inch sizing makes it a reliable choice for American and British vehicle models.

Built for Heavy-Duty Use: 5583-5520 Bearing
This bearing excels in industrial gearboxes, where its dynamic radial load capacity of 63,000 lbf ensures smooth operation. The steel cage adds extra strength for high-stress scenarios.

Automotive vs Aerospace: Applications of 5583-5520 Bearing
In automotive systems, 5583-5520 Bearing supports wheel assemblies, while in aerospace, it’s used in landing gear mechanisms. Its ABEC-1 rating balances precision and cost-effectiveness.

Key Fields for 5583-5520 Bearing
The 5583-5520 Bearing is ideal for agricultural machinery, such as tractors and harvesters, where its tapered rollers manage uneven loads. Its standard radial clearance suits varied operating conditions.
