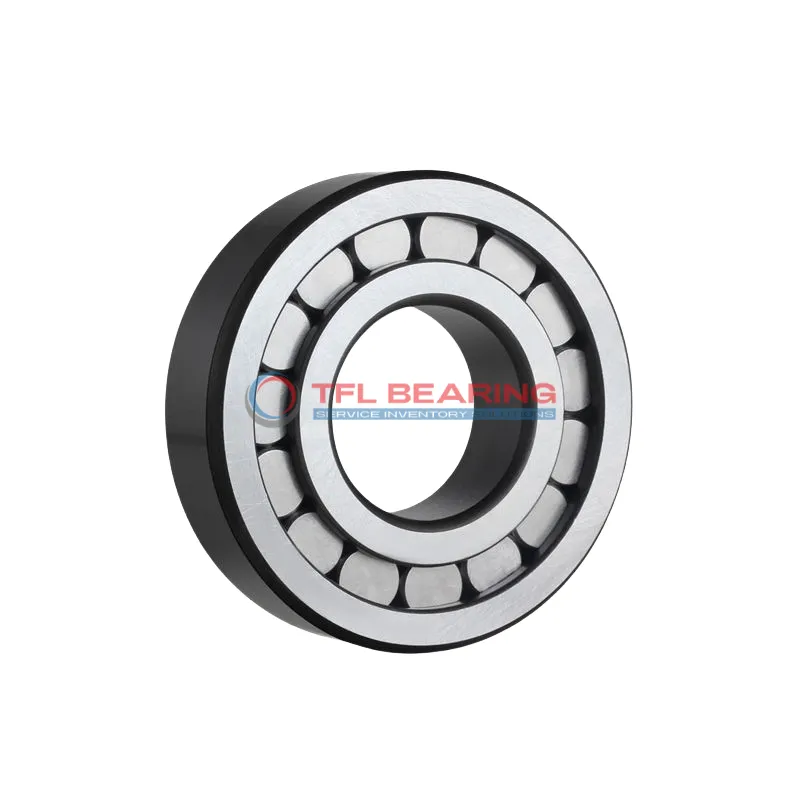

Single Row Full Complement Cylindrical Roller Bearings NCF 2888 V

Single Row Full Complement Cylindrical Roller Bearings NCF 2888 V

The NCF 2888 V is a single row full complement cylindrical roller bearing with a 440mm bore and 540mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 238500 lbf and runs smoothly at speeds up to 1000 RPM.

Its full complement design eliminates the need for a cage, offering higher load capacity and durability. The open seal allows easy lubrication with grease or oil, suitable for temperatures from -30°C to 110°C.

This bearing is interchangeable with SKF models, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial gearboxes or large machinery where high radial loads are common.

Weighing 30kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and reliable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NCF 2888 V
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 440 mm
  • Bore Dia Tolerance -0.045mm to 0
  • Outer Dia 540 mm
  • Outer Dia Tolerance -0.05mm to 0
  • Width 60 mm
  • Width Tolerance -0.45mm to 0
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row Full Complement
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Shoulder Dia Of Inner Ring 474 mm
  • Shoulder Dia Outer Ring 508 mm
  • Raceway Diameter Outer Ring 516 mm
  • Chamfer Dimension r1,2(min.) 2.1 mm
  • Permissible Axial Displacement(max.) 3.5 mm
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Full complement of rollers (no cage)
  • Dynamic Radial Load 238500 lbf
  • Static Radial Load 607500 lbf
  • Max Speed 1000 rpm
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 30 kg
Single Row Full Complement Cylindrical Roller Bearings NCF 2888 V dimension drawing
Download DWG Download PDF

Features

Performance Features of NCF 2888 V Bearing

NCF 2888 V Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 238,500 lbf, ensuring reliable performance in heavy-duty applications.

The full complement of rollers enhances load distribution, reducing stress and extending service life.
With a maximum speed of 1,000 rpm, it balances durability and efficiency in demanding conditions.

NCF 2888 V Bearing operates smoothly in temperatures ranging from -30° to 110°C.
Its open design allows for easy lubrication with grease or oil, reducing maintenance needs.

The precise tolerances and chamfer dimensions ensure easy installation and alignment.
This makes NCF 2888 V Bearing a practical choice for industrial applications requiring high load capacity.

Application

Industrial Uses of NCF 2888 V Bearing
NCF 2888 V Bearing is commonly used in heavy machinery like industrial gearboxes and large conveyor systems, where its full complement design handles high radial loads efficiently. The chrome steel construction ensures durability even in demanding environments.

What Makes NCF 2888 V Bearing a Preferred Choice?
In wind turbine applications, NCF 2888 V Bearing’s ability to withstand combined loads makes it ideal for main shaft support. Its open design allows for easy lubrication, extending service life in remote installations.

Built for Heavy-Duty Use: NCF 2888 V Bearing
For mining equipment, NCF 2888 V Bearing’s robust design excels in crushers and screens, where shock loads are common. The metric dimensions ensure compatibility with global machinery standards.

Automotive vs Aerospace: Applications of NCF 2888 V Bearing
In large commercial vehicles, NCF 2888 V Bearing supports drivetrain components, while in aerospace ground equipment, its precision handling of radial loads is valued. The temperature range suits varied operating conditions.

Essential Roles of NCF 2888 V Bearing
NCF 2888 V Bearing is vital in steel mill roll necks, where its high static load capacity prevents deformation. The absence of a cage allows for maximum roller count, enhancing load distribution.
