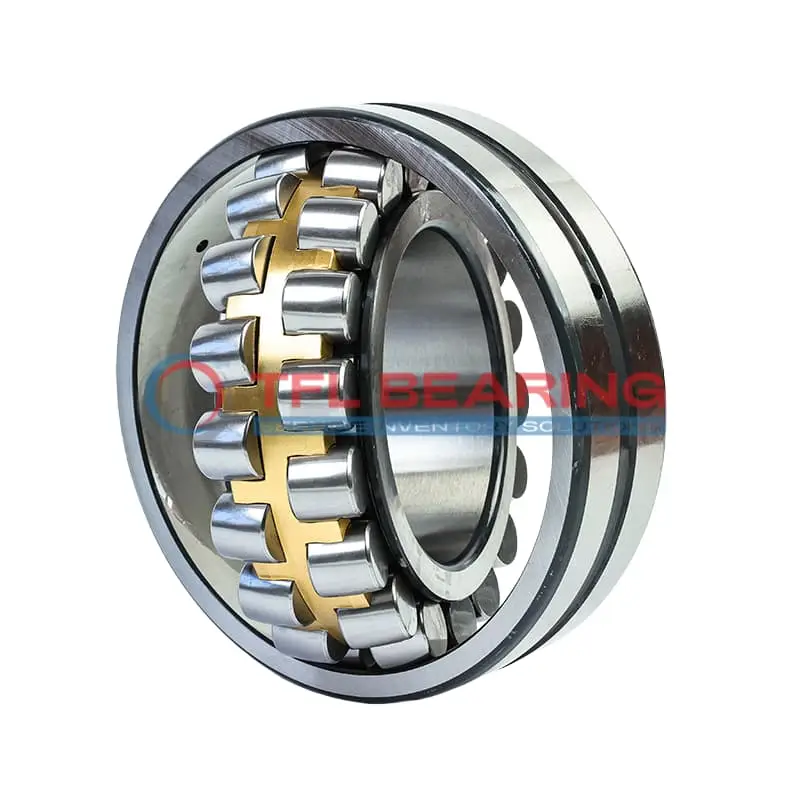

23172 CACK/C08W507 Double Row Spherical Roller Bearing

23172 CACK/C08W507 Double Row Spherical Roller Bearing

The 23172 CACK/C08W507 is a double-row spherical roller bearing with a 360mm bore and 600mm outer diameter, built from sturdy chrome steel. It supports combined loads up to 1015012 lbf and operates smoothly at speeds up to 1000 RPM.

Its brass cage enhances durability, while the tapered bore ensures secure fitting. The open design allows for easy lubrication, with grooves and holes for efficient maintenance.

This bearing suits heavy-duty applications like industrial gearboxes or large machinery, handling temperatures from -30°C to 200°C. It meets RoHS and REACH standards, offering reliable performance in demanding environments.

Weighing 230kg, it’s designed for robust use where high radial loads and precision alignment are needed. Interchangeable with SKF models for convenient replacements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 23172 CACK/C08W507
  • Brand TFL
  • Interchangeable SKF
  • Size 360 x 600 x 192 mm
  • Bore Dia 360 mm
  • Bore Dia Tolerance +0.057mm to 0
  • Outer Dia 600 mm
  • Outer Dia Tolerance -0.05mm to 0
  • Width 192 mm
  • Width Tolerance -0.4mm to 0
  • Shoulder Dia Of Inner Ring 418 mm
  • Shoulder/Recess Dia Of Outer Ring 524 mm
  • Width Of Lubrication Groove 22.3 mm
  • Diameter Of Lubrication Hole 12 mm
  • Chamfer Dimension min.5 mm
  • System of Measurement Metric
  • Radial run-out P5
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Taper 1:12
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 1015012 lbf
  • Static Radial Load 1562422 lbf
  • Max Speed 1000 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 230 kg
  • Price （US$） US$5,566.14

Features

Performance Features of 23172 CACK/C08W507 Bearing

23172 CACK/C08W507 Bearing is built with chrome steel rings and rollers, offering excellent resistance to combined loads.
Its dynamic radial load capacity reaches 1,015,012 lbf, making it suitable for heavy-duty industrial applications.

The brass cage ensures smooth roller movement, reducing friction and enhancing durability.
With a maximum speed of 1,000 rpm, it maintains performance under demanding conditions.

23172 CACK/C08W507 Bearing operates in temperatures from -30° to 200°C, adapting to various environments.
Its tapered bore design simplifies installation, ensuring secure fitting and alignment.

The lubrication groove and hole design in 23172 CACK/C08W507 Bearing promote efficient grease distribution.
This feature extends maintenance intervals, reducing downtime and operational costs.

Application

Industrial Uses of 23172 CACK/C08W507 Bearing
23172 CACK/C08W507 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row spherical design handles misalignment and heavy radial loads. The brass cage ensures smooth operation even under high stress.

Where Is 23172 CACK/C08W507 Bearing Used?
In mining equipment, 23172 CACK/C08W507 Bearing supports large rotating shafts, thanks to its high dynamic radial load capacity. The tapered bore design simplifies installation in demanding environments.

Built for Heavy-Duty Use: 23172 CACK/C08W507 Bearing
23172 CACK/C08W507 Bearing excels in paper mill machinery, where its chrome steel construction withstands constant moisture and heavy loads. The lubrication groove ensures long service life with minimal maintenance.

Automotive vs Aerospace: Applications of 23172 CACK/C08W507 Bearing
In wind turbines, 23172 CACK/C08W507 Bearing handles combined loads from rotor blades, while its temperature range suits both hot and cold climates. The P5 radial run-out precision ensures reliable performance.

Key Fields for 23172 CACK/C08W507 Bearing
23172 CACK/C08W507 Bearing is ideal for steel rolling mills, where its static radial load capacity supports extreme pressures. The open seal type allows for easy lubrication in dusty conditions.
