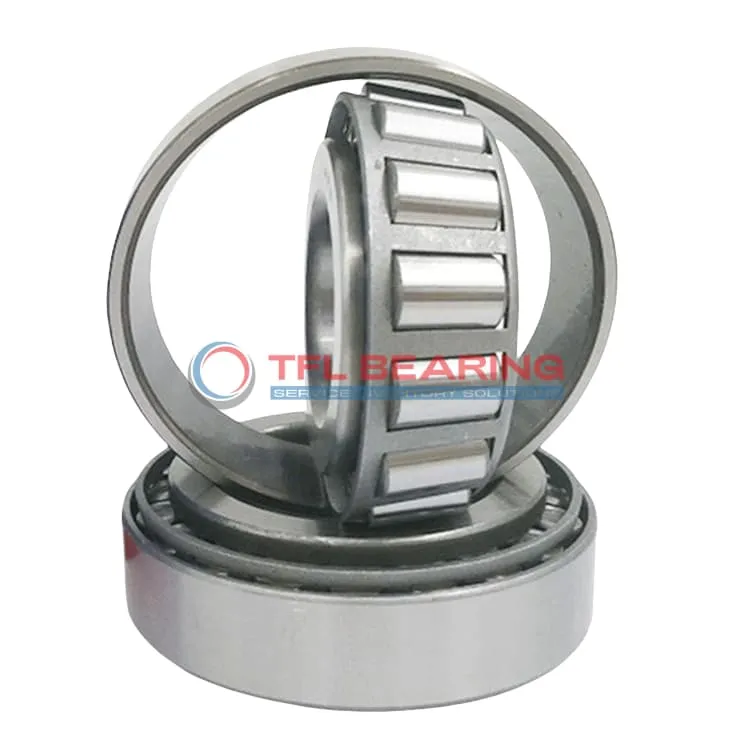

TS (Single Row Tapered Roller Bearings) (Imperial) 18204X-18335X

TS (Single Row Tapered Roller Bearings) (Imperial) 18204X-18335X

The 18204X-18335X is a single-row tapered roller bearing with a 2.0472″ bore and 3.3465″ outer diameter, crafted from durable chrome steel. It handles combined loads up to 11600 lbf radially and 2920 lbf thrust, suitable for moderate-speed applications.

Its open design allows easy lubrication, while the steel cage ensures reliable performance. The bearing operates smoothly in temperatures from -30°C to 110°C, making it versatile for various environments.

This model is interchangeable with Timken bearings, offering a practical replacement option. Ideal for use in gearboxes, axles, or industrial machinery where combined loads are present.

Weighing just 0.8 lb, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it meets safety and environmental requirements. ABEC-1 rated for consistent performance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 18204X-18335X
  • Brand TFL
  • Interchangeable Timken
  • Size 2.0472" x 3.3465" x 0.75"
  • Bore Dia 2.0472"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 3.3465"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.719"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.4921"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.75"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.080"
  • Cup Backface ToClear Radius 0.06"
  • Cone Frontface Backing Diameter 2.24"
  • Cone Backface Backing Diameter 2.36"
  • Cup Frontface Backing Diameter 3.23"
  • Cup Backface Backing Diameter 2.99"
  • Cage Cone Frontface Clearance 0.09"
  • Cage Cone Backface Clearance 0.07"
  • Effective Center Location 0.08"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 18204X
  • Cup Part Number 18335X
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 18000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 11600 lbf
  • Static Radial Load 14400 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 3010 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 2920 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.8 lb

Features

Performance Features of 18204X-18335X Bearing

18204X-18335X Bearing is crafted with chrome steel rings and rollers, offering robust performance under combined loads.
Its dynamic radial load capacity reaches 11,600 lbf, making it suitable for demanding industrial applications.

The steel cage ensures proper roller alignment, reducing friction and enhancing durability.
With a standard radial clearance, it provides reliable operation across various conditions.

18204X-18335X Bearing operates efficiently within a temperature range of -30° to 110°C.
Its tapered roller design ensures smooth performance even under heavy radial and thrust loads.

The open seal type allows for easy lubrication, maintaining optimal performance over time.
Weighing just 0.8 lb, it balances strength and practicality for diverse machinery needs.

Application

Industrial Uses of 18204X-18335X Bearing
18204X-18335X Bearing is commonly used in heavy machinery like construction equipment and agricultural tools, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

In automotive applications, 18204X-18335X Bearing fits well in wheel hubs and differential systems, providing reliable performance under varying loads. Its imperial sizing makes it a convenient choice for older or custom vehicle models.

For industrial conveyor systems, 18204X-18335X Bearing offers smooth operation and easy maintenance due to its open design. The standard radial clearance allows for flexibility in different operating conditions.

Where Is 18204X-18335X Bearing Used?
You’ll often find 18204X-18335X Bearing in gearboxes and power transmission systems, where its tapered rollers manage both radial and thrust loads. The steel cage adds extra strength for long-term use.

In mining equipment, 18204X-18335X Bearing stands up to harsh conditions thanks to its robust chrome steel components. The ABEC-1 rating ensures consistent performance without over-engineering for most applications.

Built for Heavy-Duty Use: 18204X-18335X Bearing
18204X-18335X Bearing is ideal for forklifts and other material handling equipment, where its combined load capacity shines. The inch measurements make it compatible with a wide range of North American machinery.

For farm machinery like tractors, 18204X-18335X Bearing provides reliable support in drivetrains and PTO systems. Its temperature range covers most outdoor working conditions without issue.

Automotive vs Aerospace: Applications of 18204X-18335X Bearing
In automotive settings, 18204X-18335X Bearing is a go-to for axles and transmissions due to its balanced load handling. The Timken interchangeability simplifies repairs and replacements.

For industrial pumps, 18204X-18335X Bearing offers dependable performance with standard lubrication. Its weight-to-capacity ratio makes it efficient for medium-duty applications.
