Single Row Cylindrical Roller Bearings With Inner Ring NJ 2216 ECP

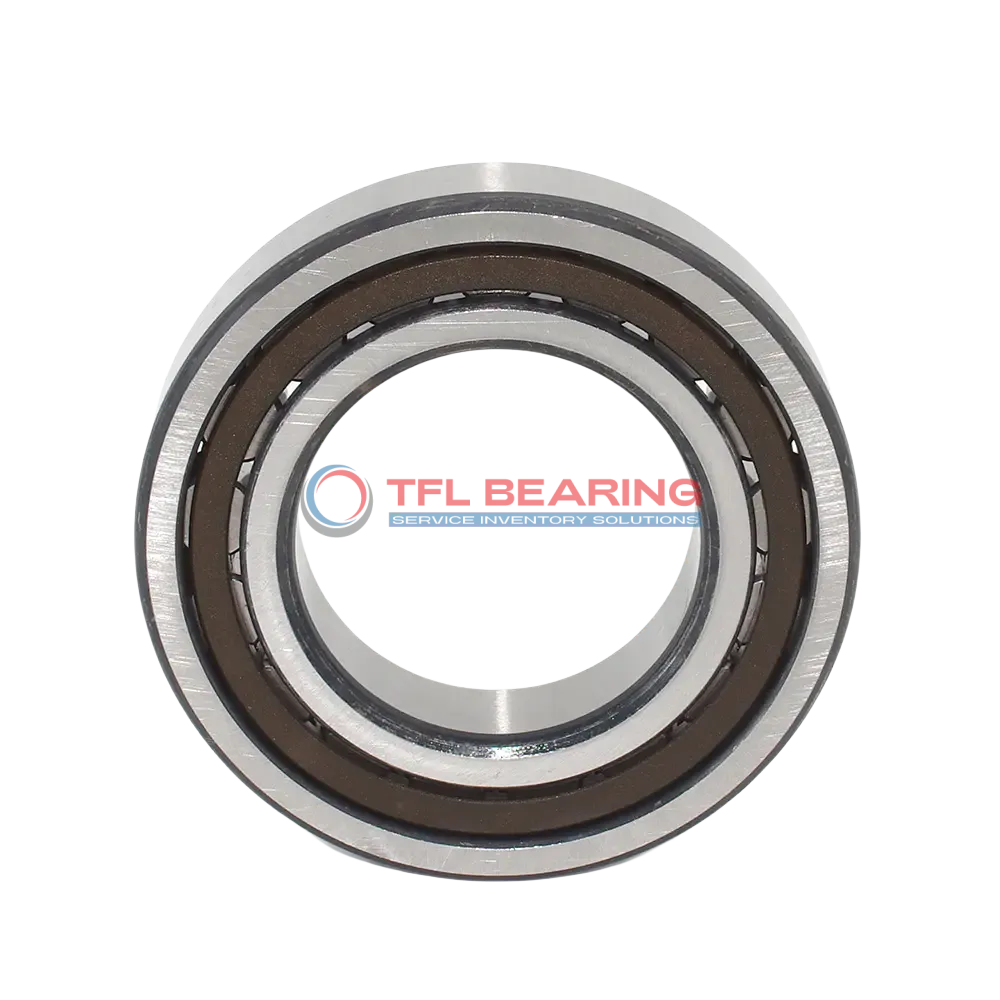

Single Row Cylindrical Roller Bearings With Inner Ring NJ 2216 ECP

The NJ 2216 ECP is a single-row cylindrical roller bearing with an 80mm bore and 140mm outer diameter, crafted from durable chrome steel. It handles combined loads up to 47700 lbf and operates smoothly at speeds up to 6000 RPM.

Its open design allows for easy lubrication with grease or oil, while the PA66 cage ensures reliable performance. The bearing works well in temperatures ranging from -30°C to 110°C.

With a width of 33mm and a weight of 2.03kg, it’s a robust yet manageable choice for heavy-duty applications. The inner ring design provides stability, making it suitable for machinery with axial displacement needs.

Ideal for industrial equipment like gearboxes or pumps, this bearing is interchangeable with SKF models, offering a practical replacement option. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NJ 2216 ECP
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 80 mm
  • Bore Dia Tolerance -0.15mm to 0
  • Outer Dia 140 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 33 mm
  • Width Tolerance -0.15mm to 0
  • Shoulder Dia Of Inner Ring 101 mm
  • Chamfer Dimension r1,2(min.) 2 mm
  • Chamfer Dimension r3,4(min.) 2 mm
  • Permissible Axial Displacement(max.) 1.4 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material PA66 cage, roller centred
  • Dynamic Radial Load 47700 lbf
  • Static Radial Load 55125 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 6000 rpm
  • Weight 2.03 kg
  • Shoulder Dia Of Outer Ring 121.7 mm
  • Raceway Diameter Of Inner Ring 95.3 mm
Single Row Cylindrical Roller Bearings With Inner Ring NJ 2216 ECP dimension drawing
Download DWG Download PDF

Features

Performance Features of NJ 2216 ECP Bearing

NJ 2216 ECP Bearing is built with chrome steel rings and rollers, offering excellent resistance to combined loads.
Its dynamic radial load capacity reaches 47,700 lbf, making it suitable for heavy-duty applications.

The PA66 cage keeps the rollers centred, ensuring smooth operation and reduced wear.
With a maximum speed of 6,000 rpm, it delivers reliable performance in various conditions.

NJ 2216 ECP Bearing operates efficiently in temperatures from -30° to 110°C.
Its open design allows for easy lubrication with grease or oil, extending service life.

The precise chamfer dimensions of 2 mm ensure easy installation and alignment.
This bearing is ideal for applications requiring high radial load capacity and durability.

Application

Industrial Uses of NJ 2216 ECP Bearing
NJ 2216 ECP Bearing is commonly used in heavy machinery like gearboxes and industrial pumps, where its cylindrical roller design handles combined loads efficiently. The chrome steel construction ensures durability even in demanding environments.

Where Is NJ 2216 ECP Bearing Used?
You’ll often find NJ 2216 ECP Bearing in conveyor systems and electric motors, thanks to its high radial load capacity. The open seal design allows for easy lubrication, making maintenance straightforward.

Built for Heavy-Duty Use: NJ 2216 ECP Bearing
NJ 2216 ECP Bearing excels in applications like wind turbines and mining equipment, where reliability is key. Its PA66 cage material reduces friction, enhancing performance at high speeds.

Automotive vs Aerospace: Applications of NJ 2216 ECP Bearing
In automotive transmissions, NJ 2216 ECP Bearing provides smooth operation under heavy loads. For aerospace applications, its precision engineering ensures consistent performance in critical systems.

Perfect Fit for Automation: NJ 2216 ECP Bearing
NJ 2216 ECP Bearing is ideal for robotic arms and automated assembly lines, where its high-speed capability shines. The metric sizing makes it compatible with a wide range of industrial equipment.
