737260 Single Cups (Imperial)

737260 Single Cups (Imperial)

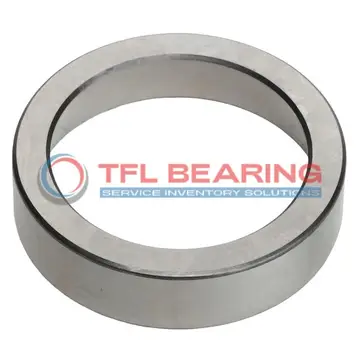

The 737260 is a single cup bearing with a 26″ outer diameter and a width of 2.4687″, made from sturdy chrome steel. It fits well with Timken bearings, making it a handy replacement option.

Designed for tapered roller bearings, it handles moderate speeds and loads with ease. The cup’s standard design ensures compatibility with various industrial setups.

Its temperature range of -30°C to 110°C makes it suitable for diverse environments. The ABEC-1 rating offers reliable precision for general applications.

Ideal for heavy machinery or automotive systems where tapered roller bearings are used. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 737260
  • Brand TFL
  • Interchangeable Timken
  • Size 24.21" x 26" x 2.4687"
  • Outer Dia 26"
  • Outer Dia Tolerance +0.003" to 0
  • Cup Width 2.4687"
  • Cup Width Tolerance +0.002" to -0.01
  • Cup Backface ToClear Radius 0.25"
  • Cup Frontface Backing Diameter 24.34"
  • Cup Backface Backing Diameter 24.21"
  • System of Measurement Inch
  • Roller Bearing Type Tapered
  • Type Cups
  • Bearing Part Number EE737173-737260 , EE737181-737260
  • Cups Type Standard
  • Series 737000
  • Ring Material Chrome Steel
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • RoHS Compliant
  • REACH Compliant

Features

Performance Features of 737260 Bearing

737260 Bearing is crafted from chrome steel, offering durability and resistance to wear in various applications.
Its tapered roller design ensures efficient load distribution, enhancing performance under stress.

The cup width tolerance of +0.002″ to -0.01″ allows for precise fitting, reducing installation errors.
With a temperature range of -30° to 110°C, it performs reliably in diverse environmental conditions.

737260 Bearing meets ABEC-1 standards, providing consistent quality and smooth operation.
Its interchangeable design with Timken bearings ensures compatibility and ease of replacement.

Application

Industrial Uses of 737260 Bearing
737260 Bearing is commonly used in heavy machinery, such as mining equipment and large-scale conveyor systems, where its tapered design handles radial and axial loads efficiently. The chrome steel construction ensures durability in demanding environments.

Where Is 737260 Bearing Used?
In automotive applications, 737260 Bearing supports wheel hubs and axle systems, providing reliable performance under heavy loads. Its inch sizing makes it a preferred choice for North American vehicle manufacturers.

Built for Heavy-Duty Use: 737260 Bearing
For industrial fans and blowers, 737260 Bearing’s robust design ensures smooth operation even at high speeds. The standard cup type simplifies installation and maintenance in various settings.

Automotive vs Aerospace: Applications of 737260 Bearing
While 737260 Bearing excels in automotive axle systems, it’s also found in aerospace ground support equipment. Its ABEC-1 rating balances precision and cost-effectiveness for diverse needs.

Perfect Fit for Automation: 737260 Bearing
In automated production lines, 737260 Bearing’s tapered rollers reduce friction, enhancing efficiency. The chrome steel rings withstand continuous use without compromising performance.
