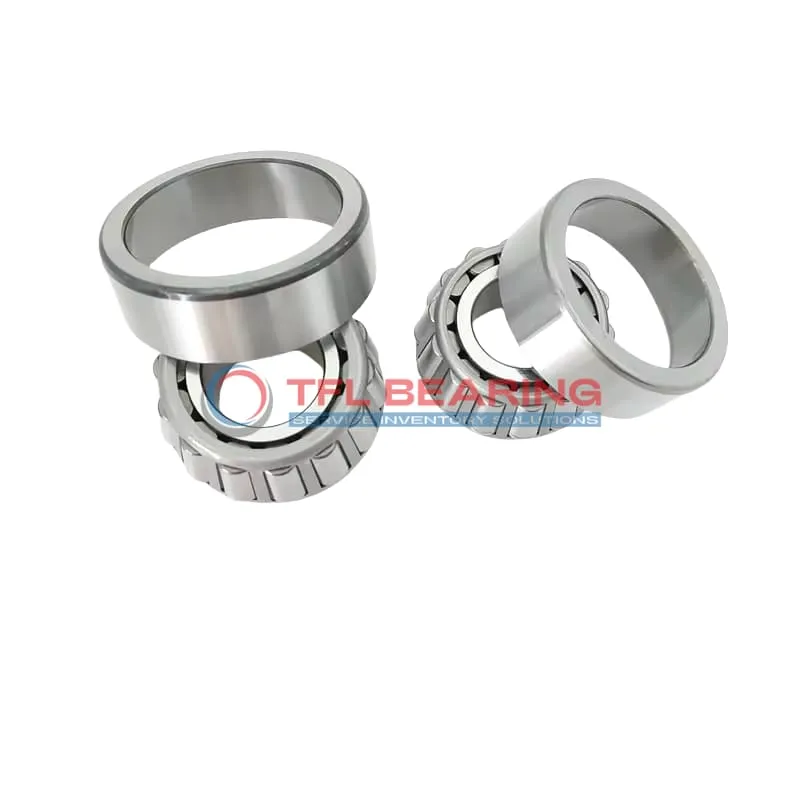

TS (Single Row Tapered Roller Bearings) (Imperial) 422-414X

TS (Single Row Tapered Roller Bearings) (Imperial) 422-414X

The 422-414X is a single-row tapered roller bearing with a 1.5625″ bore and 3.5″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 26000 lbf radially and 3040 lbf thrust, making it versatile for various applications.

Its open design allows easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery or automotive systems where combined loads are common.

Weighing 1.8 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 422-414X
  • Brand TFL
  • Interchangeable Timken
  • Size 1.5625" x 3.5" x 1.0626"
  • Bore Dia 1.5625"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 3.5"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.145"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.875"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.0626"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.03"
  • Cone Frontface Backing Diameter 1.79"
  • Cone Backface Backing Diameter 2.05"
  • Cup Frontface Backing Diameter 3.18"
  • Cup Backface Backing Diameter 3.07"
  • Cage Cone Frontface Clearance 0.06"
  • Cage Cone Backface Clearance 0.03"
  • Effective Center Location -0.38"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 422
  • Cup Part Number 414X
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 415
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 26000 lbf
  • Static Radial Load 28000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 6740 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 3040 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 1.8 lb

Features

Performance Features of 422-414X Bearing

422-414X Bearing is crafted with chrome steel rings and rollers, offering robust performance under combined loads.
Its dynamic radial load capacity reaches 26,000 lbf, making it suitable for heavy-duty applications.

The steel cage ensures proper roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs reliably in various environmental conditions.

422-414X Bearing’s standard radial clearance allows for smooth operation and easy installation.
Its ABEC-1 rating ensures consistent precision for industrial applications.

Application

Industrial Uses of 422-414X Bearing
422-414X Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined loads efficiently. The chrome steel construction ensures durability even in demanding environments.

In automotive applications, 422-414X Bearing fits well in wheel hubs and differential systems, providing reliable performance under radial and thrust loads. Its inch sizing makes it a straightforward choice for North American vehicle models.

For industrial conveyor systems, 422-414X Bearing’s open design simplifies lubrication and maintenance, reducing downtime. The steel cage adds robustness, making it suitable for high-load scenarios.

Where Is 422-414X Bearing Used?
422-414X Bearing finds its place in mining equipment, where its ability to handle heavy radial and axial loads is crucial. The standard radial clearance offers flexibility for various operational conditions.

In wind turbine assemblies, 422-414X Bearing supports rotor shafts, ensuring smooth rotation under fluctuating loads. Its temperature range of -30° to 110°C makes it adaptable to diverse climates.

Built for Heavy-Duty Use: 422-414X Bearing
422-414X Bearing excels in railway applications, particularly in axle boxes where combined loads are frequent. The ABEC-1 rating balances precision and cost-effectiveness for these uses.

In material handling equipment, 422-414X Bearing’s tapered rollers distribute loads evenly, prolonging service life. The steel cage and chrome steel components resist wear, even with constant use.

Automotive vs Aerospace: Applications of 422-414X Bearing
422-414X Bearing is a go-to for automotive drivetrains, where its combined load capacity shines. In aerospace, its reliability meets the demands of auxiliary systems, though with stricter precision requirements.

For general machinery, 422-414X Bearing offers a practical solution for gearboxes and pumps. Its compatibility with Timken models simplifies replacements and maintenance.
