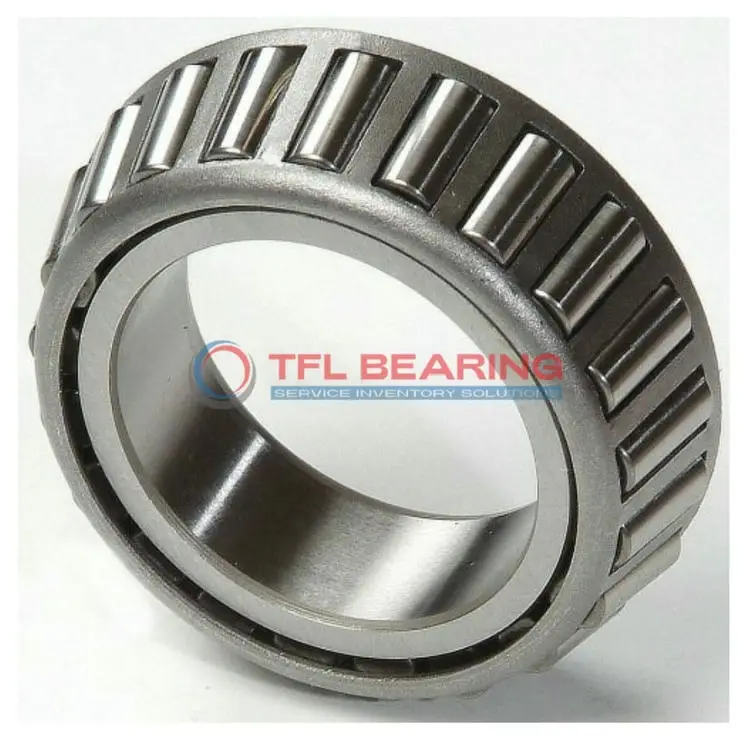

KLM29749C Single Cones (Imperial)

KLM29749C Single Cones (Imperial)

The KLM29749C is a single-row tapered roller bearing cone with a 1.5-inch bore, made from durable chrome steel. It handles combined loads, with a dynamic radial load capacity of 11900 lbf and a static radial load of 15100 lbf.

Its open design allows for easy maintenance, while the steel cage ensures reliable performance. The cone has a width of 0.72 inches and fits well in standard applications.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for industrial machinery or automotive systems where combined loads are common.

It operates smoothly in temperatures from -30°C to 110°C and complies with RoHS and REACH standards. The ABEC-1 rating ensures consistent performance for general use.

The standard radial clearance (with options for C3/C4/C5) provides flexibility for different installation needs. A robust choice for demanding environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number KLM29749C
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Inch
  • Type Cones
  • Bearing Part Number KLM29749C-KLM29710C , KLM29749C-KLM29711C
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 1.5"
  • Bore Dia Tolerance +0.005" to 0
  • Cone Width 0.72"
  • Cone Width Tolerance +0.003" to -0.01
  • Cone Backface ToClear Radius 0.09"
  • Cone Frontface Backing Diameter 1.71"
  • Cone Backface Backing Diameter 1.85"
  • Cage Cone Frontface Clearance 0.07"
  • Cage Cone Backface Clearance 0"
  • Effective Center Location -0.18"
  • Ring Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 11900 lbf
  • Static Radial Load 15100 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 3080 lbf
  • Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 20700 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 1750 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 5360 lbf
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant

Features

How Is KLM29749C Bearing Engineered for Reliability?

KLM29749C Bearing features chrome steel construction, providing strong resistance to combined loads.
Its dynamic radial load capacity reaches 11,900 lbf, ensuring dependable performance in various applications.

The tapered roller design enhances load distribution, reducing wear and extending service life.
With a temperature range of -30° to 110°C, it performs reliably in diverse environments.

KLM29749C Bearing’s steel cage maintains roller alignment, promoting smooth operation.
Its standard radial clearance options offer flexibility for different operational needs.

Application

Key Fields for KLM29749C Bearing
KLM29749C Bearing is commonly used in industrial machinery, especially in heavy-duty applications like conveyor systems and gearboxes. Its tapered roller design handles combined loads efficiently, making it reliable for continuous operation.

In automotive settings, KLM29749C Bearing fits well in wheel hubs and differential systems, where its inch sizing suits many American and British vehicle models. The chrome steel construction ensures durability under varying road conditions.

For construction equipment, KLM29749C Bearing’s robust design supports loads in excavators and cranes. The open seal type allows for easy lubrication, extending its service life in demanding environments.

In agricultural machinery, KLM29749C Bearing performs well in tractors and harvesters, where its dynamic load capacity handles uneven terrain. The steel cage adds strength, making it a practical choice for farming applications.
