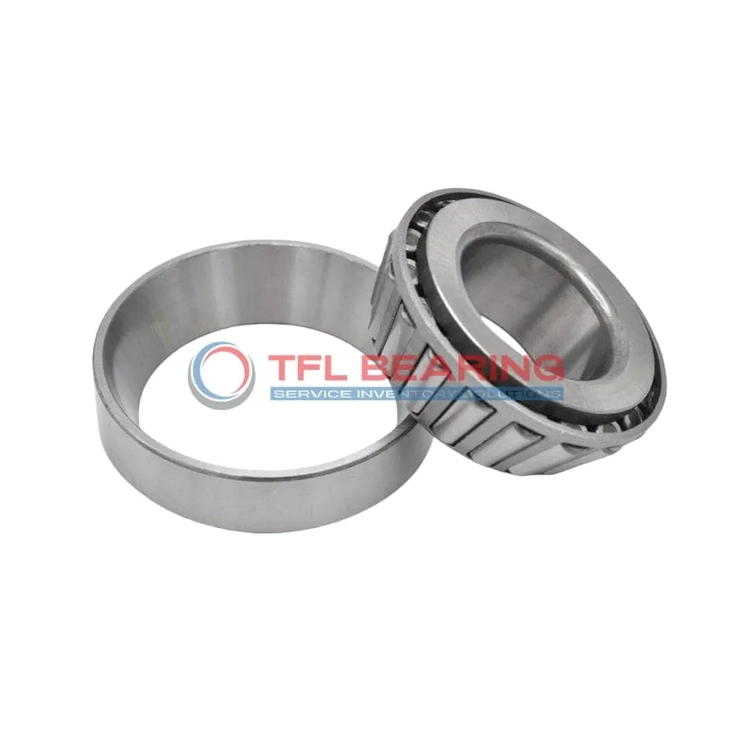

TS (Single Row Tapered Roller Bearings) (Imperial) 5565-5520

TS (Single Row Tapered Roller Bearings) (Imperial) 5565-5520

The 5565-5520 is a single-row tapered roller bearing with a 2-inch bore and 4.7343-inch outer diameter, crafted from durable chrome steel. It handles combined loads up to 53200 lbf radially and 8460 lbf thrust, making it robust for heavy-duty use.

Its open design allows for easy lubrication, while the steel cage ensures reliable performance under high stress. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a practical replacement option. Ideal for industrial machinery or automotive applications where combined loads are common.

Weighing 5.7 lb, it’s sturdy yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe and dependable choice.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 5565-5520
  • Brand TFL
  • Interchangeable Timken
  • Size 2" x 4.7343" x 1.7499"
  • Bore Dia 2"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.7343"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.723"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.4375"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.7499"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.050"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 2.56"
  • Cone Backface Backing Diameter 2.64"
  • Cup Frontface Backing Diameter 4.56"
  • Cup Backface Backing Diameter 4.13"
  • Cage Cone Frontface Clearance 0.08"
  • Cage Cone Backface Clearance 0.07"
  • Effective Center Location -0.48"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 5565
  • Cup Part Number 5520
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 5500
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 53200 lbf
  • Static Radial Load 73500 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 13800 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 8460 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 5.7 lb

Features

Performance Features of 5565-5520 Bearing

5565-5520 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 53,200 lbf, making it suitable for heavy-duty applications.
The steel cage ensures proper roller alignment, enhancing durability and reducing wear.
With a temperature range of -30° to 110°C, it performs reliably in various environments.

How Does 5565-5520 Bearing Resist Wear?

5565-5520 Bearing’s chrome steel construction provides excellent resistance to wear and tear.
The tapered roller design distributes loads evenly, reducing stress on individual components.
Its standard radial clearance ensures smooth operation, even under heavy loads.
Regular lubrication further extends its service life, making it a cost-effective choice.

Engineered for Precision: 5565-5520 Bearing

5565-5520 Bearing features precise tolerances, ensuring accurate performance in demanding applications.
The single-row tapered roller design handles both radial and thrust loads efficiently.
With an ABEC-1 rating, it balances precision and affordability for various industrial uses.
Its open design simplifies maintenance, keeping operational costs low.

Steel vs Ceramic Bearings: Strengths of 5565-5520 Bearing

5565-5520 Bearing’s chrome steel rollers and rings provide superior strength and durability.
It handles dynamic radial loads up to 53,200 lbf, outperforming many ceramic alternatives.
The steel cage ensures stability, even in high-load scenarios.
Its compatibility with standard lubrication makes it easier to maintain than ceramic options.

Application

Industrial Uses of 5565-5520 Bearing
The 5565-5520 Bearing is commonly used in heavy machinery like construction equipment and mining rigs, where its tapered roller design handles combined loads efficiently. Its chrome steel construction ensures durability even in demanding environments.

Where Is 5565-5520 Bearing Used?
You’ll often find the 5565-5520 Bearing in automotive applications, particularly in wheel hubs and differential systems. Its inch sizing makes it a reliable choice for American-made vehicles and industrial gearboxes.

Built for Heavy-Duty Use: 5565-5520 Bearing
In conveyor systems, the 5565-5520 Bearing excels due to its ability to manage both radial and thrust loads. The open design simplifies lubrication, extending service life in high-use settings.

Automotive vs Aerospace: Applications of 5565-5520 Bearing
While the 5565-5520 Bearing is popular in truck axles, its precision also suits aerospace landing gear components. The steel cage and chrome rollers provide consistent performance under varying loads.

Key Fields for 5565-5520 Bearing
Agricultural machinery benefits from the 5565-5520 Bearing’s robust design, especially in tractors and harvesters. Its standard radial clearance ensures smooth operation even with fluctuating temperatures.
