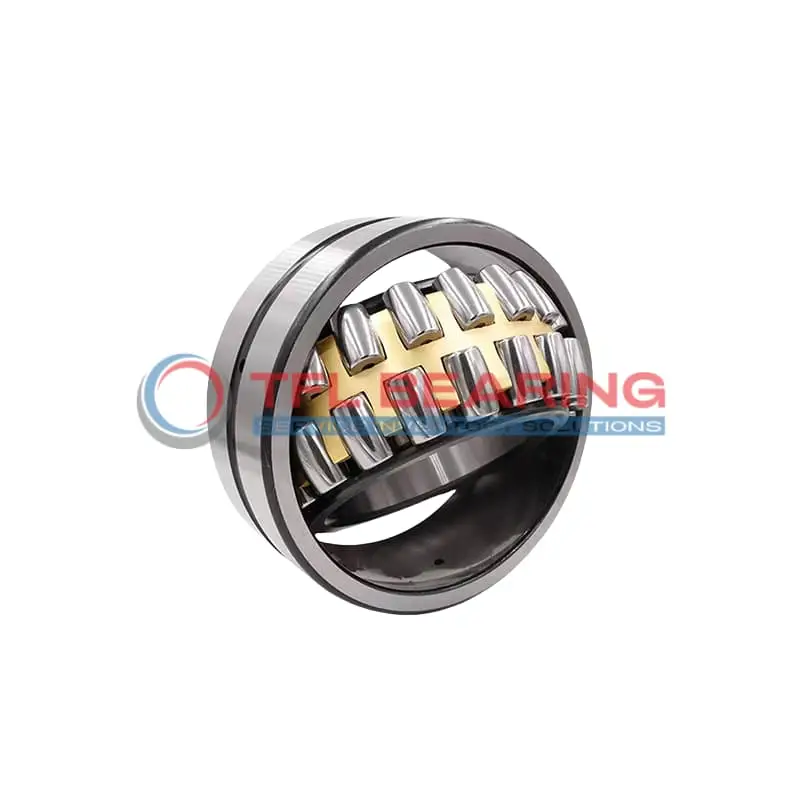

24060 CACK30/C3W33 Double Row Spherical Roller Bearing

24060 CACK30/C3W33 Double Row Spherical Roller Bearing

The 24060 CACK30/C3W33 is a double-row spherical roller bearing with a 300mm bore and 460mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 614852 lbf and runs smoothly at speeds up to 1200 RPM.

Its brass cage ensures durability, while the tapered bore design allows for secure fitting. The bearing operates in temperatures from -30°C to 200°C, making it suitable for demanding environments.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Ideal for heavy machinery like crushers or industrial gearboxes where high radial and axial loads are present.

Weighing 97kg, it’s a robust choice for large-scale applications. Compliant with RoHS and REACH standards, it requires regular lubrication for optimal performance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 24060 CACK30/C3W33
  • Brand TFL
  • Interchangeable SKF
  • Size 300 x 460 x 160 mm
  • Bore Dia 300 mm
  • Bore Dia Tolerance +0.035mm to 0
  • Outer Dia 460 mm
  • Outer Dia Tolerance -0.045mm to 0
  • Width 160 mm
  • Width Tolerance -0.1mm to 0
  • Shoulder Dia Of Inner Ring 344 mm
  • Shoulder/Recess Dia Of Outer Ring 400 mm
  • Width Of Lubrication Groove 13.9 mm
  • Diameter Of Lubrication Hole 7.5 mm
  • Chamfer Dimension min.4 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Taper 1:30
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 614852 lbf
  • Static Radial Load 101164 lbf
  • Max Speed 1200 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 97 kg
  • Price （US$） US$3,878.88

Features

Performance Features of 24060 CACK30/C3W33 Bearing

24060 CACK30/C3W33 Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 614852 lbf, making it suitable for heavy-duty applications.

The brass cage ensures smooth roller movement, reducing friction and enhancing durability.
With a maximum speed of 1200 rpm, it delivers reliable performance under demanding conditions.

24060 CACK30/C3W33 Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its tapered bore design simplifies installation, ensuring a secure fit and reducing maintenance needs.

The double-row spherical roller construction allows for slight misalignment, improving operational flexibility.
Lubrication grooves and holes ensure consistent lubrication, extending the bearing’s service life.

Application

Key Fields for 24060 CACK30/C3W33 Bearing
The 24060 CACK30/C3W33 Bearing is widely used in heavy machinery, such as mining equipment and large-scale conveyors, where its double-row design handles significant radial and axial loads.
Its brass cage and chrome steel construction ensure durability in harsh environments, making it a reliable choice for industrial applications.

What Makes 24060 CACK30/C3W33 Bearing a Preferred Choice?
In wind turbines, 24060 CACK30/C3W33 Bearing excels due to its ability to withstand variable loads and high speeds, ensuring consistent performance.
The tapered bore design simplifies installation, while the C3 radial clearance accommodates thermal expansion in demanding conditions.

Built for Heavy-Duty Use: 24060 CACK30/C3W33 Bearing
For steel mills and paper processing plants, 24060 CACK30/C3W33 Bearing offers robust support under extreme temperatures and heavy loads.
The open seal type allows for easy lubrication, extending the bearing’s service life in continuous operation scenarios.

Automotive vs Aerospace: Applications of 24060 CACK30/C3W33 Bearing
In large commercial vehicles, 24060 CACK30/C3W33 Bearing provides stability for drivetrains and axles, handling combined loads efficiently.
While less common in aerospace, its high-temperature tolerance makes it suitable for certain ground support equipment.

Industrial Uses of 24060 CACK30/C3W33 Bearing
The 24060 CACK30/C3W33 Bearing is ideal for crushers and pulverisers in the construction sector, where impact resistance is crucial.
Its metric dimensions and compatibility with SKF models make it a versatile option for global machinery standards.
