TS (Single Row Tapered Roller Bearings) (Imperial) 467-453X

TS (Single Row Tapered Roller Bearings) (Imperial) 467-453X

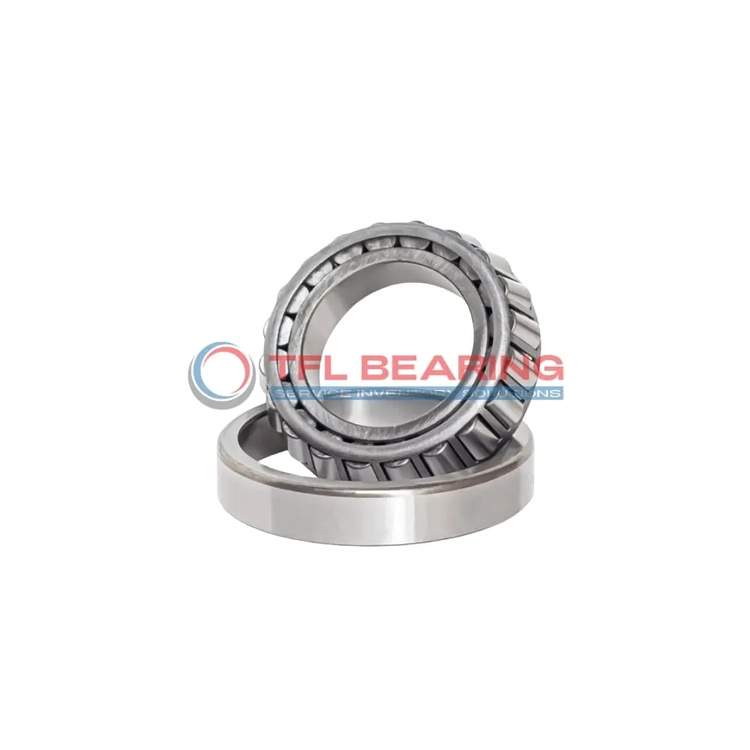

The 467-453X is a single-row tapered roller bearing with a 1.875″ bore and 4.125″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 36100 lbf radially and 5380 lbf thrust, suitable for demanding applications.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, making it versatile for various conditions.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for heavy-duty machinery or automotive systems where combined loads are common.

Weighing 2.7 lb, it balances strength and manageability. Compliant with RoHS and REACH standards, it’s a safe choice for industrial use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 467-453X
  • Brand TFL
  • Interchangeable Timken
  • Size 1.875" x 4.125" x 1.1876"
  • Bore Dia 1.875"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.125"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.1542"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.9687"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.1876"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.03"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 2.2"
  • Cone Backface Backing Diameter 2.24"
  • Cup Frontface Backing Diameter 3.90"
  • Cup Backface Backing Diameter 3.62"
  • Cage Cone Frontface Clearance 0.08"
  • Cage Cone Backface Clearance 0.07"
  • Effective Center Location -0.28"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 467
  • Cup Part Number 453X
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 455
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 36100 lbf
  • Static Radial Load 37200 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 9370 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 5380 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 2.700 lb

Features

How Is 467-453X Bearing Engineered for Reliability?

467-453X Bearing features chrome steel rings and rollers, ensuring strength and durability under combined loads.
Its dynamic radial load capacity reaches 36,100 lbf, making it suitable for heavy-duty applications.
The steel cage maintains roller alignment, reducing friction and extending operational life.
With a standard radial clearance, it offers reliable performance across various conditions.

What Makes 467-453X Bearing Suitable for High-Temperature Applications?

467-453X Bearing operates effectively in temperatures ranging from -30° to 110°C, maintaining performance in demanding environments.
The chrome steel construction resists wear and provides stability under thermal stress.
Its open design allows for easy lubrication, ensuring smooth operation even in high-heat conditions.
This makes it a dependable choice for industrial and automotive applications.

Designed for Durability: 467-453X Bearing

467-453X Bearing’s single-row tapered roller design handles both radial and thrust loads efficiently.
The precise cone and cup dimensions ensure proper fit and alignment, reducing premature wear.
Its chrome steel components enhance longevity, even in rigorous operating conditions.
With a static radial load capacity of 37,200 lbf, it delivers consistent performance over time.

Application

Industrial Uses of 467-453X Bearing
The 467-453X Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined loads efficiently. Its chrome steel construction ensures durability even in demanding environments.

Where Is 467-453X Bearing Used?
You’ll often find 467-453X Bearing in automotive applications, particularly in wheel hubs and differential systems. Its inch sizing makes it a reliable choice for older or custom-built vehicles.

Built for Heavy-Duty Use: 467-453X Bearing
In conveyor systems, 467-453X Bearing provides smooth operation under high radial and thrust loads. The open design allows for easy lubrication, extending its service life.

Automotive vs Aerospace: Applications of 467-453X Bearing
While 467-453X Bearing is popular in truck axles and industrial gearboxes, its precision also suits aerospace landing gear components. The steel cage adds stability during high-stress operations.

Key Fields for 467-453X Bearing
For mining equipment, 467-453X Bearing’s robust design handles extreme loads and vibrations. The standard radial clearance ensures consistent performance in harsh conditions.
