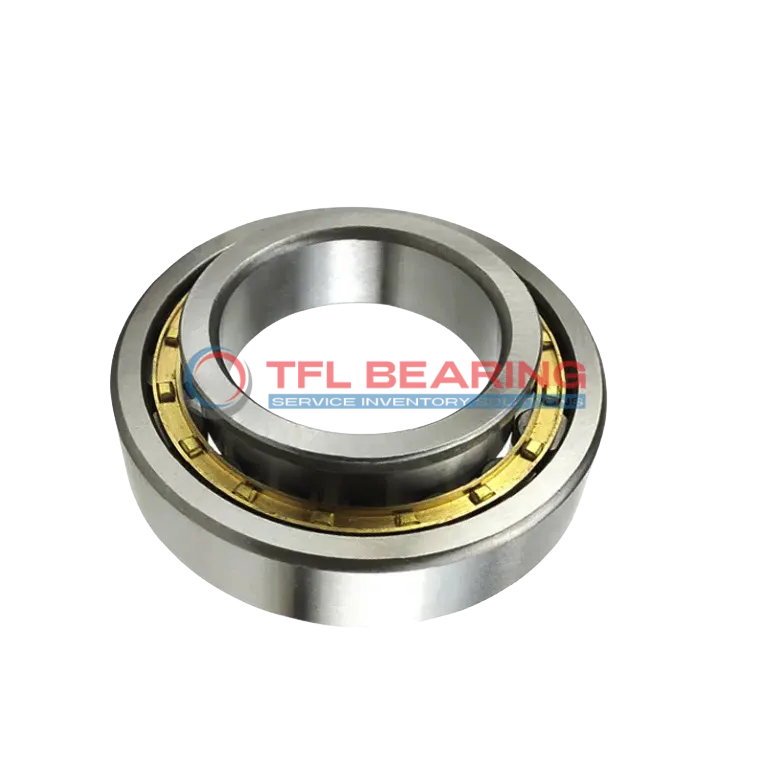

Single Row Cylindrical Roller Bearings With Inner Ring NU 218 ECM

Brand: TFL Bearing Interchangeable: SKF NU 218 ECM 90 mm × 160 mm × 30 mm Metric Open
Part number: NU 218 ECM
Single Row Cylindrical Roller Bearings With Inner Ring NU 218 ECM
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia90 mm
Bore Dia Tolerance-0.02mm to 0
Outer Dia160 mm
Outer Dia Tolerance-0.025mm to 0
Width30 mm
Width Tolerance-0.20mm to 0
Chamfer Dimension r1,2(min.)2 mm
Chamfer Dimension r3,4(min.)2 mm
Shoulder Dia Of Outer Ring138.45 mm
Raceway Diameter Of Inner Ring107 mm
Performance
Dynamic Radial Load46,800 lbf
Static Radial Load49,500 lbf
Temperature Range-30° to 110 °C
Max Speed5,000 rpm
Characteristics
Permissible Axial Displacement(max.)1.8 mm
System of MeasurementMetric
Roller Bearing TypeCylindrical
For Load DirectionCombined
ConstructionSingle Row
Inner Ring TypeWith Inner Ring
Seal TypeOpen
LubricationGrease, Oil
Weight2.73 kg
Material
Ring MaterialChrome Steel
Roller MaterialChrome Steel
Cage MaterialBrass cage, roller centred
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The NU 218 ECM is a single row cylindrical roller bearing with a 90mm bore and 160mm outer diameter, crafted from durable chrome steel. It handles combined loads up to 46800 lbf and operates smoothly at speeds up to 5000 RPM.

Its brass cage design ensures reliable performance, while the open structure allows for easy lubrication with grease or oil. The bearing works efficiently in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial gearboxes or machinery where radial and axial loads are present.

Weighing 2.73kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Features

Performance Features of NU 218 ECM Bearing

NU 218 ECM Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 46,800 lbf, ensuring reliable performance in demanding conditions.

The brass cage keeps the rollers centred, reducing friction and extending service life.
With a maximum speed of 5,000 rpm, it balances durability and efficiency for various applications.

NU 218 ECM Bearing operates smoothly in temperatures ranging from -30° to 110°C.
Its open design allows for easy lubrication with grease or oil, reducing maintenance needs.

Application

Industrial Uses of NU 218 ECM Bearing
NU 218 ECM Bearing is commonly used in heavy machinery like conveyor systems and industrial fans, where its cylindrical roller design handles combined loads efficiently. The brass cage ensures smooth rotation even at high speeds, making it reliable for continuous operation.

Where Is NU 218 ECM Bearing Used?
In automotive applications, NU 218 ECM Bearing supports gearboxes and drivetrains, thanks to its high dynamic radial load capacity. Its chrome steel construction also provides durability under demanding conditions.

Perfect Fit for Automation: NU 218 ECM Bearing
NU 218 ECM Bearing works well in robotic arms and automated production lines, where precision and low friction are key. The open seal design allows for easy lubrication, extending its service life.

Medical vs Industrial: Where NU 218 ECM Bearing Excels
While NU 218 ECM Bearing is robust enough for industrial presses, its precision also suits medical imaging equipment. The temperature range ensures stable performance in various environments.

Essential Roles of NU 218 ECM Bearing
NU 218 ECM Bearing is a go-to choice for wind turbines, handling radial loads with ease. Its brass cage and chrome steel rollers offer a balance of strength and smooth operation.
