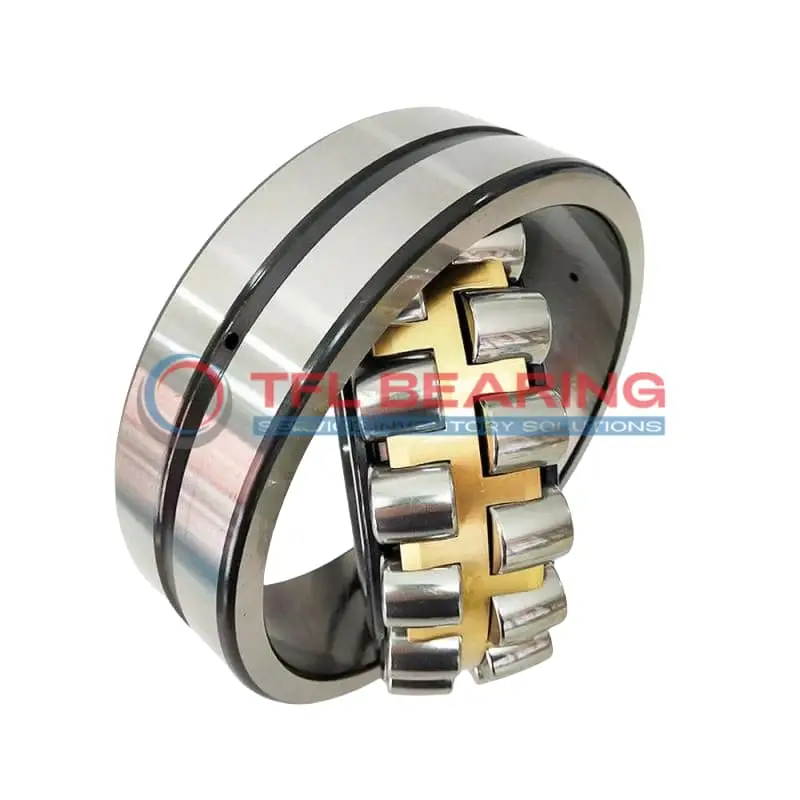

230/560 CA/C3W33 Double Row Spherical Roller Bearing

230/560 CA/C3W33 Double Row Spherical Roller Bearing

The 230/560 CA/C3W33 is a double-row spherical roller bearing with a large 560mm bore and 820mm outer diameter, built from tough chrome steel. It handles combined loads up to 1,299,171 lbf and runs smoothly at speeds up to 750 RPM.

Its brass cage and spherical rollers provide durability, while the C3 radial clearance allows for thermal expansion. The open design requires regular lubrication, with grooves and holes for easy maintenance.

This bearing suits heavy-duty applications like industrial gearboxes or mining equipment, where high radial loads are common. It operates in temperatures from -30°C to 200°C.

Weighing 350kg, it’s a robust choice for demanding environments. Compliant with RoHS and REACH standards, it’s interchangeable with SKF models for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 230/560 CA/C3W33
  • Brand TFL
  • Interchangeable SKF
  • Size 560 x 820 x 195 mm
  • Bore Dia 560 mm
  • Bore Dia Tolerance -0.05mm to 0
  • Outer Dia 820 mm
  • Outer Dia Tolerance -0.1mm to 0
  • Width 195 mm
  • Width Tolerance -0.5mm to 0
  • Shoulder Dia Of Inner Ring 646 mm
  • Shoulder/Recess Dia Of Outer Ring 746 mm
  • Width Of Lubrication Groove 22.3 mm
  • Diameter Of Lubrication Hole 12 mm
  • Chamfer Dimension min.6 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 1299171 lbf
  • Static Radial Load 2293051 lbf
  • Max Speed 750 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 350 kg
  • Price （US$） US$9,867.50

Features

Performance Features of 230/560 CA/C3W33 Bearing

230/560 CA/C3W33 Bearing is built with chrome steel rings and rollers, offering robust resistance to combined loads.
Its dynamic radial load capacity reaches 1,299,171 lbf, making it suitable for heavy-duty industrial applications.
The brass cage ensures smooth roller movement, enhancing durability and reducing friction.

How Is 230/560 CA/C3W33 Bearing Engineered for Reliability?

230/560 CA/C3W33 Bearing features a double-row spherical roller design, accommodating misalignment and heavy loads.
With a static radial load capacity of 2,293,051 lbf, it delivers reliable performance in demanding conditions.
The C3 radial clearance allows for thermal expansion, ensuring stable operation at high temperatures.

Built for Durability: 230/560 CA/C3W33 Bearing

230/560 CA/C3W33 Bearing’s chrome steel construction resists wear, extending its service life in harsh environments.
The lubrication groove and holes ensure consistent oil distribution, reducing maintenance needs.
Its temperature range of -30° to 200°C makes it versatile for various industrial applications.

Steel vs Ceramic Bearings: Strengths of 230/560 CA/C3W33 Bearing

230/560 CA/C3W33 Bearing uses chrome steel for both rings and rollers, providing high strength and durability.
The brass cage enhances smooth operation, making it a reliable choice for heavy machinery.
With a maximum speed of 750 rpm, it balances performance and longevity in demanding settings.

Application

Industrial Uses of 230/560 CA/C3W33 Bearing
230/560 CA/C3W33 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles high radial and axial loads. The brass cage ensures smooth operation even under demanding conditions.

In wind turbines, 230/560 CA/C3W33 Bearing supports the main shaft, offering reliability in variable weather conditions. Its C3 radial clearance allows for thermal expansion, making it suitable for large-scale energy applications.

For mining equipment, 230/560 CA/C3W33 Bearing’s chrome steel construction withstands extreme loads and harsh environments. The lubrication groove design simplifies maintenance, reducing downtime in critical operations.

What Makes 230/560 CA/C3W33 Bearing a Preferred Choice?
230/560 CA/C3W33 Bearing excels in paper mill machinery, where its spherical rollers compensate for misalignment. The high static load capacity ensures long service life in continuous production lines.

In steel plants, 230/560 CA/C3W33 Bearing handles the intense heat and heavy loads of rolling mills. Its temperature range up to 200°C makes it a dependable choice for such challenging environments.

Built for Heavy-Duty Use: 230/560 CA/C3W33 Bearing
230/560 CA/C3W33 Bearing is ideal for large pumps and compressors, where its combined load capacity ensures stable performance. The metric dimensions make it easy to integrate into various industrial systems.

For marine applications, 230/560 CA/C3W33 Bearing’s corrosion-resistant materials and robust design handle the demands of ship propulsion systems. Its open seal type allows for custom lubrication solutions.

Automotive vs Aerospace: Applications of 230/560 CA/C3W33 Bearing
In automotive testing rigs, 230/560 CA/C3W33 Bearing supports high-load simulations with precision. Its dynamic radial load capacity ensures accurate results under rigorous conditions.

For aerospace ground equipment, 230/560 CA/C3W33 Bearing’s reliability is crucial in maintenance platforms. The brass cage reduces friction, enhancing performance in critical support systems.
