TS (Single Row Tapered Roller Bearings) (Imperial) 365A-362

TS (Single Row Tapered Roller Bearings) (Imperial) 365A-362

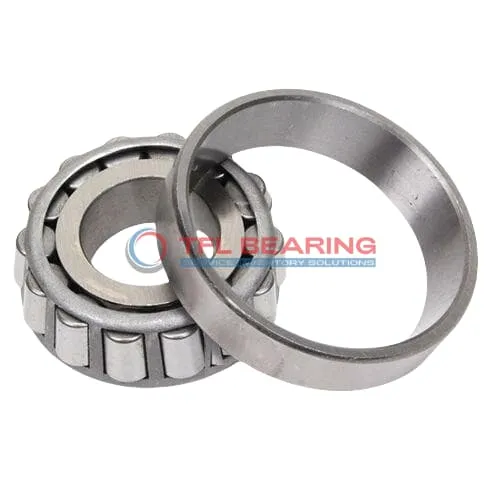

The 365A-362 is a single-row tapered roller bearing with a 1.625″ bore and 3.5433″ outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 22900 lbf radially and 3250 lbf thrust, suitable for demanding applications.

Its open design simplifies lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable alternative for replacements. Ideal for heavy-duty machinery like gearboxes or wheel hubs where combined loads are common.

Weighing 1.400 lb, it balances strength and practicality. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

The standard radial clearance allows for flexibility, with options for C3, C4, or C5 configurations. Its ABEC-1 rating ensures consistent performance for general industrial use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 365A-362
  • Brand TFL
  • Interchangeable Timken
  • Size 1.625" x 3.5433" x 0.7874"
  • Bore Dia 1.625"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 3.5433"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.875"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.625"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.7874"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.08"
  • Cone Frontface Backing Diameter 1.91"
  • Cone Backface Backing Diameter 2.17"
  • Cup Frontface Backing Diameter 3.34"
  • Cup Backface Backing Diameter 3.19"
  • Cage Cone Frontface Clearance 0.07"
  • Cage Cone Backface Clearance 0"
  • Effective Center Location -0.17"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 365A
  • Cup Part Number 362
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 365
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 22900 lbf
  • Static Radial Load 21500 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 5930 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 3250 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 1.400 lb

Features

Performance Features of 365A-362 Bearing

365A-362 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 22,900 lbf, making it suitable for heavy-duty applications.

The steel cage ensures proper roller alignment, reducing friction and wear.
With a standard radial clearance, it provides reliable performance in various conditions.

365A-362 Bearing operates efficiently within a temperature range of -30° to 110°C.
Its tapered roller design ensures smooth operation even under high radial and thrust loads.

The open seal type allows for easy lubrication, extending the bearing’s service life.
Weighing just 1.400 lb, it balances durability and ease of handling.

Application

Industrial Uses of 365A-362 Bearing
365A-362 Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

In automotive applications, 365A-362 Bearing fits well in wheel hubs and differential systems, providing reliable performance under radial and thrust loads. Its inch sizing makes it a preferred choice for American and British vehicle models.

For industrial conveyor systems, 365A-362 Bearing’s open design allows for easy lubrication, extending service life in high-load scenarios. The steel cage adds stability, reducing wear during continuous operation.

Where Is 365A-362 Bearing Used?
You’ll often find 365A-362 Bearing in mining equipment, where its robust design handles harsh conditions. The tapered rollers distribute loads evenly, reducing stress on components.

In manufacturing plants, 365A-362 Bearing supports machinery like presses and rollers, ensuring smooth operation. Its standard radial clearance makes it versatile for various industrial needs.

Built for Heavy-Duty Use: 365A-362 Bearing
365A-362 Bearing excels in applications like gearboxes and drivetrains, where combined loads are common. The chrome steel rollers and rings provide long-lasting performance.

Its open design simplifies maintenance, making it a practical choice for equipment requiring frequent lubrication. The ABEC-1 rating ensures consistent quality for general industrial use.

Automotive vs Aerospace: Applications of 365A-362 Bearing
In automotive systems, 365A-362 Bearing is ideal for wheel hubs, offering reliable load handling. The inch sizing ensures compatibility with many vehicle designs.

For aerospace ground equipment, 365A-362 Bearing supports heavy loads in maintenance tools. Its temperature range suits various operational conditions.
